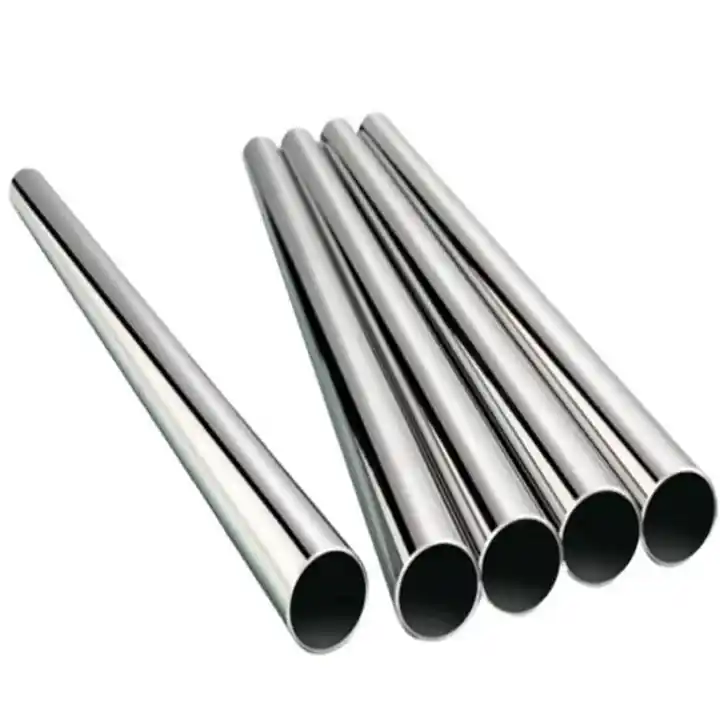

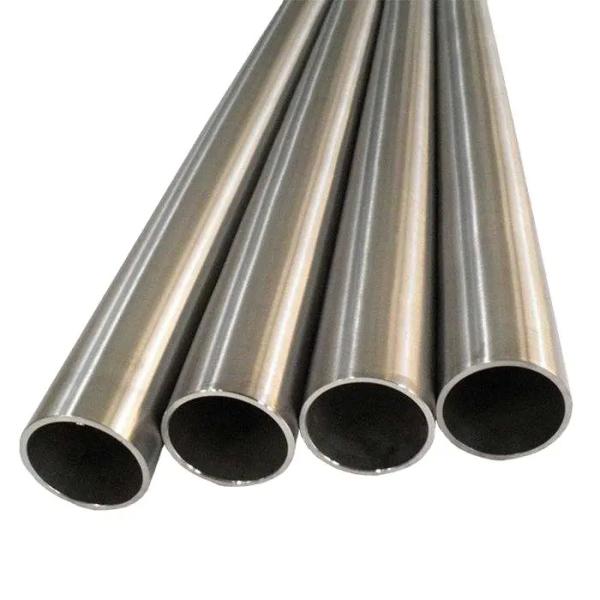

Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
Specifications
Brand Name :
TOBO
Method :
Hot rolled
Technique :
Cold Drawn, Hot Rolled
Model :
A182 F53
Corrosionresistance :
High resistance to seawater corrosion
Supply Ability :
10Ton/Month
Payment Terms :
T/T, Western Union
Connection :
Threaded
Place of Origin :
Shanghai,China
Size :
Custom Size
Keyword :
Copper Pipes Fittings
Quality Grade :
The real thing
Model Number :
Copper Nickel Pipe
Technics :
Casting
Certification :
ISO/TUV/SGS
Price :
Negotiable
Delivery Time :
15-30 Workdays
Joiningmethods :
Brazing, welding, flanging
Product name :
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
MOQ :
1PC
Packing :
Pallet, Wooden Case
Packaging Details :
Standard Shipping Package
Pressurerating :
Up to 3000 psi depending on specification
Surface :
polished
Diameter :
1/2 Inch - 24 Inch
Pressure :
300/600/900
Description

Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube

1.Product Description

Copper-nickel pipe is a corrosion-resistant tube manufactured from a copper-nickel-iron alloy system. It is produced by either cold-drawing seamless billets or roll-forming and welding strip. The material naturally forms a protective, adherent oxide film when exposed to clean seawater, which gives it exceptional service life. This pipe is available in both annealed (soft) and drawn (hard) tempers to suit different fabrication needs.

2.Product Functions

  • Pressure containment at elevated temperatures – Operating pressure rating follows ASME B31.1 for power piping.

  • Sacrificial layer formation – The outer oxide layer self-repairs if mechanically damaged in oxidizing water.

  • Resistance to hydrogen grooving – Suitable for sour service (wet H₂S) with proper pH control.

  • Galvanic compatibility – When coupled with noble metals (titanium, Monel), galvanic current is minimal.

3.Product Applications

  • Power plant cooling systems: Secondary cooling loops and auxiliary cooling water.

  • Subsea oil & gas: Hydraulic control lines and chemical injection tubing.

  • Desalination: Multi-stage flash (MSF) and reverse osmosis (RO) pretreatment piping.

  • Ship repair and retrofit: Replacement of corroded steel pipes in older vessels.

  • Brewing and food processing: Heat exchanger tubing for wort cooling (non-toxic, non-tarnishing).

​Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube

​4.Key Product Parameters

Parameter 90/10 Cu-Ni (C70600) 70/30 Cu-Ni (C71500)
Nickel content 9.0 – 11.0% 29.0 – 33.0%
Iron content 1.0 – 1.8% 0.4 – 1.0%
Manganese content 1.0% max 1.0% max
Carbon content 0.05% max 0.05% max
Lead content 0.02% max 0.02% max
OD tolerance (seamless) ±0.1 mm for OD ≤ 50 mm ±0.1 mm
WT tolerance ±10% of nominal ±10% of nominal
Straightness 1.0 mm per 3 m length 0.8 mm per 3 m length
Thermal conductivity (at 20°C) 45 W/m·K 29 W/m·K
Coefficient of thermal expansion 17.0 × 10⁻⁶ /K 16.2 × 10⁻⁶ /K


FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
