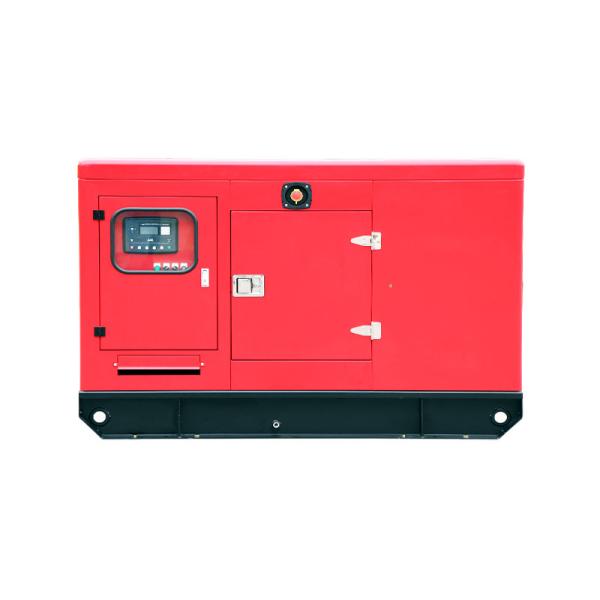

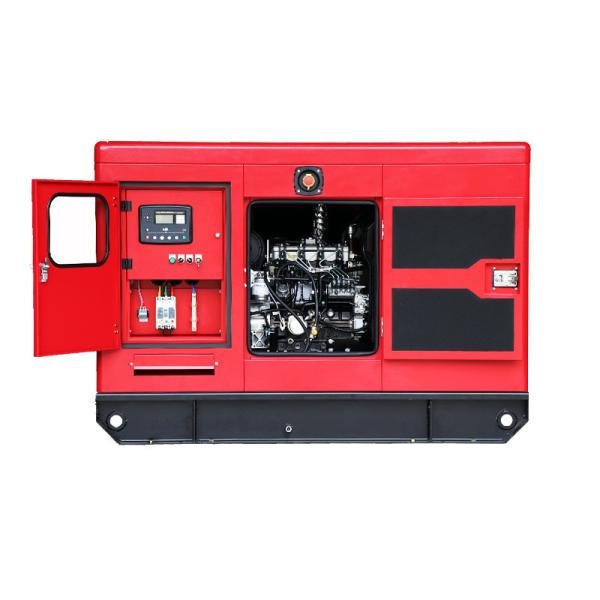

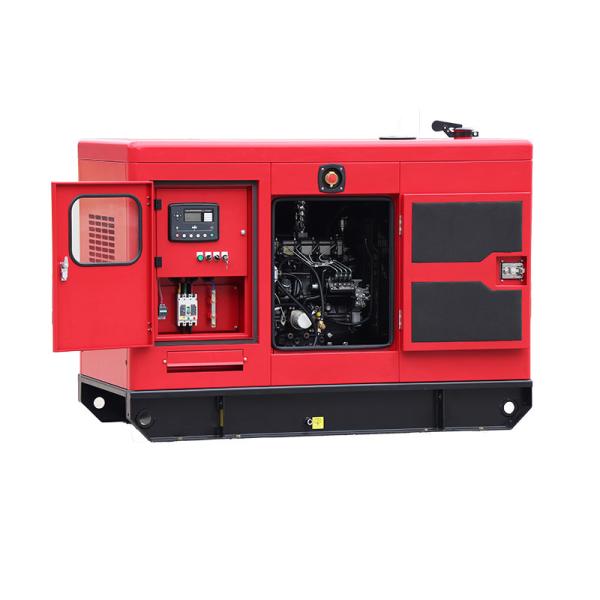

IP23 20KW 3 Phase Super Silent AC Diesel Generator
IP23 20KW 3 Phase Super Silent AC Diesel Generator
IP23 20KW 3 Phase Super Silent AC Diesel Generator
IP23 20KW 3 Phase Super Silent AC Diesel Generator
IP23 20KW 3 Phase Super Silent AC Diesel Generator
IP23 20KW 3 Phase Super Silent AC Diesel Generator
Specifications
Brand Name :
Ai Power
Model Number :
A10-A50
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 units per month
Delivery Time :
30 to 35 days
Packaging Details :
Foam & plastic
Frequency :
50 Hz/ 60 Hz
Rated voltage :
400/230V, 380V/220V
Warranty :
1 Year or 1000 hours
Options :
Silent canopy/trailer/ATS
Rated current :
220-480A
Output type :
AC Single Phase/Three Phase
Protection class :
IP23
Engine brand :
Cummins, Perkins, Deutz generator
Description

20 kw 3 Phase AC Chinese Diesel Generator Super silent diesel generator

Cummins Power Generation has looked beyond today’s challenges, helping our customers meet their future needs by developing the next generation of power. It takes a globally integrated culture of knowledge, know-how and innovation to ensure this next generation of power is Always On. Our comprehensive portfolio delivers centralized as well as distributed energy solutions for your unique power need—commercial, industrial, marine, mining, recreational, emergency and residential.

Generator Specifications:

Diesel generator Details
Model AYD28
Power 20kw/25kva
Frequency 50Hz/60Hz
Voltage 380/220v(voltage can be customized)
Optional Type Open/soundproof/trailer
Size of Open type 1320*850*1050mm
Weight of Open type 490kg
With Diesel Engine
Brand&model with YangDong engine YSD490D
Standby Power 21kw
Cylinders 4 in line arrangement
Bore*Stroke 80*90mm
Displacement 1.357L
Lubrication Oil Capacity 10L
Fuel Consumption at 100% Load 205g/kw.h
Speed Governor Mechanical
With Alternator
Optional Brands Stamford/Leroy Somer/Mecc Alte/Marathon
Exciter type Single bearing,brushless,Self-excited
Power factor 0.8
Voltage adjust range ≥5%
Insulation Grade H
Protection Grade IP23
With Controller
Optional brands Deepsea/ComAp/Smartgen





Product Details
IP23 20KW 3 Phase Super Silent AC Diesel GeneratorIP23 20KW 3 Phase Super Silent AC Diesel GeneratorIP23 20KW 3 Phase Super Silent AC Diesel GeneratorIP23 20KW 3 Phase Super Silent AC Diesel Generator

Open Type.

● Famous brand engine couple with high quality alternator
● Large size cooling radiator
● Heavy duty steel base frame
● Strong anti-vibration mat
● Standard free maintenance battery
● AC alternator for battery charger
● Heavy-duty air filter, oil filter, water filter
● Famous brand controller and breaker
● Optional fuel tank, silent canopy, ATS, synchronization panels.


1. What is your warranty period?

A: It’s 1 year or 1000 running hours whichever comes first. But based on some special project, we can extend our warranty period.

2. Can you accept OEM?

A. Yes, we can accept OEM.

3. What’s your payment term?

A: We can accept T/T 30% in advance and the balance 70% shall be paid before shipment or LC at sight.

4. What’s your delivery time?

A: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
