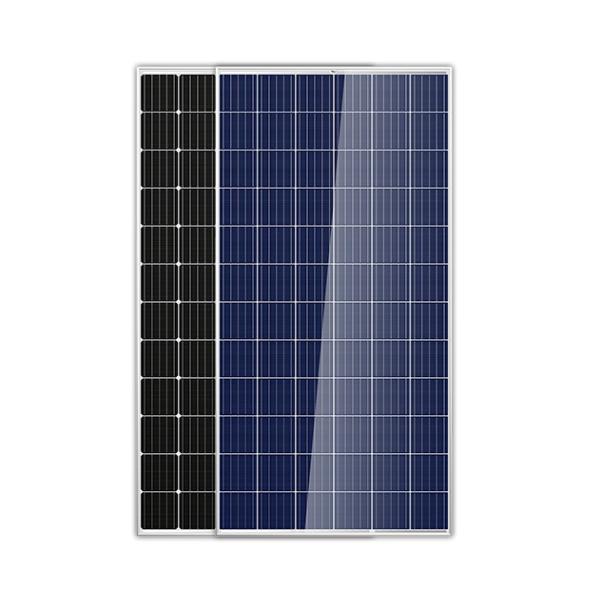

360W Mono Solar Panel Solar Module Polycrystal Pv Solar Panel
360W Mono Solar Panel Solar Module Polycrystal Pv Solar Panel
360W Mono Solar Panel Solar Module Polycrystal Pv Solar Panel
360W Mono Solar Panel Solar Module Polycrystal Pv Solar Panel
360W Mono Solar Panel Solar Module Polycrystal Pv Solar Panel
360W Mono Solar Panel Solar Module Polycrystal Pv Solar Panel
Specifications
Brand Name :
Ai Power
Model Number :
ASP
Certification :
ISO, CE, SONCAP
Place of Origin :
China
MOQ :
10
Price :
USD60 to USD200 per unit
Supply Ability :
1000 sets per month
Delivery Time :
2-4weeks
Packaging Details :
carton
Brand Name: :
Ai Power
Battery Type: :
Lead-Acid
Mounting Type: :
Ground Mounting, Roof Mounting
Output Frequency: :
50~60HZ
Output Voltage (V): :
110v/220v
Solar Panel Type: :
Monocrystalline Silicon, Polycrystalline Silicon
Controller Type: :
MPPT Solar Controller
Certificate: :
ISO, CE, ROHS
Description

360W Mono Solar Panel Solar Module Polycrystal Pv Solar Panel

High efficiency

High module conversion efficiency up to 17% through innovative manufacturing technology. Manufacturing

with CE standard, could widely used in solar power station, building, solar street lighting, traffic. etc.

Solar panel is made up of high quality solar cell with high effciency and transmission rate, low iron tempered

glass, anti-aging EVA, high flame resistant TPT and anodized aluminum alloy.

Electrical Characteristics
STC (Irradiance 1,000W/m2, module temperature 25℃, AM=1.5) OL300M-10 OL320M-10 OL340M-10 OL360M-10
Rated Power (Pmax) 300W 320W 340W 360W
Voltage at Pmax (Vmp) 35.1V 35.6V 36.1V 37.4V
Current at Pmax (Imp) 8.32A 8.89A 9.41A 9.62A
Warranted Minimum Pmax 300W 320W 340W 360W
Short-Circuit Current (Isc) 8.6A 9.50A 10.14A 10.27A
Open-Circuit Voltage (Voc) 43.5V 43.7V 44.9V 44.6V
Module Efficiency 17.45% 17.75% 18.06% 18.37%
Operating Module Temperature -40℃ to + 85℃
Maximum System Voltage 1,000V(IEC) / 1,000V(UL)
Maximum Series Fuse Rating 15A
Maximum Reverse Current 20.25A
Power Tolerance 0 ~ +5 W

Payment & Shipping

Payment Term

T/T

 EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C L/C amount above 50,000 usd, we can accept L/C at sight
PayPal

Amount lower than 3000usd
PayPal
Delivery Time 17~20days after receiving payment for one container

WHY CHOOSE US?

1. Excellent efficiency, Easy Installation & Maintenance

2. Outstanding performance in Low-Light

3. High transparent, Low-Iron, Tempered Glass

4. Ability to withstand High Wind-Pressure and Snow-Load

5. Advanced module sealing technology to eliminate leakage and frame deformation

6. Ability to meet customized customer's specific requirements
