Specifications
Brand Name :
YANMAR
Model Number :
YANMAR 4TNV84T-GGE
Place of Origin :
China
MOQ :
1
Price :
USD 300-860
Payment Terms :
L/C, T/T, D/P
Supply Ability :
500PCS Per Month
Delivery Time :
30 work days
Packaging Details :
190*85*105cm
Description
Low Noise 16kw 20kva YANMAR 4TNV84T-GGE Diesel Generator

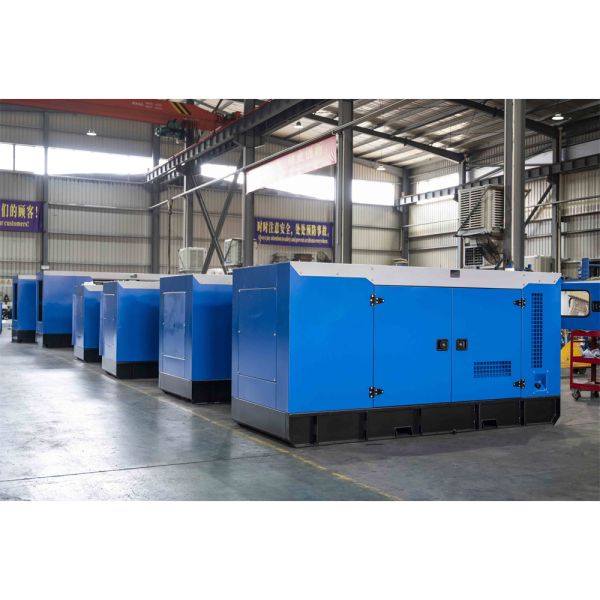

Our YANMAR 4TNV84T-GGE Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANMAR engine, this 16kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
Low Noise 16kw 20kwa YANMAR 4TNV84T-GGE Diesel Generator for Sale Low Noise 16kw 20kwa YANMAR 4TNV84T-GGE Diesel Generator for Sale
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 20 22
Power Rating (kW) 16 18
Frequency (Hz) 50
Engine Model 4TNV84T-GGE
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation.

ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BYN22 (Open Type) BYN22S (Silent Type)
Length (L) mm 1400 1900
Width (W) mm 610 850
Height (H) mm 1150 1050
Tank Capacity (L) 37 37
Engine Specifications
Engine Model & Manufacturer 4TNV84T-GGE (YANMAR)
Engine Type 4 cycle, Inline, Water-cooled Diesel
Number of Cylinders - Bore×Stroke (mm) 4-φ84×90
Combustion System Direct Injection
Compression Ratio 18.9
Displacement (liter) 1.995
Rated Output 21(28.6)/26.8(36.4) kW(PS) at 1500/1800 min⁻¹
Continuous Rating 19.1(26)/24.2(32.9) kW(PS) at 1500/1800 min⁻¹
Specific Fuel Consumption 245(180) g/kW-h(g/PS-h) at rated output
Ambient Condition 25℃, 750mmHg, 30%
Engine Dry Weight (kg) approx. 180
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184ES
Alternator Rated Power 16kw/20kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 Wire
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class

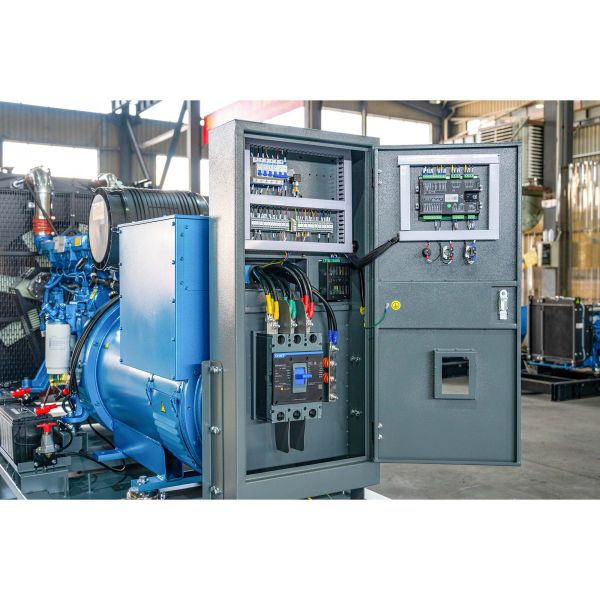

Control Panel - DSE 6120
Low Noise 16kw 20kwa YANMAR 4TNV84T-GGE Diesel Generator for Sale
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously for full visibility
  • Configurable to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
Available Options
Engine
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
Alternator
  • PMG excitation
  • Space heater
  • Winding temperature measuring
Fuel System
  • 12/24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
Generating Set
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine
Low Noise 16kw 20kwa YANMAR 4TNV84T-GGE Diesel Generator for Sale Low Noise 16kw 20kwa YANMAR 4TNV84T-GGE Diesel Generator for Sale
