Specifications
Brand Name :
SDEC
Model Number :
SC4H140D2
Place of Origin :
CHINA
MOQ :
1set
Price :
800-3200USD
Payment Terms :
L/C, T/T
Supply Ability :
50sets per month
Delivery Time :
10work days
Packaging Details :
plywood
Speed :
1500RPM
Frequency :
50/60HZ
Rated power :
5KW to 2000KW
Output type :
AC Three Phase
Type :
Open or Silent(super Silent)
Color :
At your requirement,Customized
Description
High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling
Product Features
  • Equipped with famous Brushless alternator - Leroy Somer, Marathon, BOBIG, Mecc alte
  • Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
  • Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system
  • Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
  • Equipped with high density sound-absorbing material -- sound insulation, fireproofing
  • Generator equipped with 12V/24V DC battery with charger, battery connects wire
  • Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working
  • High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
  • New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency
  • Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
  • Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator
  • All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type
  • Our generator set compliance with all main standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4 standard
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 113 124
Power Rating (kW) 90 99
Frequency (Hz) 50
Engine Model 4HTAA4.3-G23
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230
Fuel tank capacity operating time ≥ 8h @ 75% load
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimension and Weight
Model Open Type (BSD124) Silent Type (BSD124S)
Length (mm) 2200 2650
Width (mm) 800 1040
Height (mm) 1500 1400
Tank capacity (L) 207 207
Note: Specifications and illustrations are subject to revision without notice.
Engine Specifications
Engine Model & Manufacturer 4HTAA4.3-G23 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion type Direct injection
Cylinder Type Dry liner
Number of cylinders 4
Bore × stroke 105 × 124 mm
Displacement 4.3 lit.
Compression ratio 16 : 1
Firing order 1-3-4-2
Fuel injection advance angle 10°BTDC
Dry weight 450 kg
Dimension 1080 × 738 × 1078 mm
Rotation CCW viewed from flywheel
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274D
Alternator Rated Power 90kw/113kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper

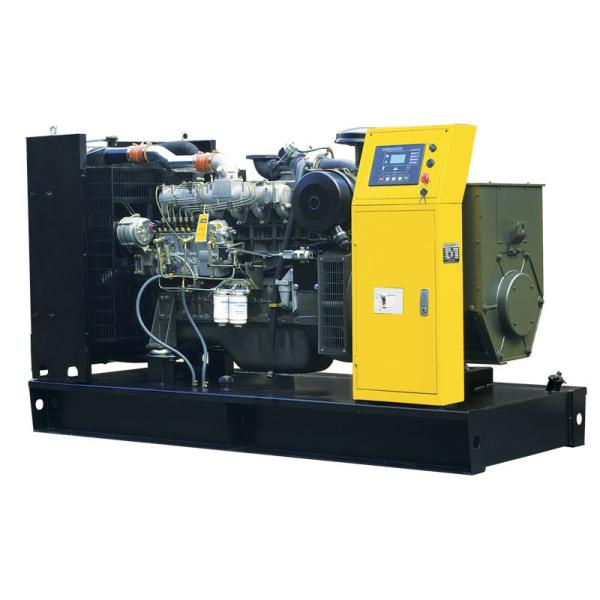

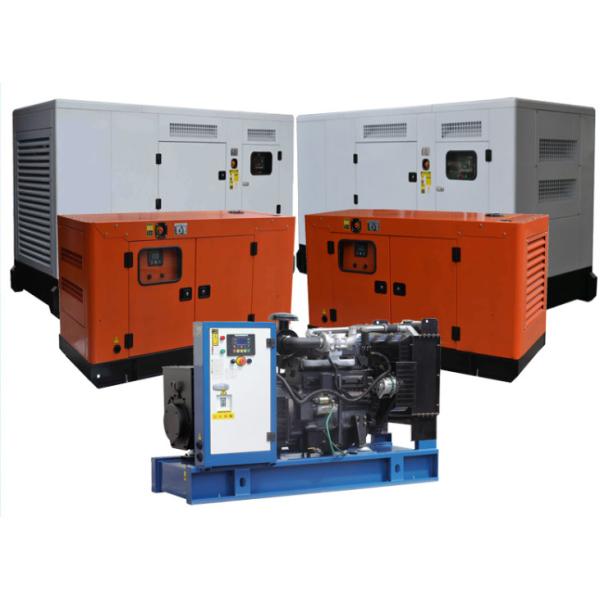

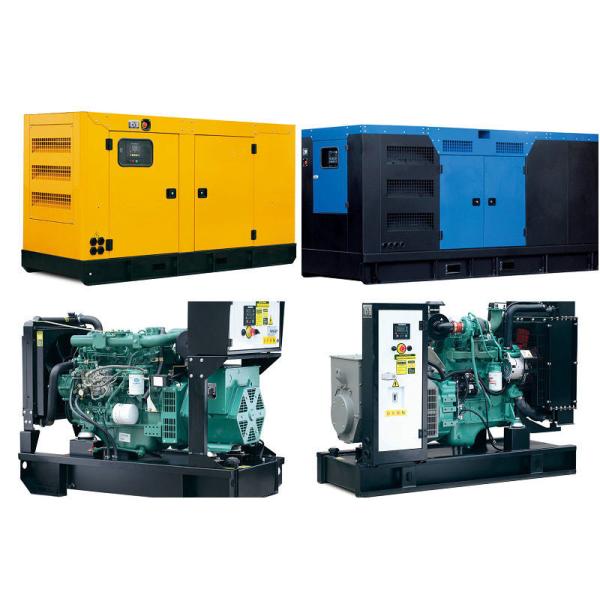

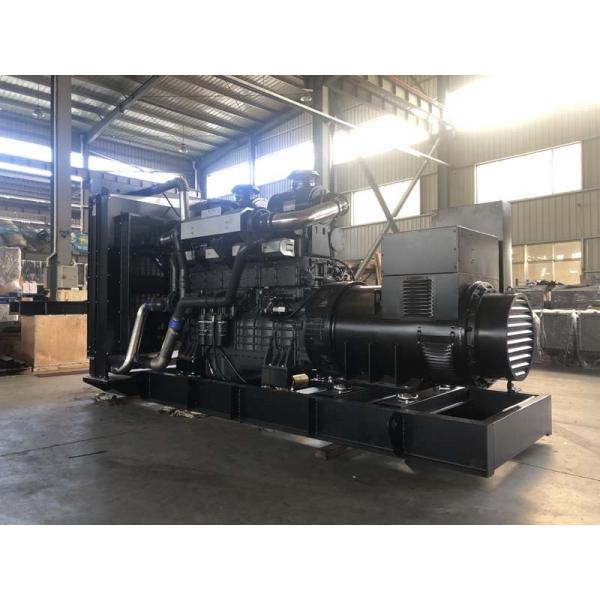

Product Images
High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling High Quality Open/Silent Type SDEC Diesel Generator 90KW/113KVA Backup Power Supply Water Cooling
