Specifications
Brand Name :
Baudouin
Model Number :
16M33G2000/5
Place of Origin :
China
MOQ :
1
Price :
USD 100000-120000
Payment Terms :
L/C, T/T, D/P
Supply Ability :
500PCS Per Month
Delivery Time :
30 work days
Packaging Details :
520*225*255cm
Description
1500KW 1875kVA 3 Phase Diesel Generator
Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz
Our Baudouin 16M33G2000/5 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned Baudouin engine, this 1500kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.
1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz
Power Specifications
SpecificationPrime PowerStandby Power
Rated Power (kVA)18752063
Power Rating (kW)15001650
Frequency (Hz)50
Engine Model16M33G2000/5
Engine Speed (RPM)1500
Phase3
Power Factor (PF)0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity Operating Time≥ 8 hours @ 75% load
PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation.
ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.
Dimensions and Weight
ModelBBDA2063 (Open Type)BBDA2063S (Silent Type)
Length (L) mm5200**
Width (W) mm2250**
Height (H) mm2550**
Tank Capacity (L)3450**

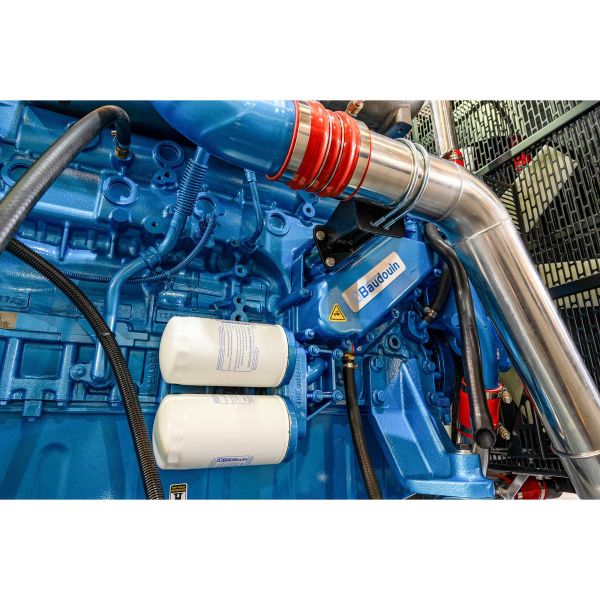

Engine Specifications
Engine Model & Manufacturer16M33G2000/5 (BAUDOUIN)
Number of Cylinders / Valves16 / 64
Cylinders ArrangementVee Configuration
Bore x Stroke (mm)150 x 185
Displacement (L)52.3
Thermodynamic CycleDiesel 4 Stroke
Mean Piston Speed (m/s)9.25
BMEP @ ESP (Bar)27.53
Cooling SystemLiquid (water + 50% antifreeze)
Injection SystemDirect
Fuel SystemHigh Pressure Common Rail
AspirationTurbocharged and Aftercooled
Compression Ratio15:1
Flywheel HousingSAE 0
Flywheel18"
Number of Teeth on Flywheel Ring Gear194
Inertia of Flywheel (kg•m²)7.2
Inertia of Crankshaft (kg•m²)10.1
Emission StandardN/A
Overall Dimensions with Radiator (L x W x H mm)3967 x 2237 x 2485
Engine Dry Weight without Radiator (kg)5200
Engine Dry Weight with Radiator (kg)6450
Engine Wet Weight with Radiator (kg)7151
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-454C
Alternator Rated Power1500kw/1875kva
Rated Voltage (V)230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 Wire
Number of Bearings1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH Class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing
1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz
Key Benefits
  • Automatically transfers between mains (utility) and generator for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously for full visibility
  • Configurable to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet specific application requirements
Key Features
  • 4-line back-lit LCD text display with multiple display languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility with data logging facility
  • Internal PLC editor with protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection and power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs and 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock with manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler with idle control for starting & stopping
  • Fuel level alarms and 3 configurable maintenance alarms
  • Compatible with wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) for increased water resistance
  • Configurable CAN read & transmitted information with 1 alternative configuration
Available Options
EngineAlternatorFuel SystemGenerating Set
Water Jacket PreheaterPMG excitation12/24 hour base tankDeepsea, ComAp, Smartgen controllers
Oil PreheaterSpace heaterBunded fuel tankTrailer
Oil manual pumpWinding temperature measuringExternal fuel tankTools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz1500KW 1875kva 3 Phase diesel Generator Super Silent 1500kw Power Plant Generator for Data Centre 50/60Hz
