Specifications
Brand Name :
ISUZU
Model Number :
YN48ECD90
Place of Origin :
CHINA
MOQ :
1set
Price :
2313-2583USD
Payment Terms :
L/C, T/T
Supply Ability :
50sets per month
Delivery Time :
40work days
Packaging Details :
plywood
Speed :
1500RPM
Frequency :
50/60HZ
Rated power :
5KW to 2000KW
Output type :
AC Three Phase
Type :
Open or Silent(super Silent)
Color :
At your requirement,Customized
Description
ISUZU Diesel Generator 10KW/13KVA - Open/Silent Type
Factory-priced ISUZU diesel generator available in both open and silent configurations with water cooling system. This reliable 10KW/13KVA power supply unit delivers consistent performance for various industrial applications with advanced features and robust construction.
Key Features
  • Premium brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 23 25
Power Rating (kW) 18 20
Frequency (Hz) 50
Engine Model JE493DB-04
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP (Prime Power): Available for unlimited annual hours in variable load applications per GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12-hour operation period.
ESP (Standby Power): Designed for emergency power supply during utility interruptions. No overload, utility parallel, or negotiated outage operation capability at this rating.
Dimensions and Weight
Model BJL25 (Open Type) BJL25S (Silent Type)
Length (mm) 1400 2000
Width (mm) 610 850
Height (mm) 1150 1050
Tank Capacity (L) 41 41
Engine Specifications
Engine Model & Manufacturer JE493DB-04 (ISUZU)
Engine Type Water cooling, in line, four-stroke, wet liner and direct injection machinery or electronic
Number of Cylinders 4
Bore×Stroke (mm) 93×102
Aspiration Natural
Displacement 2.771
Compression Ratio 18.2:1
Firing Order 1-3-4-2
Rated Output (Kw) 21
Maximum Power (Kw) 24
Rated Speed (r/min) 1500
Idling Speed (r/min) 850
Oil Consumption Rate (g/kW.h) ≤230
Overall Dimension (mm) 856×601×810
Net Mass (kg) 230
Steady Speed Adjusting Ratio Machinery ≤5%, Electronic ≤1%
Lubricating Method Pressure lubrication and splash
Starting Method Electric motor start
Crankshaft Rotating Direction Clockwise (from front view)
Oil Sump Capacity (L) 5.6
Oil Specification ≥API CF-4
Oil Pressure (MPa) 0.1－0.50
Noise (dB(A)) ≤93dB(A)
FSN (Rated Output) ＜3.0
Exhaust Temperature (℃) ＜500
Oil Temperature (℃) ＜110
Cooling Water Temperature (℃) 85±10
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-184E
Alternator Rated Power 18kw/23kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Standard Components
  • Heavy duty diesel engine
  • Starter battery (with lead acid) including rack and cables
  • Anti-vibration mount
  • Flexible fuel connection hoses
  • Replaceable fuel filter, oil filter & air filter
  • Exhaust silencer and bellows
  • Cooling radiator and fan
  • Operation manuals and circuit diagram documents
Product Images
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling

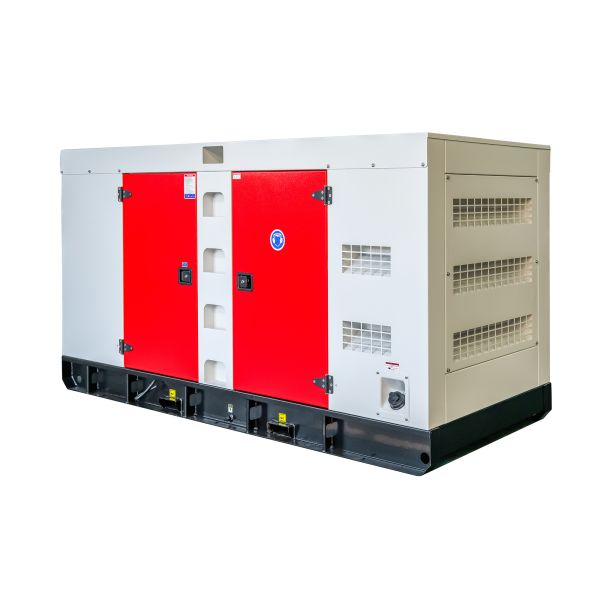

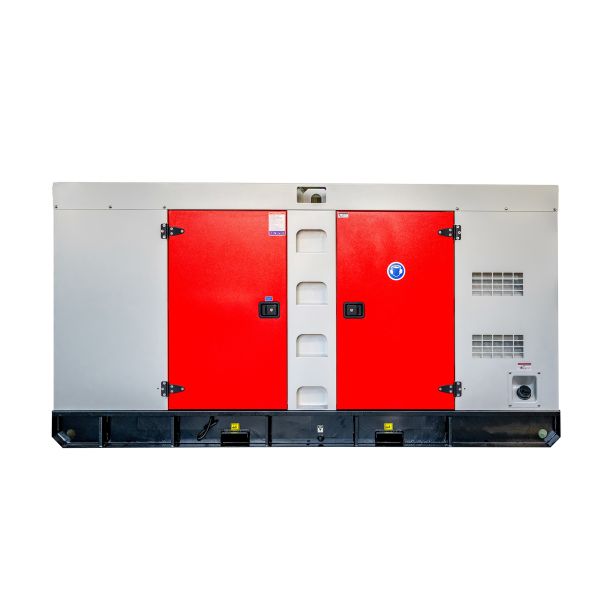

Front View
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling

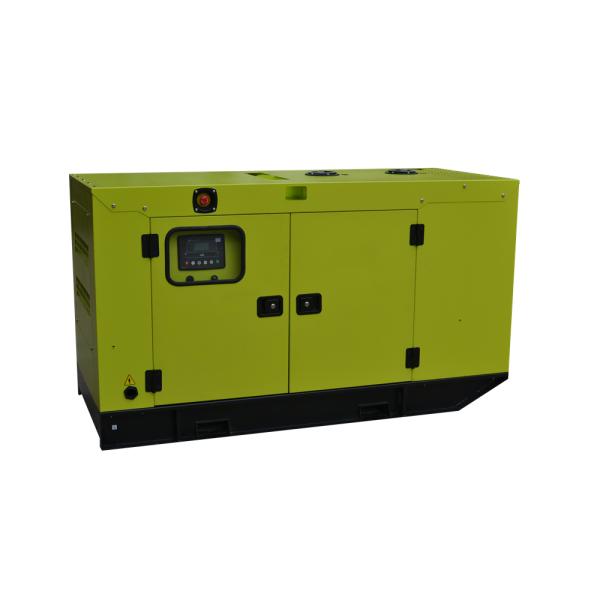

Side View
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Control Panel
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Engine Detail
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Alternator View
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling

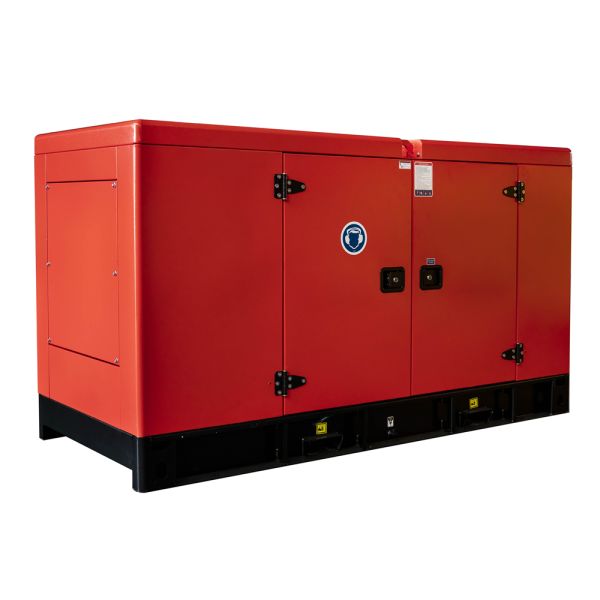

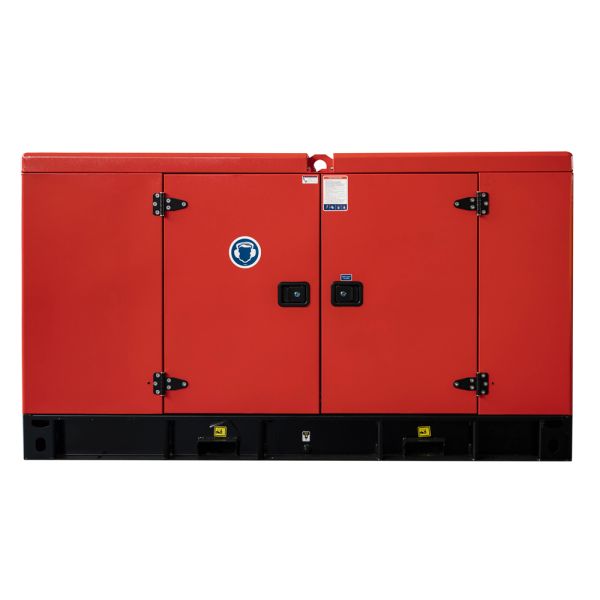

Silent Type Exterior
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling

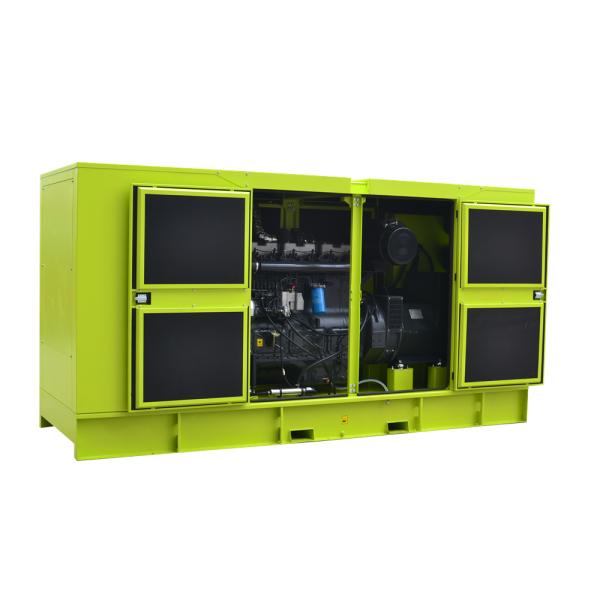

Internal Components
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Cooling System
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Fuel System
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Electrical Connections
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Full Assembly
Factory Price Open/Silent Type IISUZU Diesel Generator 10KW/13KVA Power Supply Water Cooling
Quality Inspection
Specifications and illustrations are subject to revision without notice.
