Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply
Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply
Specifications
Brand Name :
Doosan
Model Number :
SP344CC
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Delivery Time :
5-8 work days
Packaging Details :
250cm*93cm*120cm
Power Rating :
64kw
Rated Power :
80kva
Control System :
Digital
Tank Capacity :
147L
Phase :
3
Frequency :
50/60HZ
Type :
Silent/Open
Description

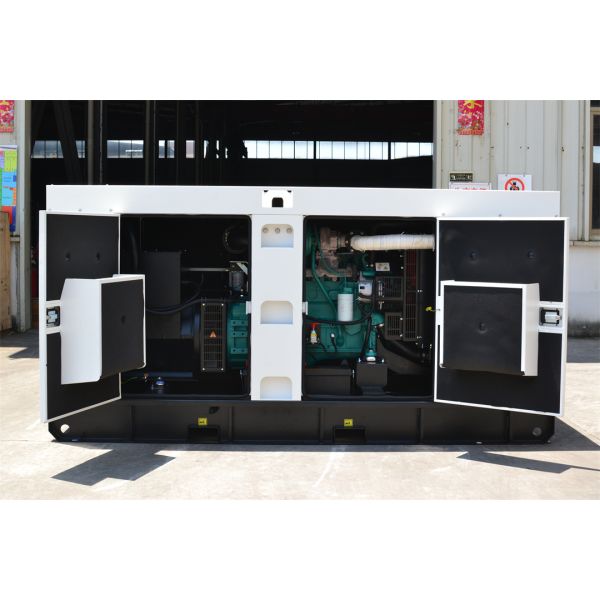

Doosan Silent Diesel Generator 80KVA/88KVA
High-quality Doosan diesel generators available in various configurations including silent and open type designs with competitive pricing. Model SP344CC is a dependable power generator for industrial and commercial environments with customizable power configurations.
Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply
Technical Specifications
General InformationPrime PowerStandby Power
Rated Power (kVA)8088
Power Rating (kW)6470
Frequency (Hz)50
Engine ModelSP344CC
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
Power Rating Definitions
PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12 hours of operation.
ESP (Emergency Standby Power): Applicable for supplying emergency power during utility interruptions. No overload, utility parallel or negotiated outage operation capability available.
Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply
Dimensions and Weight
ModelBDO88 (Open Type)BDO88S (Silent Type)
Length (L) mm20002500
Width (W) mm710930
Height (H) mm13201200
Tank Capacity (L)147147
Engine Specifications
Engine Model & ManufacturerSP344CC (DOOSAN)
Engine Type4-stroke, in-line 4 cylinder, water cooled, common rail direct injection
Bore x Stroke98 × 113 mm
Displacement3.4 liters
Compression Ratio16.8:1
RotationCounter clockwise viewed from flywheel
Firing Order1 - 3 - 4 - 2
Dry Weight365 kg (engine only)
Dimension (LxWxH)800 × 683 × 975 mm
Idle Speed800 ±15 rpm
Governor Regulation≤ 5%
Maximum Permissible High Altitude2500 m (No torque derating)
Moment of Inertia0.804 kg*m²
Flywheel HousingSAE J617 #3
FlywheelSAE J620 11.5"
Number of Teeth on Flywheel Ring Gear125
Alternator Specifications
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-224G
Alternator Rated Power64kw/80kva
Rated Voltage (V)230v/400v
Rated Frequency50hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%～+20%
Company Profile
Established in 2004, Fujian Bobig Electric Machinery Co., Ltd. is an electrical machinery manufacturer specializing in technological research, production and sales. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, including 20 technicians.
Our main products include air-cooled gasoline generators, air-cooled diesel generators, air-cooled welding & generating sets and water-cooled diesel generator sets. Our small air-cooled brushless generators and welding & generating sets have earned a great reputation in the market for their reliable quality.
We adhere to the principle of "Quality, Creation, Service and Development", continuously updating technology, improving quality and providing better service. Our advanced testing equipment includes CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment.
We maintain strict quality control and have obtained ISO9000 Quality System Certification.
Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply Doosan Silent Diesel Generator 80KVA 88KVA Diesel Power Generator with Engine 50hz and 60hz for Continuous Industrial Power Supply
After Sales Services
As a leading Chinese diesel generator manufacturer, we offer comprehensive export services including:
  • Customized manufacturing
  • Quality control
  • International logistics
  • Documentation and certification
  • Trade support
  • After-sales service
  • Customer training
  • Market support
  • Technical collaboration
We deliver tailored diesel generator solutions that meet international quality standards. Our experienced team handles all logistics to ensure timely delivery. We provide necessary documentation compliant with international trade requirements and offer after-sales support including technical assistance and spare parts supply.
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional manufacturer with our own factory located in Fujian, China. We welcome you to visit our facility and production line to see our quality control processes firsthand.
What is the minimum order quantity (MOQ)?
Our standard MOQ is 1 set. We are flexible and can discuss volume orders for larger projects to provide better pricing.
What is the delivery time after order confirmation?
Production time varies by quantity and inventory status. Typically 20-30 days for standard models. We'll provide a precise timeline upon order confirmation.
What payment terms do you offer?
We commonly accept T/T with 50% deposit and 50% balance before shipment. For established relationships, we can discuss other terms like L/C.
Do you perform factory inspection before shipment?
Absolutely. Every unit undergoes thorough testing in our factory before shipment.
