Specifications
Brand Name :
SDEC
Model Number :
SC13E500D2
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1
Price :
11000-17000USD
Supply Ability :
500PCS Per Month
Delivery Time :
30 work days
Packaging Details :
420*130*195cm
Description

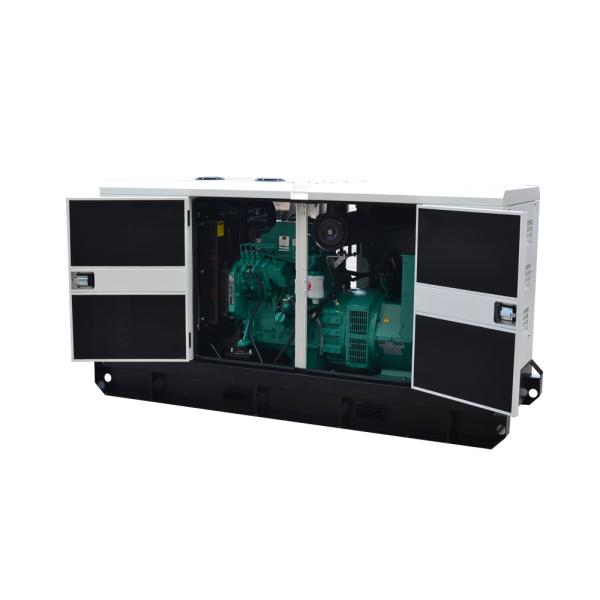

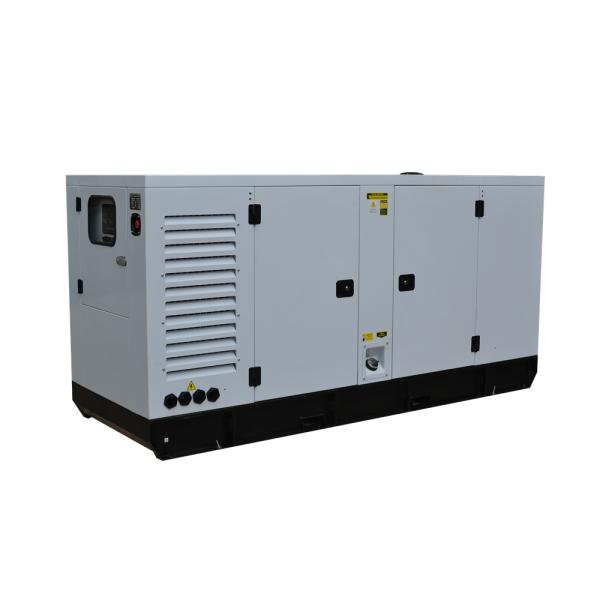

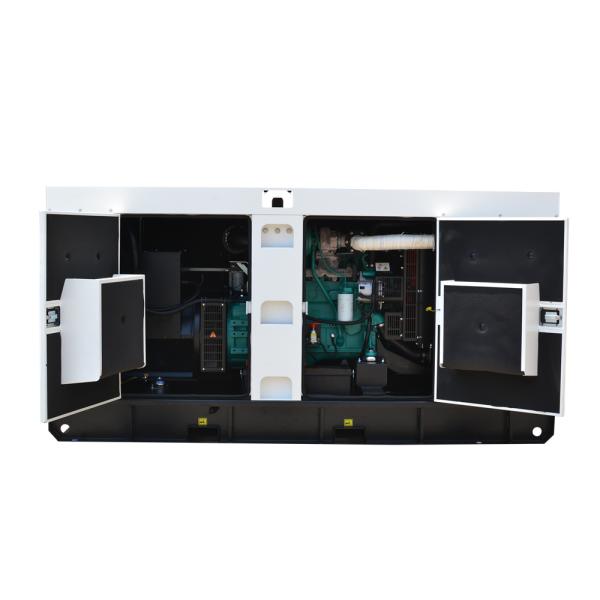

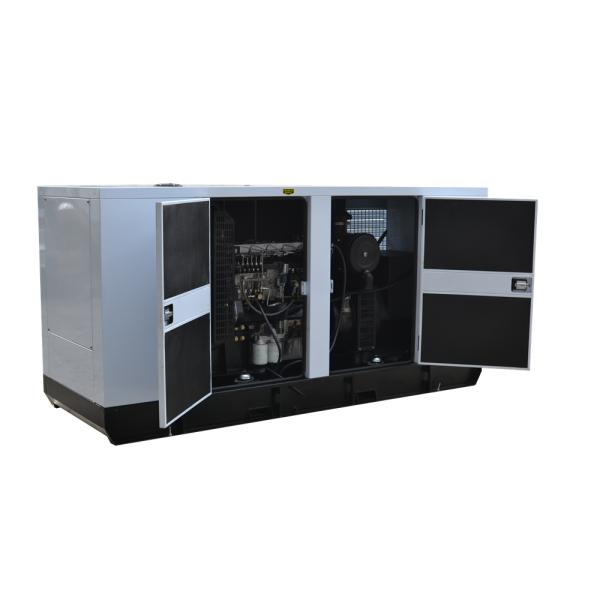

SDEC SC13E500D2 Diesel Generator Set
Our SDEC SC13E500D2 Diesel Generator is a high-performance, heavy-duty generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 300kW unit is encased in a robust soundproof canopy, making it ideal for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.
Custom 100kw 200kva 200KW 300 Kva 400kw SDEC Silent diesel Generator 300kw 400kva 500kva Genset Electric Power Generator Custom 100kw 200kva 200KW 300 Kva 400kw SDEC Silent diesel Generator 300kw 400kva 500kva Genset Electric Power Generator
General Specifications
ParameterPrime PowerStandby Power
Rated Power (kVA)375413
Power Rating (kW)300330
Frequency (Hz)50
Engine ModelSC13E500D2
Engine Speed (RPM)1500
Phase3
PF0.8
Control SystemDigital
Rated Voltage (V)400/230 (Customizable)
Fuel Tank Capacity Operating Time≥ 8h @ 75% load
PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97; includes 10% overload capability for 1 hour within 12 hours of operation.
ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions & Weight
ModelBSD413 (Open Type)BSD413S (Silent Type)
Length (L) mm31004200
Width (W) mm11601300
Height (H) mm21501950
Tank Capacity (L)690690
Engine Specifications
ParameterSpecification
Engine Model & ManufacturerSC13E500D2 (SDEC)
Engine TypeIn-line, 4 strokes, water-cooled; 4 valves, Turbo charged with aftercooler
Combustion TypeDirect injection
Cylinder TypeWet cylinder liner
Number of Cylinders6
Bore × Stroke130 × 161 mm
Displacement12.8 lit.
Compression Ratio17 : 1
Firing Order1-5-3-6-2-4
Fuel Injection Advance Angle14°BTDC
Dry Weight1164 kg
Dimension1856×1000×1354mm
RotationCCW viewed from flywheel
Fly Wheel HousingSAE 1#
Fly WheelSAE 14# (133 teeth)
Injection PumpLongkou in-line "P" type
GovernorElectric type
Feed PumpMechanical type
Injection NozzleMulti hole type
Alternator Specifications
ParameterSpecification
Alternator BrandBOBIG
Alternator ManufacturerFUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator ModelBW-314F
Alternator Rated Power300kW/375kVA
Rated Voltage (V)230V/400V
Rated Frequency50Hz
Connecting Type3 Phase and 4 W
Number of Bearing1
Protection GradeIP23
Altitude≤1000m
Exciter TypeBrushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation ClassH class
Telephone Influence Factor (TIF)≤50
THF≤2%
Voltage Regulation, Steady State≤±1%
Transient State Voltage≤-15%~+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only)
  • Hours counter for accurate monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously
  • Configurable for wide range of applications
  • PLC editor allows user configurable functions
Custom 100kw 200kva 200KW 300 Kva 400kw SDEC Silent diesel Generator 300kw 400kva 500kva Genset Electric Power Generator
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility and data logging
  • Internal PLC editor and protections disable feature
  • Fully configurable via PC using USB communications
  • 3-phase generator and mains sensing and protection
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains current and power monitoring (DSE6120 MKIII only)
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • 6 configurable DC outputs and 4 configurable analogue/digital inputs
  • Support for 0V to 10V & 4mA to 20mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing
  • Real time clock and engine run-time scheduler
  • Engine pre-heat and post-heat functions
  • Engine idle control for starting & stopping
  • Fuel level alarms and 3 configurable maintenance alarms
  • Compatible with wide range of CAN engines including Tier 4
  • IP65 rating (with optional gasket)
Available Options
EngineAlternatorFuel SystemGenerating Set
  • Water Jacket Preheater
  • Oil Preheater
  • Oil manual pump
  • PMG excitation
  • Space heater
  • Winding temperature measuring
  • 12/24 hour base tank
  • Bunded fuel tank
  • External fuel tank
  • Automatic fuel feeding
  • Switch between external tank and base tank (three-way valve)
  • Deepsea, ComAp, Smartgen etc. controller
  • Trailer
  • Tools with the machine
