SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
Specifications
MOQ :
1
Brand Name :
SDEC
Place of Origin :
China
Packaging Details :
240*93*120cm
Certification :
ISO 9001
Model Number :
4ZT3.5-G21
Supply Ability :
500PCS Per Month
Price :
3200-4500USD
Delivery Time :
30 work days
Description

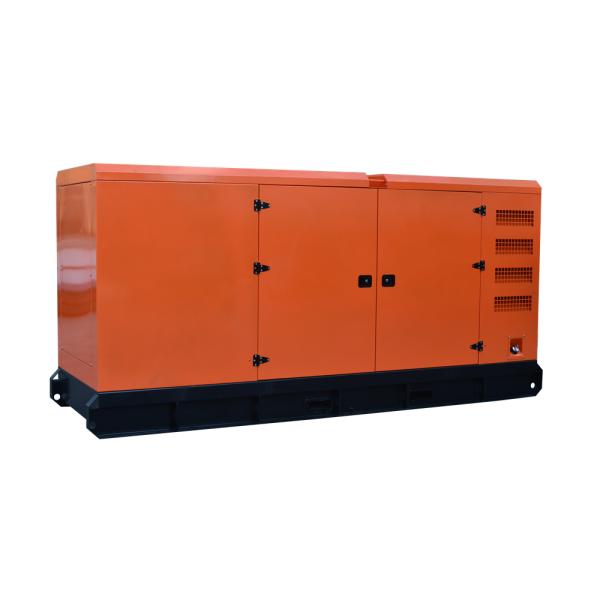

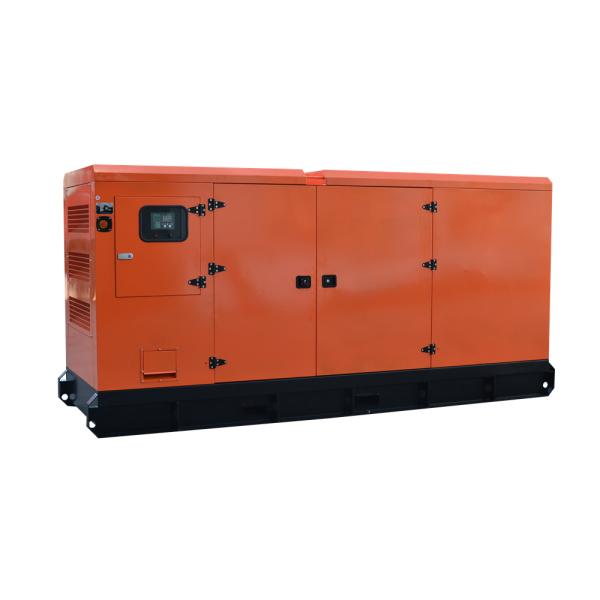

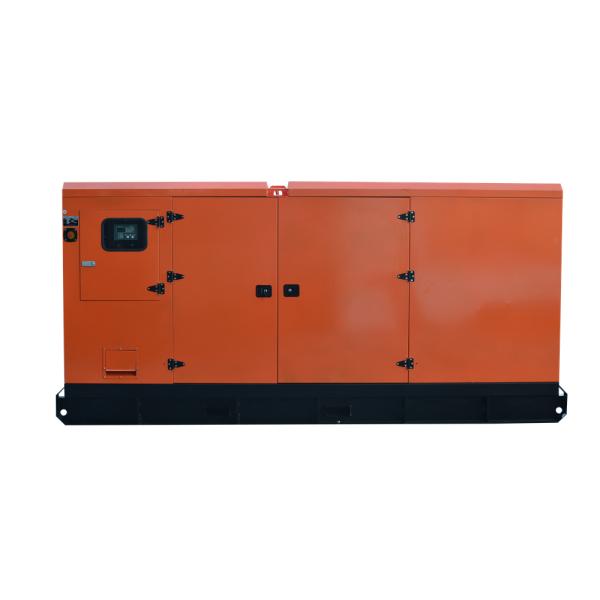

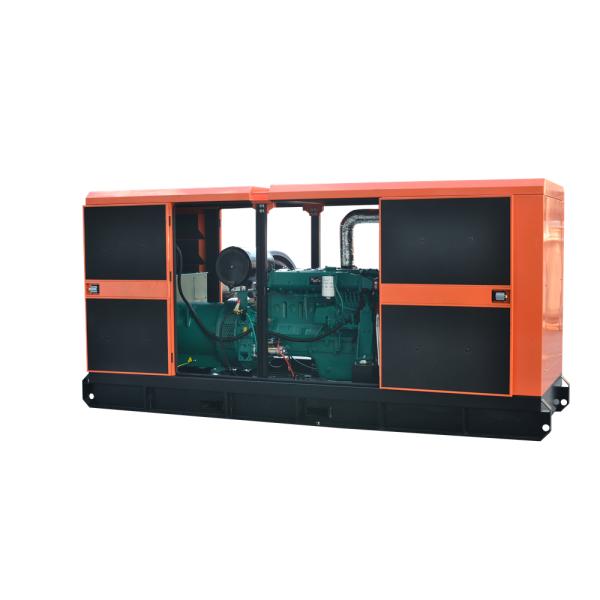

SDEC 40kW Domestic Standby Diesel Silent Generator
Our SDEC 4ZT3.5-G21 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 40kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability.
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 50 55
Power Rating (kW) 40 44
Frequency (Hz) 50
Engine Model 4ZT3.5-G21
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP Prime Power: Available for unlimited annual hours in variable load applications according to GB/T2820-97. Includes 10% overload capability for 1 hour within 12 hours of operation.
ESP Standby Power: Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available.
Dimensions and Weight
Model BSD55 (Open Type) BSD55S (Silent Type)
Length (mm) 1860 2400
Width (mm) 620 930
Height (mm) 1170 1200
Tank Capacity (L) 92 92
Engine Specifications
Engine Model & Manufacturer 4ZT3.5-G21 (SDEC)
Engine Type In-line, 4 strokes, water-cooled; 4 valves, Turbo charged
Combustion Type Direct injection
Cylinder Type Wet cylinder liner
Number of Cylinders 4
Bore × Stroke 105 × 115 mm
Displacement 3.5 lit.
Compression Ratio 18 : 1
Firing Order 1-3-4-2
Fuel Injection Advance Angle 14-17°
Dry Weight 320 kg
Dimension 848×608×909mm
Rotation CCW viewed from flywheel
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224D
Alternator Rated Power 40kW/50kVA
Rated Voltage 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Control Panel - DSE 6120
Auto start and auto mains failure control module with alternator frequency & CAN speed sensing.
Key Benefits
  • Automatically transfers between mains (utility) and generator
  • Hours counter for accurate monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously
  • Configurable to suit wide range of applications
  • PLC editor allows user configurable functions
SDEC 40kw Domestic Standby Diesel Silent Generator with Auto Start ATS Remote Start 50/60 Hz for Home
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
Advanced Features
  • 3-phase generator sensing and protection
  • 3-phase mains sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring
  • Mains current and power monitoring
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Real time clock
  • Engine run-time scheduler
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank
