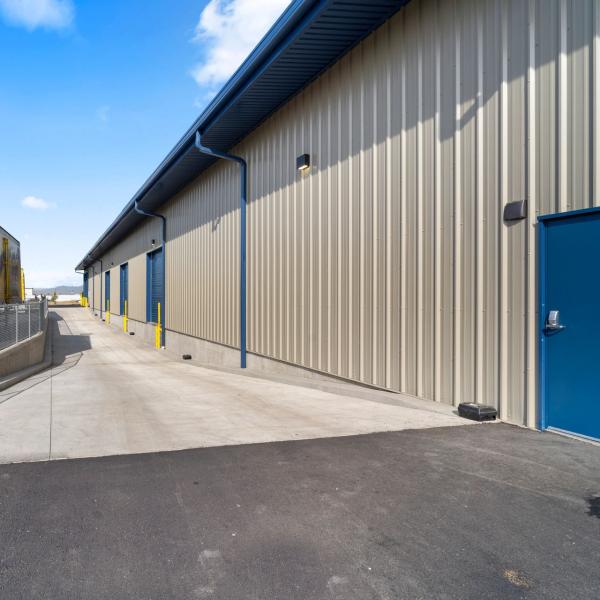

Tekla Pkpm Auto CAD Design Larger Span Modern Heavy Steel Structure Frame Workshop Garage Hangar

Product Introduction

The "Tekla Pkpm Auto CAD Design Larger Span Modern Heavy Steel Structure Frame Workshop Garage Hangar" is a cutting-edge structural solution meticulously engineered by China CT Steel Structure Group Co., Ltd. This product leverages advanced software technologies like Tekla Structures, PKPM, and AutoCAD to design and deliver large-span heavy steel structures tailored for applications such as industrial workshops, garages, aircraft hangars, warehouses, and commercial buildings.These steel structures are designed with precision engineering, ensuring optimal strength, stability, and adaptability. They are capable of spanning vast distances without the need for intermediate columns, making them ideal for projects requiring expansive, column-free interior spaces.

Key Features

1. Advanced Software Integration
   • Utilizes Tekla Structures, PKPM, and AutoCAD for precise modeling, analysis, and design.
   • Ensures high accuracy in fabrication drawings and construction plans.
2. Larger Span Capability
   • Spans up to 100 meters or more without internal supports.
   • Ideal for large open-space requirements in aviation, logistics, and manufacturing sectors.
3. Heavy-Duty Construction
   • Constructed using high-grade steel materials (Q345B/Q235B) that offer superior load-bearing capacity.
   • Resistant to wind, seismic activity, and extreme weather conditions.
4. Customizable Design
   • Flexible layout options based on client-specific needs.
   • Can be integrated with insulation, roofing systems, skylights, and ventilation solutions.
5. Quick Assembly & Disassembly
   • Modular components allow for rapid installation and potential relocation.
   • Reduces overall project timeline and labor costs.
6. Cost-Effective Solution
   • Lower maintenance and long-term operational costs.
   • Efficient use of materials minimizes waste and optimizes budget allocation.

Technical Specifications

Product Applications

1. Aircraft Hangars
   • Designed to accommodate single or multiple aircraft with ease.
   • High clearance and wide openings ensure smooth access and egress.
2. Industrial Workshops
   • Ideal for automotive, machinery, and manufacturing industries.
   • Provides ample space for production lines, equipment storage, and assembly.
3. Warehousing & Logistics Centers
   • Offers vast, unobstructed floor space for inventory management and distribution.
   • Compatible with automated storage and retrieval systems.
4. Commercial Garages
   • Suitable for car dealerships, service centers, and vehicle repair shops.
   • Customizable with lighting, ventilation, and office modules.
5. Sports Facilities & Exhibition Halls
   • Used for indoor arenas, exhibition centers, and event venues.
   • Supports large crowds and temporary setups.
6. Agricultural Storage
   • Perfect for storing farm equipment, feed, and livestock shelters.
   • Durable against harsh environmental conditions.
7. Emergency Shelters & Temporary Bases
   • Rapid deployment capability for disaster relief operations.
   • Reusable and relocatable for flexible usage.

At China CT Steel Structure Group Co., Ltd, we are committed to delivering high-performance steel structures that combine innovation, durability, and efficiency. The "Tekla Pkpm Auto CAD Design Larger Span Modern Heavy Steel Structure Frame Workshop Garage Hangar" represents our dedication to providing top-tier engineering solutions for modern infrastructure needs.

Contact us today to discuss your project requirements and discover how our advanced steel structure systems can support your vision!
