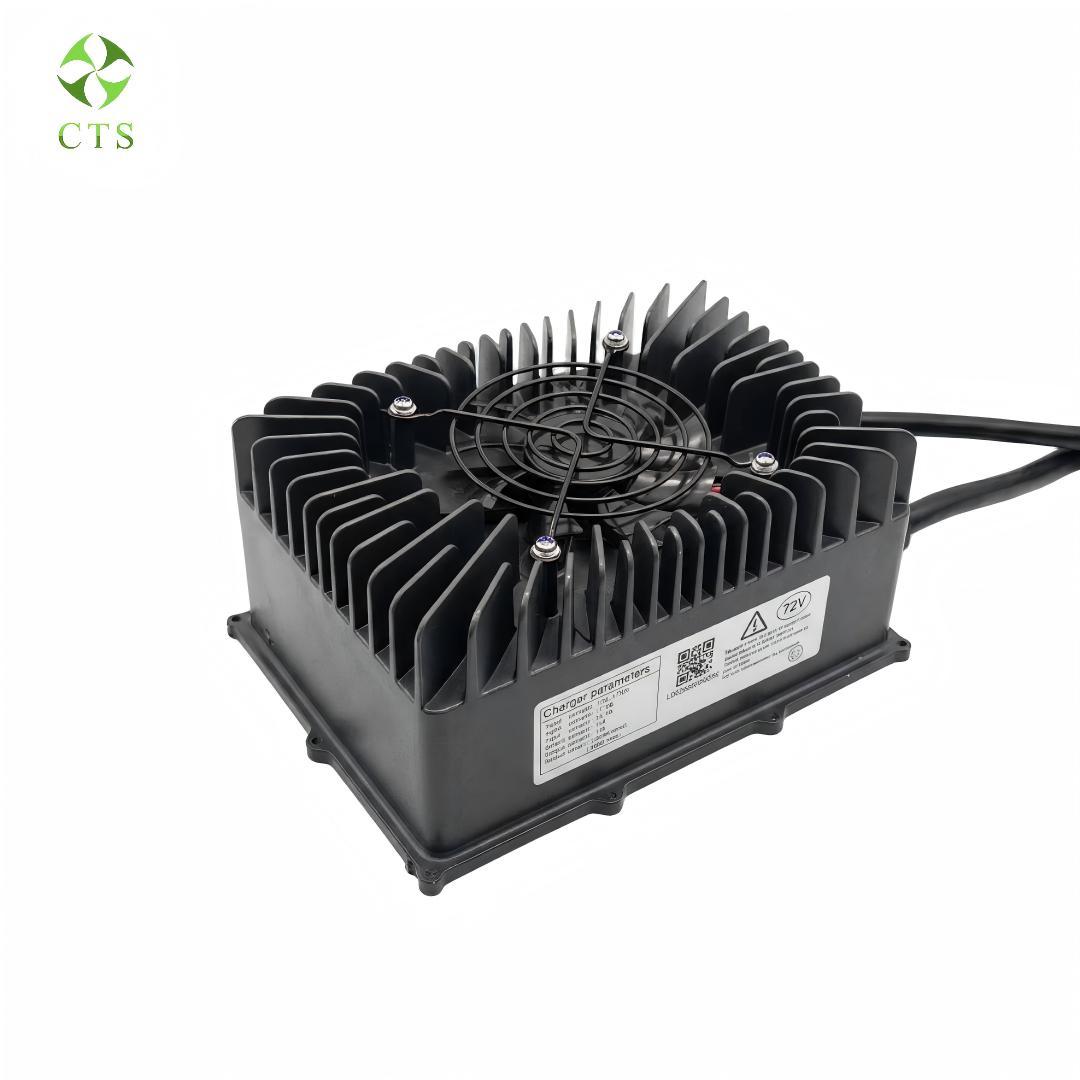

CTS 1500W On-Board Charger (OBC) - High-Efficiency Solution for 48V/72V EV Systems
CTS 1500W On-Board Charger (OBC) - High-Efficiency Solution for 48V/72V EV Systems
Specifications
Packaging Details :
Carton packaging
Power Factor :
≥0.98
Certification :
CE/EMC/LVD/RoHS
Payment Terms :
L/C,T/T
Input Voltage (AC) :
Voltage Range: 100~240V/ Frequency Range: 45~60Hz / Single-phase, three-wire system
Communication Function :
CAN (Optional)
Delivery Time :
10~30 days
Rated Output Voltage (DC) :
48V/72V
Protection Rating :
IP66
Supply Ability :
5000pcs/month
Maximum Output Voltage (DC) :
0~25A(48V) / 0~20A(72V )
Output Power :
1500W@220V/1100W@120V
Brand Name :
CTS Charger
Place of Origin :
China
MOQ :
2
Maximum Input Current :
12A
Description

CTS 1500w On-Board Charger is a high-density power conversion solution specifically engineered for medium-low voltage electric traction systems. Designed to meet automotive standards, this series provides a stable and reliable charging interface for various battery chemistries, including Lithium-ion, Lead-acid (AGM/Gel), and Ni-MH batteries.

With a dual-system integrated design and IP66-rated protection, the CH02L ensures long-term durability and peak performance in demanding environments, making it the ideal choice for low-speed electric vehicles, golf carts, and electric motorcycles.

Key Features

  • High Efficiency & Power Density: Boasts a maximum efficiency of ≥93%, significantly reducing energy loss and heat generation during the charging cycle.
  • Intelligent Digital Control: Equipped with dual software and hardware protection, supporting customizable charging profiles and optional CAN communication for smart battery management.
  • Ruggedized for EVs: Automotive-grade vibration and shock resistance (compliant with QC/T 413-2002) ensures reliability on rough terrains.
  • IP66 Waterproof & Dustproof: Sealed enclosure design protects internal components from water jets and dust, extending service life in outdoor applications.
  • Smart Thermal Management: Intelligent air-cooling with power-foldback protection at 75°C to prevent overheating.

Technical Specifications

Parameter CH02L-4825 CH02L-7220
AC Input Voltage 100~240V AC (50/60Hz) 100~240V AC (50/60Hz)
Rated Output Voltage 48V DC 72V DC
Max Output Voltage 76V DC 96V DC
Output Current Range 0~25A 0~20A
Max Output Power 1350W @220V / 1100W @120V 1500W @220V / 1100W @120V
Peak Efficiency ≥93% ≥93%
Cooling Method Air-Cooled Air-Cooled
Protection Rating IP66 IP66
Weight / Noise Compact Design / ≤65dB Compact Design / ≤65dB

Comprehensive Protection Features

Your safety is our priority. CTS charger including multiple layers of protection:

  • Output Short-Circuit Protection: Automatic shutdown with self-recovery.
  • Over/Under-Voltage Protection: Prevents damage to the battery and charger during grid fluctuations.
  • Over-Temperature Protection: Power derating at 75°C and shutdown at 95°C.
  • Reverse Polarity Protection: Prevents severe damage from incorrect battery connection.

Application Scenarios

  • Low-Speed Electric Vehicles (LSEV)
  • Electric Golf Carts & Sightseeing Cars
  • Electric Forklifts & Pallet Jacks
  • Electric Motorcycles & Scooters
  • Utility & Scissor Lifts

Are you looking for a reliable, high-efficiency On-Board Charger for your electric vehicle fleet or project? Our engineering team is ready to provide customized power solutions tailored to your battery specifications.
