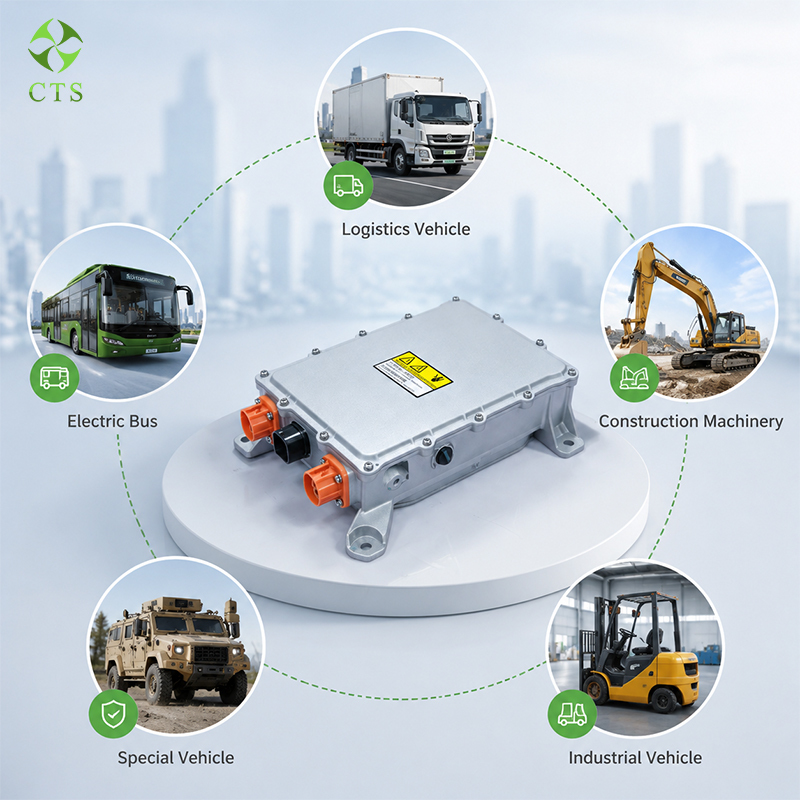

CTS 3.3KW OBC + 1.5KW DC/DC 2-in-1 Integrated OBC for EV Systems
CTS 3.3KW OBC + 1.5KW DC/DC 2-in-1 Integrated OBC for EV Systems
CTS 3.3KW OBC + 1.5KW DC/DC 2-in-1 Integrated OBC for EV Systems
CTS 3.3KW OBC + 1.5KW DC/DC 2-in-1 Integrated OBC for EV Systems
CTS 3.3KW OBC + 1.5KW DC/DC 2-in-1 Integrated OBC for EV Systems
CTS 3.3KW OBC + 1.5KW DC/DC 2-in-1 Integrated OBC for EV Systems
Specifications
Packaging Details :
Carton packaging
Rated Output Current :
108A
Certification :
CE/EMC/LVD/RoHS
Input Voltage Range :
90V - 265V AC (Supports 110V/220V)
Payment Terms :
L/C,T/T
DC-DC power :
1.0kW
Protection Level :
IP67
Delivery Time :
10~20days
Dimensions / Weight :
244 x 170 x 117 mm / 7.5 ± 0.5 kg
Supply Ability :
5000pcs/month
Rated Output Voltage :
14V DC (Range: 7V - 16V)
Place of Origin :
China
Rated Output Voltages :
80V / 96V / 108V / 144V / 360V
Brand Name :
CTS
Product Name :
3.3kW OBC+1.0kW DC-DC
MOQ :
2
Efficiency :
≥93%
Applications :
Light Electric Vehicles (LEVs) & Neighborhood Electric Vehicles (NEVs). Electric Golf Carts & Utility Patrol Cars.
Description
3.3KW OBC + 1.5KW DC/DC Integrated 2-in-1 OBC for EV Systems

The 3.3KW OBC + 1.5KW DC/DC 2-in-1 integrated controller is a compact, high-efficiency power solution designed specifically for electric vehicle. By combining the On-Board Charger and DC/DC converter into a single unit, it significantly reduces vehicle weight, optimizes installation space, and simplifies wiring architecture while maintaining automotive-grade reliability.

Key Features
  • Dual-Function Integration: Seamlessly combines a 3.3KW charger and a 1.5KW converter to power both high-voltage battery charging and low-voltage auxiliary systems.
  • High Efficiency & Power Factor: Features ≥93% charging efficiency and a power factor >0.98, ensuring minimal energy loss and stable grid connection.
  • IP67 Rugged Protection: Both the main body and the cooling fan meet IP67 standards, providing complete protection against dust and water immersion.
  • Advanced Safety Suite: Hardware-level protection against over/under voltage, short circuits, reverse polarity, and over-temperature.
  • Smart Communication: Features Molex connectors for CAN_H/CAN_L communication, supporting real-time status monitoring and BMS integration.
Technical Specifications
Component Feature Specification
System Overall Protection Level IP67 (Body & Fan)

Operating Temp -40℃ to +65℃
3.3KW OBC Input Voltage 90VAC - 265VAC

Rated Output Voltage 312V (range250~450V)

Max Output Current 10A

Efficiency / Power Factor ≥93% / >0.98
1.0KW DC/DC Input Voltage Range 220VDC - 450VDC

Rated Output Voltage 14V ± 0.2VDC

Rated Output Current 110A

Efficiency ≥93%
Applications
  • Light Electric Vehicles (LEVs) & Neighborhood Electric Vehicles (NEVs).
  • Electric Golf Carts & Utility Patrol Cars.
  • Electric Forklifts & Small Specialized Engineering Vehicles.

Ready to upgrade your EV power system? Click the "Inquiry Now" button to get a detailed datasheet and a competitive volume quote. Our engineering team is ready to support your integration needs.
