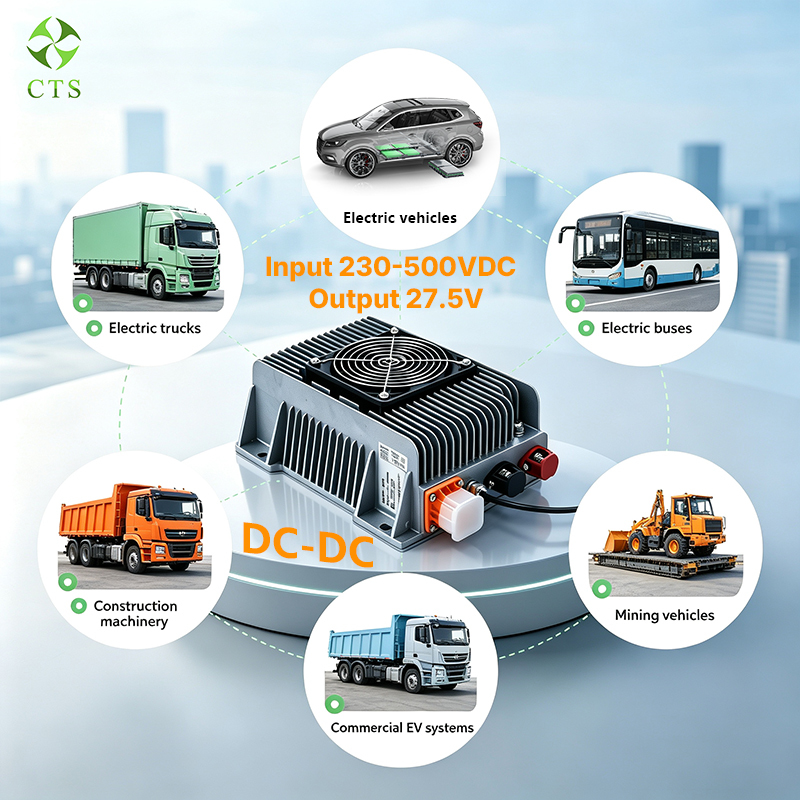

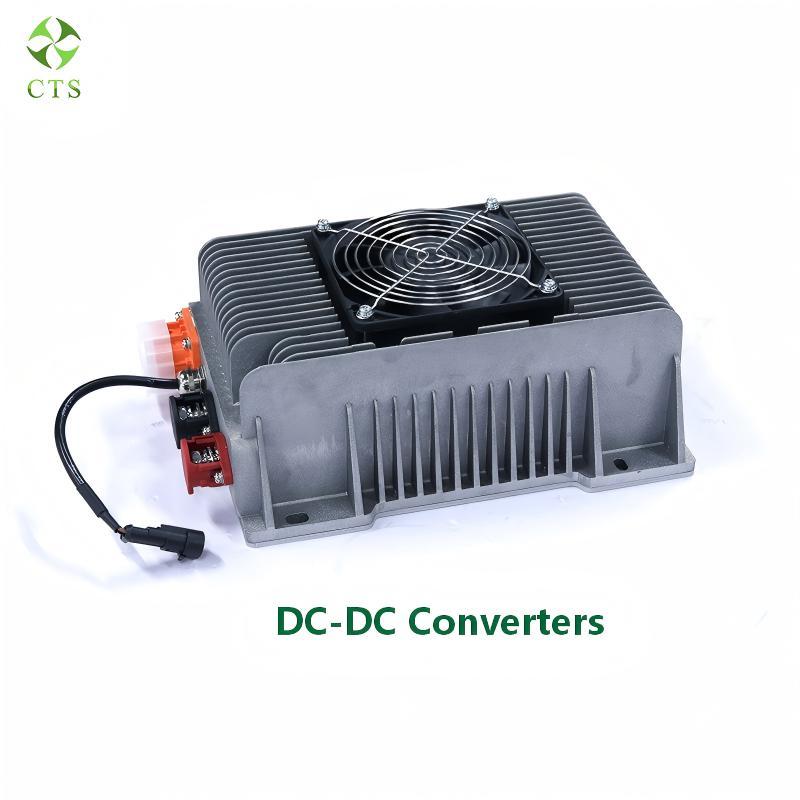

CTS High-Efficiency 2KW DC/DC Converter for Electric Vehicles | 96V/144V/320V/540V to 14V/27V
CTS High-Efficiency 2KW DC/DC Converter for Electric Vehicles | 96V/144V/320V/540V to 14V/27V
CTS High-Efficiency 2KW DC/DC Converter for Electric Vehicles | 96V/144V/320V/540V to 14V/27V
CTS High-Efficiency 2KW DC/DC Converter for Electric Vehicles | 96V/144V/320V/540V to 14V/27V
CTS High-Efficiency 2KW DC/DC Converter for Electric Vehicles | 96V/144V/320V/540V to 14V/27V
CTS High-Efficiency 2KW DC/DC Converter for Electric Vehicles | 96V/144V/320V/540V to 14V/27V
Specifications
Packaging Details :
Carton packaging
Response Time :
≤200ms
Warranty :
12 Months
Certification :
CE/EMC/LVD/RoHS
Rated Output Power :
2KW
Delivery Time :
10~20days
Typical Efficiency :
96%
Application :
Passenger cars, electric buses, logistics vans, Electric forklifts, aerial platforms, mining vehicles, Golf carts, patrol cars, AGVs.
Supply Ability :
5000pcs/month
Output Current Range :
0-142A (at 14V) / 0-72A (at 27V)
Place of Origin :
China
Rated Input Voltages :
96V / 144V / 320V / 540V
Payment Terms :
L/C,T/T
Rated Output Voltage :
14V / 27V
Size :
254 x 131 x 95 mm
Brand Name :
CTS
Name :
DC DC converter
MOQ :
2
Input Voltage Range :
65-140V / 100-200V / 220-500V / 400-750V
Cooling Method :
Forced Air Cooling (Internal Fan)
Description
High-Performance 2KW DC/DC Converter Reliable Power for Electric Mobility

Engineered for the demanding environments of Electric Vehicles (EVs), electric trucks, and heavy industrial machinery, this 2KW DC/DC converter provides a stable, high-efficiency voltage step-down solution. It is designed to power critical auxiliary systems such as lighting, steering, and control units with uncompromising reliability.

Key Features
  • Wide Input Range & Universal Compatibility: Supports four rated input specifications (96V, 144V, 320V, and 540V), making it compatible with a vast array of battery architectures from golf carts to heavy-duty commercial EVs.
  • High Conversion Efficiency: Boasts a typical efficiency of ≥96%, significantly reducing energy loss, minimizing heat generation, and maximizing the driving range of your vehicle.
  • Fast Response & Precise Regulation: With an output response time of ≤200ms and tight regulation accuracy (±0.2V for 14V / ±0.4V for 27V), it ensures consistent power even under sudden load changes.
  • Full Protection Suite: Features built-in hardware protection against over/under voltage, over-current, short circuits, reverse connection, and over-temperature. Includes an intelligent auto-recovery function once faults are cleared.
  • Compact & Rugged Design: The fan-cooled aluminum housing is optimized for space-constrained installations while providing superior thermal management.
2KW DC/DC Converter
Input Electrical Characteristics
Rated Input Voltage Input Voltage Range Input Pre-charge Circuit Rated Output Power
96V 65-140V Built-in 2KW
144V 100-200V Built-in 2KW
320V 220-500V Built-in 2KW
540V 400-750V Built-in 2KW
Output Electrical Characteristics
Rated Output Voltage Output Voltage Range Output Current Range Voltage Regulation Accuracy Output Response Time Typical Efficiency
14V 8-16V 0-142A ± 0.2V (Tested at lead end) ≤ 200mS ≥ 96%
27V 18-32V 0-72A ± 0.4V (Tested at lead end) ≤ 200mS ≥ 96%
Protection Functions
Item 96V 144V 320V 540V
Input Over-voltage Protection > 145V > 205V > 505V > 755V
Input Over-voltage Recovery < 138V < 195V < 495V < 745V
Input Under-voltage Protection < 65V < 100V < 200V < 400V
Input Under-voltage Recovery > 70V > 105V > 210V > 410V
Output Over-voltage Protection > 16V > 33V - -
Output Over-voltage Recovery < 15V < 32V - -
Output Under-voltage Protection < 8V < 18V - -
Output Under-voltage Recovery > 9V > 19V - -
Output Over-current Protection Output stops when current exceeds max.
Input & Output Protection Shutdown on output short circuit or input reverse connection; auto-recovery after fault removal.
Over-temperature Protection Power reduced if heatsink > 75°C; shutdown if > 95°C; recovery if < 85°C.
Dimensions
Length (mm) Width (mm) Height (mm)
254 ± 1 131 ± 1 95 ± 5
Applications
  • Electric Vehicles: Passenger cars, electric buses, logistics vans.
  • Industrial Equipment: Electric forklifts, aerial platforms, mining vehicles.
  • Specialty Vehicles: Golf carts, patrol cars, AGVs.

Looking for a reliable power solution? Contact our engineering team today for technical data sheets and pricing.
