3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems
3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems
3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems
3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems
3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems
3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems
3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems
3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems
Specifications
Brand Name :
CTS battery
Certification :
ISO9001/MSDS/UN38.3/
Place of Origin :
China
MOQ :
1
Price :
1000~1500USD
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 units/Per month
Delivery Time :
15 working days
Packaging Details :
carton case
Product Name :
Battery Thermal Management System
Working environment temperature :
-30℃~55℃
Coolant type :
50% ethylene glycol aqueous solution
Cooling Power :
3KW 6KW 8KW 12KW
Warranty :
3 years
Color :
black
Description
3KW 6KW 8KW 12KW Lithium Battery Thermal Management System for Commercial Vehiclems

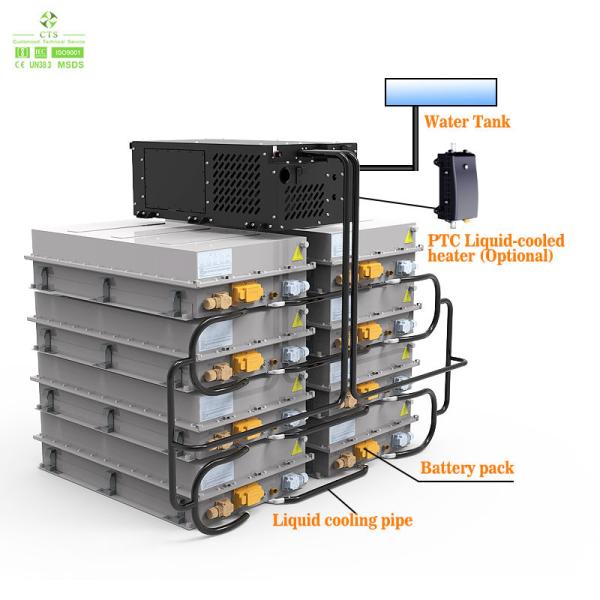

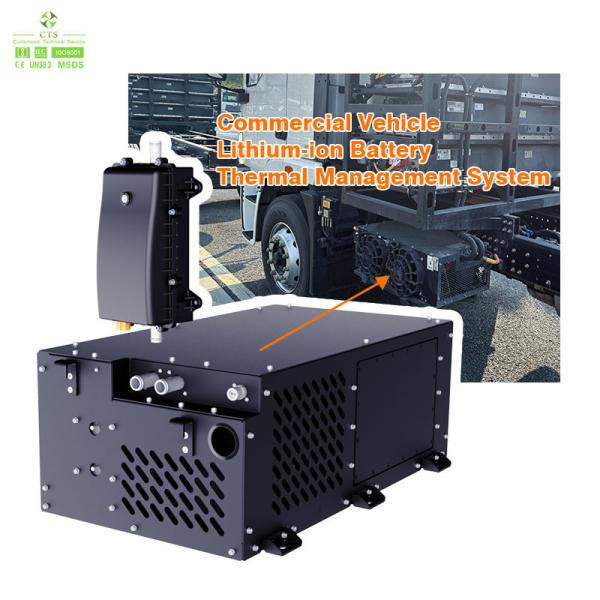

lithium-ion battery thermal management system (BTMS) specifically designed for commercial electric vehicles, such as electric trucks and electric buses. It efficiently regulates battery temperature, ensuring operation within the optimal range, enhancing battery performance, and extending its lifespan.
╣PRODUCT DESCRIPTION
✅ Efficient Temperature Control Management: Intelligent temperature control system ensures the battery operates within the optimal temperature range (10°C - 45°C )
✅ Improve Charging Efficiency: Prevent battery overheating, especially during fast charging.
✅ Prevent Thermal Runaway: Avoid battery fires or explosions.
✅ Ensure Battery Reliability: Prevent overheating or low temperatures from affecting battery performance.
✅ Optimize Energy Consumption: Enhance vehicle range.
✅ Energy-Saving & Eco-Friendly: Optimized thermal management strategy reduces energy consumption.
✅ Operating Temperature Range: -30°C to 55°C
Note that the unit should be installed horizontally,and the inclination in all directions should not be greater than 5%.
╣Product Parameters

Size: L670*W573*H280mm

Size: L830*W500*H300mm
Product name
3kW on-board BTMS
5kW BTMS
Working environment temperature
-30℃~55℃
Coolant type
50% ethylene glycol aqueous solution

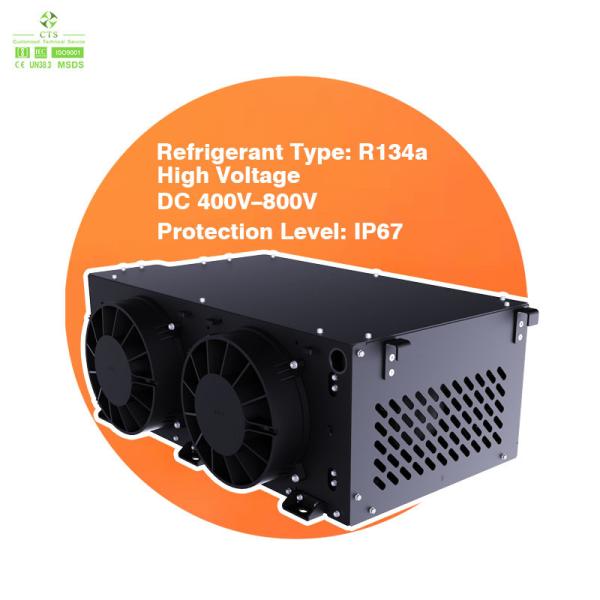

Refrigerant type
R134a
High voltage
DC400V～800V
Low voltage
DC24V
Communication interface
CAN 2.0
Control logic
Working mode + target water temperature
Cooling capacity
≥3kW,
working conditions: ambient temperature 38℃, unit water outlet 10℃, flow rate 20L/min
≥6kW,
working conditions: ambient temperature 38℃, unit water outlet 10℃, flow rate 20L/min
PTC heating power (KW)
6KW
≥10kW, flow rate 20L/min
Noise level
≤50 dB(A)
≤75 dB(A)
Protection level
IP67
IP67
Total weight
≤40kg
≤60kg

Size: L830*W500*H300mm

Size:L1182*W545*H310mm
Product name
8kW
12kW
Working environment temperature
-30℃~55℃
Coolant type
50% ethylene glycol aqueous solution
Refrigerant type
R134a
High voltage
DC400V～800V
Low voltage
DC24V
Communication interface
CAN 2.0
Control logic
Working mode + target water temperature
Cooling capacity
≥8kW, working conditions: ambient temperature 38℃, unit water outlet 10℃, flow rate 20L/min
≥12kW, working conditions: ambient temperature 38℃, unit water outlet 10℃, flow rate 20L/min
Noise level
≤75 dB(A)
≤75 dB(A)
Protection level
IP67
IP67
Total weight
≤60kg
≤80kg
╣APPLICATIONS
✅ Modular Design: suitable for commercial electric vehicles of various specifications.
✅ Electric Trucks: Ensures battery safety for long-haul transport vehicles.
✅ Electric Buses: Enhances battery stability for city buses and tourist coaches.
✅ Specialty Vehicles: Suitable for electric construction vehicles, electric logistics vehicles, and more.

MOUNTING METHOD AND PRECAUTIONS

1) Installation environment: There must be no obstructions on the air intake and exhaust surfaces of the equipment.
2) It is strictly forbidden to operate the equipment when there is no antifreeze in the water channel;
3) Pay attention to the exhaust in the water channel when adding antifreeze for the first time;
4) It is strictly forbidden to operate the equipment when there is no antifreeze in the water channel or when it is soaked in water;
5) It is strictly forbidden for people to touch the equipment when the equipment is running;
6) It is strictly forbidden for non-professionals to disassemble;
7) It is strictly forbidden for the equipment to be squeezed by heavy objects;
╣WHY CHOOSE US ?
✅ Professional Manufacturer: 14 years lithium battery designing and production experience.
✅ OEM & ODM Support: Customized development can be carried out according to customers' requirements.
✅ Global Logistics Support: International express delivery and sea freight are supported, with worldwide distribution.
✅ 24/7 Technical Support: A team of professional engineers provides round-the-clock technical support.
✅ ISO9001 &IATF16949 certifications to ensure the quality of products.
✅ 2 factories in battery manufacturing and R&D.
