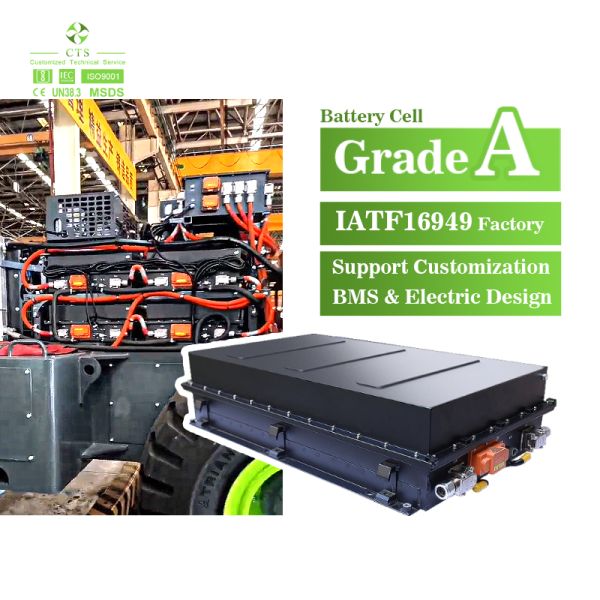

CTS 540V 576V 560Ah 322KWH High Energy Density Electric Truck Battery Electric Car Battery for Electric Heavy Truck

Specifications

Brand Name :

CTS Battery

Model Number :

CTS-LFP576560

Certification :

CE, UN38.3, MSDS

Place of Origin :

China

MOQ :

2 SETS

Price :

USD150-USD200/KWH

Payment Terms :

T/T, Western Union, L/C

Supply Ability :

6000 SETS/YEAR

Delivery Time :

60-70 DAYS

Packaging Details :

Plywood case

Battery Product :

576V 560Ah 322kWh

Application :

Heavy truck City bus Logistics vehicles, Battery-swapping Excavator

Array Mode :

10 battery modules+ a PDU box

PDU Box :

Including EVCC, relays, master BMS, precharge resistor and fuses and other conponents

Charge Power :

Max 160kW cont.

Charge Standard :

CCS1/CCS2 DC fast charging

Discharge Power :

260kW cont. 520kW peak for 30 sec

Other Options :

20KW OBC, 6.6KW OBC, 12V 24V DCDC Converter

Description

CTS 540V 576V 560Ah 322KWH High Energy Density Electric Truck Battery Electric Car Battery for Electric Heavy Truck

✅Multiple voltage and capacity choices: Support the max connection of 12 module(4S3P) in one system. Below are modules available, which can be connected freedomly, max 656V, 600KWH.
✅Longer life:Redesigned liquid cooling system for improved thermal consistency and longer life.
✅Safer EV Battery Module: Reliable lifepo4 cells, multi-tiered safety system.

Cell Type - Chemistry	Prismatic- LFP
Rated Capacity	560Ah
Rated Voltage	576V
Energy	322kWh
Series-parallel Connection	2P180S
IP Protection	IP67
Cycle life	≥3000cycles(90%DOD, 1C)
MECHANICAL SPECIFICATIONS
Weight	~2400±3kg
Dimension(LWH)	10(1200630240mm)+a PDU box(L500W390*H200mm)
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage	450V
Max Continuous Discharging Current	4500A @25℃ with liquid cooling
Peak Discharge Current in 5 Seconds	900A within 5s
CHARGE SPECIFICATIONS
Charging Limited Voltage	657V
Max Charging current	280A@380VAC, @25℃, CCS2 DC charging
Recommended Charging current	27A-280A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range	0~45℃
Discharge Temperature Range	-20~55℃
Recommended Operating Temperature	15~35℃
Storage Temperature & Humidity Range	-20~35℃, 45~75%RH (Less than 1 month)
	-10~35℃, 45~75%RH (Less than 3 months)
	15~35℃, 45~75%RH (Recommended)

Standard EV Battery Module facts:

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults
