Specifications
Description
CTS Standard 460V 576V 614V 768V EV Battery Modules 100kWh 150kWh
High-performance battery modules designed for electric mining vehicles, tunnel trucks, and heavy industrial applications.
Product Specifications
Attribute Value
Battery type 614V LiFePO4 EV battery pack
Nominal Capacity 100Ah - 200Ah
Cell Grade A+ LiFePO4 Cell
Warranty 3 years
Cycle life >3000 cycles
PDU CTS design PDU

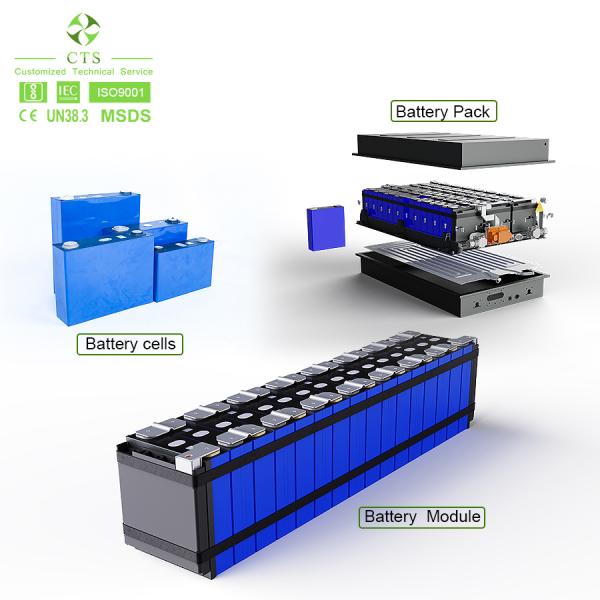

Battery Module Configurations
Using 153.6V 230Ah LiFePO4 Battery Modules
No. Module Qty Total Energy Rated Volt Rated Capacity Working Volt Discharge Power @ 25℃ Suggested Motor
1 3S 1P 105.9kWh 460.8V 230Ah 360V-525V 50kW rated, 100kW max, 200kW peak for 30 sec ≤100kW rated
2 3S 2P 211.9kWh 460.8V 460Ah 360V-525V 100kW rated, 180kW max, 360kW peak for 30 sec ≤180kW rated
3 3S 3P 317.7kWh 460.8V 690Ah 360V-525V 150kW rated, 220kW max, 440kW peak for 30 sec ≤220kW rated
4 4S 1P 141.3kWh 614.4V 230Ah 480V-700V 70kW rated, 140kW max, 280kW peak for 30 sec ≤140kW rated
5 4S 2P 282.4kWh 614.4V 460Ah 480V-700V 140kW rated, 240kW max, 480kW peak for 30 sec ≤240kW rated
6 4S 3P 423.9kWh 614.4V 690Ah 480V-700V 210kW rated, 290kW max, 590kW peak for 30 sec ≤290kW rated
7 5S 1P 176.6kWh 768V 230Ah 600V-876V 85kW rated, 175kW max, 350kW peak for 30 sec ≤175kW rated
8 5S 2P 353.2kWh 768V 460Ah 600V-876V 175kW rated, 300kW max, 600kW peak for 30 sec ≤300kW rated
9 5S 3P 529.8kWh 768V 690Ah 600V-876V 260kW rated, 370kW max, 740kW peak for 30 sec ≤370kW rated
Using 115.2V280Ah LiFePO4 Battery Modules
No. Module Qty Total Energy Rated Volt Rated Capacity Working Volt Discharge Power @ 25℃ Suggested Motor
10 3S 1P 96.8kWh 345.6V 280Ah 270V-394.2V 50kW rated, 90kW max, 180kW peak for 30 sec ≤90kW rated
11 3S 2P 193.5kWh 345.6V 560Ah 270V-394.2V 95kW rated, 160kW max, 320kW peak for 30 sec ≤160kW rated
12 3S 3P 290.3kWh 345.6V 840Ah 270V-394.2V 140kW rated, 200kW max, 400kW peak for 30 sec ≤200kW rated
Key Features
Advanced SOC Calculation
  • Real-time dynamic calibration
  • Vehicle operation conditions considered
  • Multi-method combination for high accuracy
  • Precise measurement of cell voltage, temperature, and pack current
Comprehensive Fault Diagnosis
  • Insulation & water leakage detection
  • Cell voltage range monitoring
  • High/low temperature alerts
  • Communication fault detection
  • Contactor weld monitoring
  • Power connection and temperature sensor diagnostics
Electrical System Design
Standard box configuration features two-way high voltage input for double-gun charging, two-way high voltage output for water cooling compressor and motor driving, and single-way low voltage output for vehicle communication.
