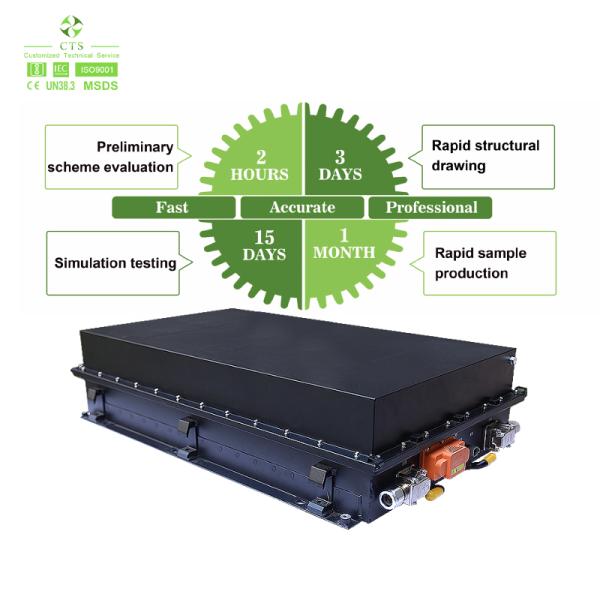

614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
614V Lifepo4 EV Battery Pack 100Ah 200Ah for Industrial Vehicles
Specifications
Description
CTS Standard High Voltage EV Battery Modules 460V 576V 614V 100kWh 150kWh 300kWh

High-performance battery modules designed for industrial mining tunnel vehicles and heavy-duty electric applications.

Key Attributes
Attribute Value
Battery type 614V LiFePO4 EV battery pack
Nominal Capacity 100Ah / 200Ah
Cell Grade A+ LiFePO4 Cell
Warranty 3 years
Cycle life >3000 cycles
PDU CTS design PDU
Battery Solutions for Electric Truck, Bus, Boat, Locomotive, Railway & Subway
153.6V 230Ah LiFePO4 Battery Modules
No. Module Qty Total Energy Rated Volt Rated Capacity Working Volt Discharge Power @ 25℃ Suggested Motor
1 3S 1P 105.9kWh 460.8V 230Ah 360V-525V 50kW rated, 100kW max, 200kW peak (30 sec) ≤100kW rated
115.2V280Ah LiFePO4 Battery Modules
No. Module Qty Total Energy Rated Volt Rated Capacity Working Volt Discharge Power @ 25℃ Suggested Motor
10 3S 1P 96.8kWh 345.6V 280Ah 270V-394.2V 50kW rated, 90kW max, 180kW peak (30 sec) ≤90kW rated
115.2V304Ah LiFePO4 Battery Modules
No. Module Qty Total Energy Rated Volt Rated Capacity Working Volt Discharge Power @ 25℃ Suggested Motor
22 3S 1P 105.1kWh 345.6V 304Ah 270V-394.2V 50kW rated, 80kW max, 165kW peak (30 sec) ≤80kW rated
307.2V105Ah LiFePO4 Battery Modules
No. Module Qty Total Energy Rated Volt Rated Capacity Working Volt Discharge Power @ 25℃ Suggested Motor
34 1S 1P 32.36kWh 307.2V 105Ah 240-345.6V 16kW rated, 32kW max, 64kW peak (30 sec) ≤32kW rated
Why Choose This Standard EV Battery Module?
SOC Calculation
  • Real-time dynamic calibration
  • Vehicle operation conditions considered
  • Multi-method combination for high accuracy
  • Measurement of cell voltage, temperature, and pack current
  • Extensive experimental data validation
Faults Diagnosis
  • Insulation & water leakage detection
  • Cell voltage range monitoring
  • High/low temperature protection
  • Communication fault detection
  • Contactor weld monitoring
  • Power connection and temperature sensor diagnostics

Electrical diagram of lithium battery system in standard box featuring:

  • Two-way high voltage input (double gun charging)
  • Two-way high voltage output (water cooling compressor and motor driving)
  • Single-way low voltage output for vehicle communication
