60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain
60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain
60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain
60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain
Specifications
Description
60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain

╣PRODUCT DESCRIPTION

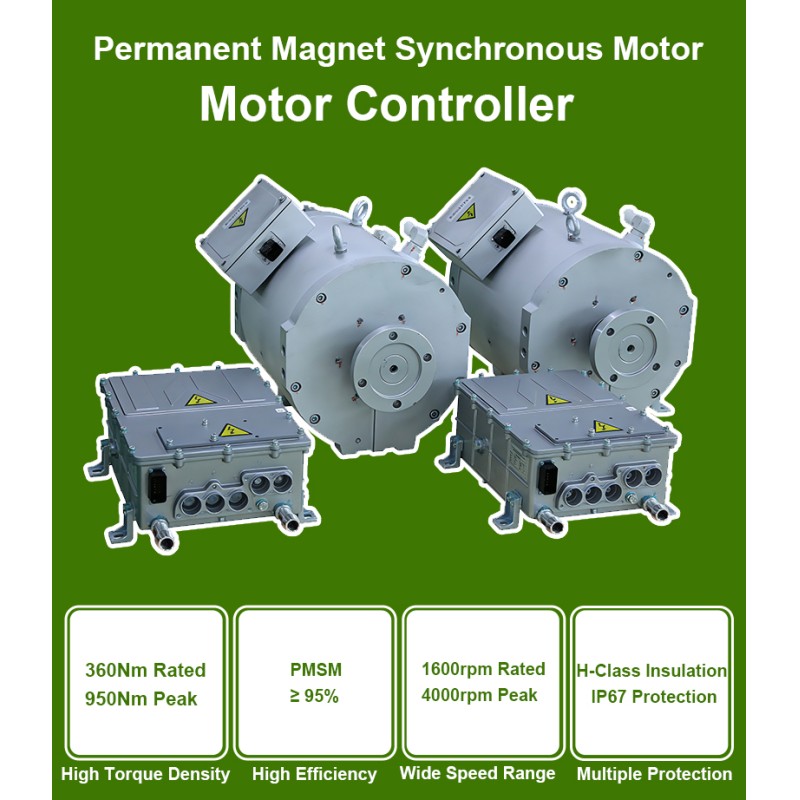

Our 60kW Permanent Magnet Synchronous Motor (PMSM) paired with a 75kW high-efficiency motor controller delivers outstanding power density, precise control, and high reliability.
This integrated motor & controller solution is designed for electric vehicles, electric boats, industrial machinery, and other high-performance electric drive systems.

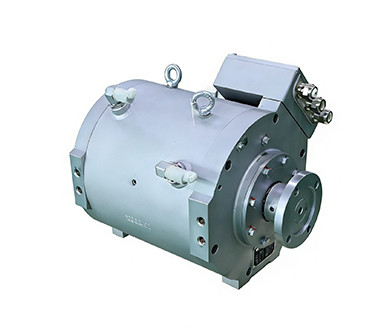

Motor Parameters :
1. Three-phase permanent magnet synchronous, rated voltage 380VAC, 2. Rated speed: 1600rpm, maximum speed: 4000rpm 3. Rated torque: 360N·m, maximum torque: 950N·m 4. Rated power: 60kW, maximum power: 120kW 5. Insulation class: H grade, protection class: IP67
6. Cooling method: Water cooling
7. Dimension: Φ336×360mm

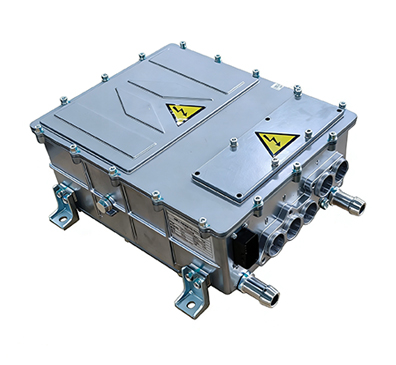

Controller Parameters:
Rated capacity 75KVA
Max. capacity 135KVA
Voltage range 420-720V Rated input current 176A
Volume: 385mm*308mm*148.3mm
Weighe(Kg) <=10Kg
60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain
╣PRODUCT ADVANTAGES
1. Compact with High Output
Much higher torque density than traditional induction motors.
2. Low Power Consumption & Longer Range
Reduced energy loss leads to longer operating range.
3. High Reliability, Low Maintenance
Fully sealed structure ensures excellent durability and low maintenance.
4. Superior Control Precision
Resolver feedback provides better accuracy for precision equipment.
60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain
60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain
1. High-Power Output
Designed for high-load and high-speed applications.

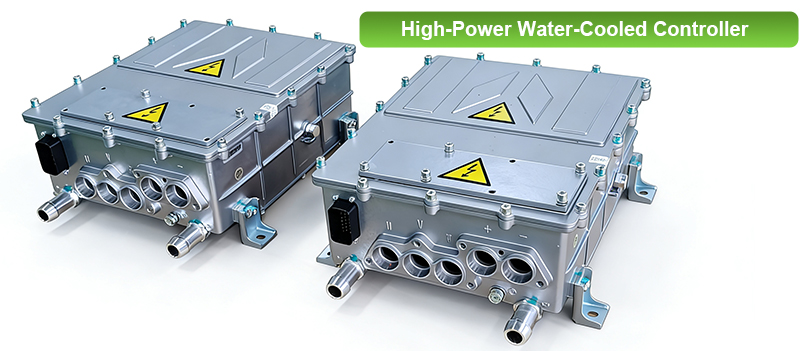

2. High-Efficiency Water Cooling
Water-cooling ensures stable temperature and continuous high-power output.
3. Integrated Die-Cast Aluminum Shell
Superior heat dissipation with lightweight structure.
4. IP67 Protection
Fully water- and dust-proof for harsh environments.
5. Multiple Built-In Protections
Comprehensive protection from over-current, over-temperature, etc.
60kW PMSM Traction Motor and 75kW Motor Controller for EV Powertrain
