CTS Dual Purpose 24V LiFePO4 Lithium Battery for Cold Crank/Truck Parking Air Conditioner
CTS 24V Start-Parking Battery is specially designed for 24V trucks and commercial vehicles. As a true “dual-mode power guardian,” it combines both starting and parking power functions in one unit. This all-in-one solution saves space and costs while fully meeting the diverse power needs of truck drivers.
╣PRODUCT DESCRIPTION

Six Major Pain Points — One Solution

✅ Cold Start at Low Temperatures
Built-in powerful heating system with driving heat & scheduled heating ensures reliable cold starts.

✅ Reliable Power Supply
A-grade automotive cells, true capacity, air conditioning runs all night, worry-free appliance usage.

✅ Frequent Start-Stop without Power Loss
Proprietary start-stop BMS supports high-current start without damaging
the battery — lifespan up to 10 years.

✅ Triple Emergency Start for Safety
Supports physical button, mobile app, and manual strong-start. Even if the BMS is damaged,
as long as there’s power, the vehicle can still start.

✅ Explosion-Proof & IP67 Protection
Coal-mine-grade explosion-proof design, separate battery & electrical compartments,
waterproof, dustproof, and anti-theft.

✅ Assured Quality & Warranty
Certified by IATF16949 global automotive quality system, 3 years warranty.
CTS Dual Purpose 24V LiFePO4 Lithium Battery for Cold Crank/Truck Parking Air Conditioner
Model
CTS5000T
CTS7000
Voltage
25.6V/ 20V~28.8V
25.6V/ 20V~28.8V
Capacity
206Ah
280Ah
Energy
5274Wh
7168Wh

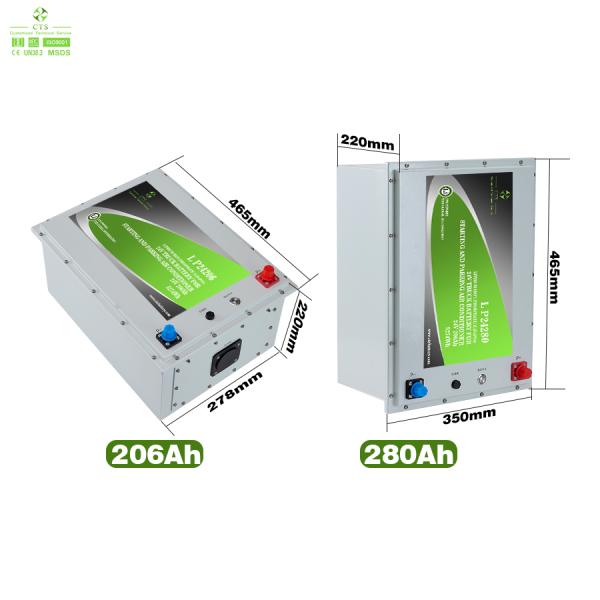

Dimensions
465*278*220(mm)
465*350*220(mm)
Max continuous discharge current
200A
200A
Maximum starting current
2500A(500ms)
2500A(500ms)
Protection level
IP67
Operating temperature
-30℃~60℃
Charging temperature
0℃~60℃
When the temperature is below 0℃,
it needs to be heated to above 0℃ before charging.
Intelligent functions
4G/remote positioning + scheduled heating
Cycle life
>3000 cycles
Warranty
3 years
╣PRODUCT ADVANTAGES

Key Features of Truck Conditioner LiFePO4 Battery

1. Durable IP67 Stainless Steel Casing: Provides robust protection against dust and water, making it ideal for use in harsh truck environments.
2. Integrated Battery Management System (BMS): Optimizes performance and provides real-time monitoring, ensuring safe and efficient operation.
3. Temperature Protection: Equipped with multi-temperature sensors for both high and low-temperature protection, keeping the battery functioning at its best.
4. Maintenance-Free & Plug-and-Play: Easy to install as a drop-in replacement for traditional Lead-Acid, SLA, GEL, or AGM batteries, ensuring hassle-free operation.
5. Communication Protocols: Includes CANBus, MODBus (RS485/232), UART, and Bluetooth options for advanced monitoring and integration.

Custom Solutions for Your Truck Conditioner

CTS Battery OEM battery pack can be customized for 24V, 25.6V, or 26V applications to perfectly suit your truck’s requirements. Whether you need slight modifications to the current design or a completely new custom solution, we’ve got you covered.

╣APPLICATIONS
A dual-mode power guardian specially designed for 24V truck and lorry platforms.Itintegrates both starter battery and parking battery functions in one, saving space and cost while meeting all power needs of truck drivers.
Trucks / Lorries RVs / Campervans Boats / Yachts
Mining / Engineering Machinery
✅Smooth vehicle start, no more breakdowns
✅ Reliable power for appliances, enjoy road life
✅Safety guarantee in harsh environments
