Specifications
Description
Electric Boat Battery LiFePo4 Battery Module 51.2V 280Ah With PDU Box
╣PRODUCT DESCRIPTION
CTS 51.2V 280Ah Marine LiFePo4 Battery Module:
✅ Grade-A LiFePO4 cell, with ≥6000 cycles lifespan, ensuring exceptional stability.
✅ Designed for marine applications, undergoing DNV certification, equipped with explosion-proof valve, heating input/output, and cooling support for harsh sea conditions.
✅ High-precision BMS for real-time voltage, current, and temperature monitoring, preventing overcharge,over-discharge, and thermal runaway.
✅ Standard module with PDU for controlling dual battery packs, supporting GBT/CCS1/CCS2 charging standards.

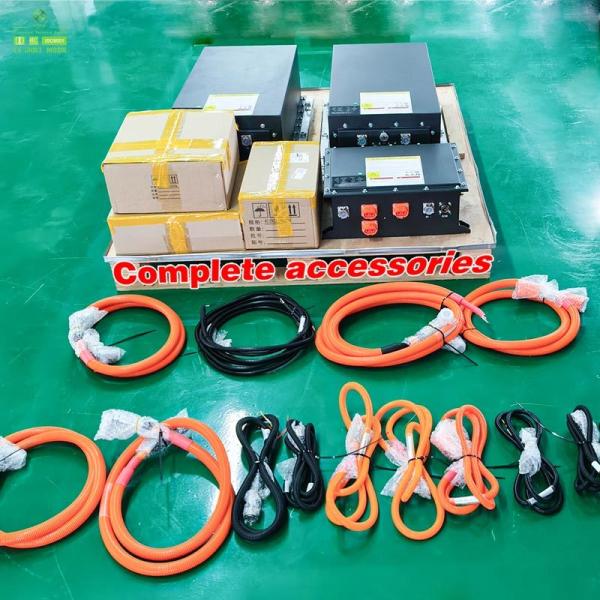

✅ Comes with cables, charging socket, and other accessories for ready-to-use installation.
CTS Electric Boat Battery Module 51.2V 280Ah With PDU Box For Marine Application
MODEL No.
CTS51280
ELECTRICAL SPECIFICATIONS
Cell Type - Chemistry
Prismatic lifepo4 cell - 280Ah, 1P16S
Rated Capacity
280Ah
Rated Voltage
51.2V
Energy
14.33Wh
Dimensions (L x W x H)
L870*W500*H242 mm
Weight
About 110Kg
Housing Material
Lower case aluminum alloy,
upper cover stainless steel
Enclosure Protection
IP67
DISCHARGE/CHARGE SPECIFICATIONS
Discharge Cut-off Voltage
40V
Max Continuous Discharging Current(@25℃)
280A max
Peak Discharge Current(@25℃)
560A for 30 seconds
Charging Limited Voltage
58.4V
Max Charging Current(@25℃)
140A
Recommend Charge Current (@25℃)
Less than 140A
TEMPERATURE SPECIFICATIONS
Charge Temperature Range
0~45℃
Discharge Temperature Range
-20~55℃
Recommended Operating Temperature
15~35℃
Storage Temperature & Humidity Range
(Less than 1 month)
-20~35℃, 45~75%RH
Storage Temperature & Humidity Range
(Less than 1 month)
-10~35℃, 45~75%RH
Recommended Storage Temperature & Humidity Range
15~35℃, 45~75%RH
Other
Cooling Method
Build in Pi heating film,
Build in liquid cooling plate

* Global on-site technical support.
