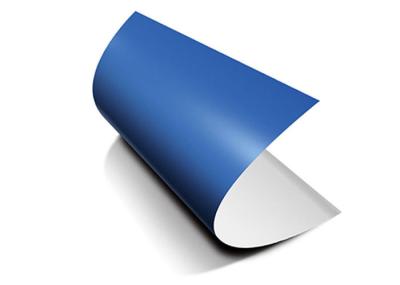

Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Specifications
Brand Name :
Yinber
Model Number :
FP-200
Certification :
ISO9001~2000
Place of Origin :
China
MOQ :
3,500m²
Price :
$1.5-2.8 per m²
Payment Terms :
L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability :
100,000m² per months
Delivery Time :
20-30 days
Packaging Details :
Export carton with pallets for sea shipping well support the forklift, about 30,000m²/20 GP.
substrate :
aluminum plate
resolution :
200LPI
dot reproduction :
1~99%
run length :
up to 100,000 impressions unbaked, up to 200,000 impressions baked
uv laser energy required :
50-70mj/cm²
thermal laser energy required :
110-150mj/cm²
Gauge :
0.15-0.40mm
coating :
single layer
Description

Item name: ctp printing plates 405nm 200LPI aluminum substrate run length up to 100,000 impressions

Gauge: 0.15~0.40mm

Model NO.: FP-100

Color: Blue

Max Width: 1360

Transport Package: Export Standard Seaworthy Package

Spectral Sensitivity: 830nm

Material: Aluminum

Usage: Offset Printing, Digital Printing

Exposure Energy: 50~70mj/Cm2

Specification: 0.15mm 100pcs/box; 0.25mm 50pcs/box; 0.30mm 50pcs

HS Code: 3701302400

Developing Time: 25+/-5sec

Type: CTP Plate

Shelf Time: 18 Monthes

Trademark: Yintech

Resolution: 1~99% at 200lpi

Style: Positive

Developing Temperature: 23+/-2 Degree

Origin: China (Mainland)

FUCAI CTP Plate(Thermal VS UV PS Plate)
Aluminum CTP Printing Plates 200LPI Resolution Single Layer Coating
Technical specification
Products Type (FP-100)
Positive Thermal Plates		 (FP-200)
UV Plates
Durable Rate 50,000~100,000 impressions unbaked;
>=100,000 impression baked;		 >=100,000 impressions
Thickness 0.27mm, 0.15mm 0.27mm, 0.15mm
Sensitive wavelength 830nm 405nm
Laser energy required 110~150mj/cm 50~70mj/cm
Resolution 1%~99%@200lpi 1%~99%@200lpi
Baking condition 230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)		 230˚C-250˚C, 5~8 minutes
(by using professional plate baking glue)
Safe lighting 2 hours under fluorescent lamp,
12 hours under yellow safelight		 2 hours under fluorescent lamp,
12 hours under yellow safelight
Storage condition Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%		 Store in dry and cool place, store in 5˚C~30˚C,
Humility <55%
Shelf life 12 months 12 months
Developing time 20sec~30sec 20sec~30sec
Productivity 1800m2~2500m2 1800m2~2500m2
