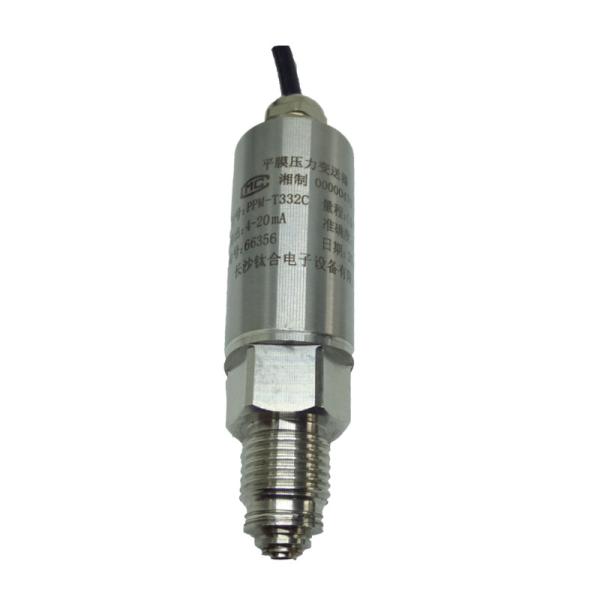

PPM-T332C Pressure Transmitter for High temperature viscous fluid
PPM-T332C Pressure Transmitter for High temperature viscous fluid
PPM-T332C Pressure Transmitter for High temperature viscous fluid
PPM-T332C Pressure Transmitter for High temperature viscous fluid
Specifications
Brand Name :
CSPPM
Model Number :
PPM-T332C
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard export packing, including instructions and certificate
Measured medium :
Non-corrosive gas and liquid to 17-4PH, 316L stainless steel
Pressure type :
Sealed Reference Pressure, Ventilator Pressure
Pressure Range :
0 ～ 6MPa… 10MPa… 150MPa
Power supply :
24VDC (12-32VDC)
Output Signal :
4-20mA, 1-5VDC, 0-5VDC, 0-10VDC are optional
Process connections :
M20 X 1.5,1 / 2NPT
Electrical Connection :
L-connector DIN43650, aviation connector, direct outlet
Non-linearity :
0.05％FS
Repeatability :
0.05％FS
Accuracy :
0.2% FS,0.5% FS optional
Description

0 ～150MPa PPM-T332C Polyurethane Equipment Pressure Transmitter

Product introduction:

PPM-T332C flat film pressure transmitter is made of a special rugged stainless steel flush thick film with high performance intelligent operation compensation circuit.

The all-stainless steel integrated structure ensures that the hard particle impact in the measured medium will not damage the sensor diaphragm.

With anti-blocking, anti-particle impact, anti-vibration and other characteristics, it is suitable for high-temperature viscous and easy to block slurry, field, strong vibration, solid-liquid mixed fluid pressure measurement.

Applications

Mud, coal slurry, pulp, crude oil, asphalt, oil well measuring instruments,
environmental protection chemical coatings, polyurethane equipment,

paint detection systems, food slurry and other solid-liquid mixtures.

Technical Parameters :

Measured medium : Non-corrosive gas and liquid to 17-4PH, 316L stainless steel
Pressure type: Sealed Reference Pressure, Ventilator Pressure
Pressure Range :

0 ～ 6MPa… 10MPa… 150MPa
Power supply : 24VDC (12-32VDC)
Output Signal: 4-20mA, 1-5VDC, 0-5VDC, 0-10VDC are optional
Process connections : M20 X 1.5,1 / 2NPT
Electrical Connection : L-connector DIN43650, aviation connector, direct outlet
Non-linearity:

0.05％FS
Repeatability

0.05％FS
Accuracy : 0.2% FS,0.5% FS optional
Long-term stability 0.2% FS / year (typical value)
Working medium temperature -45℃ ～ +155 ℃
Working Ambient temperature -40 ℃ ～ +125 ℃

Definition of wiring:

Hirschmann Connector
2-wire system 3-wire system
PPM-T332C Pressure Transmitter for High temperature viscous fluid Power supply 1 1
Negative power 2 2
Signal positive 一 3
Direct outgoing
2-wire system 3-wire system
PPM-T332C Pressure Transmitter for High temperature viscous fluid Power supply red red
Negative power black black
Signal positive 一 green

Dimensions in mm :

PPM-T332C Pressure Transmitter for High temperature viscous fluid
