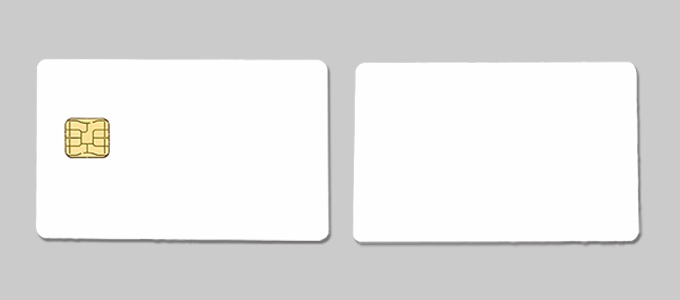

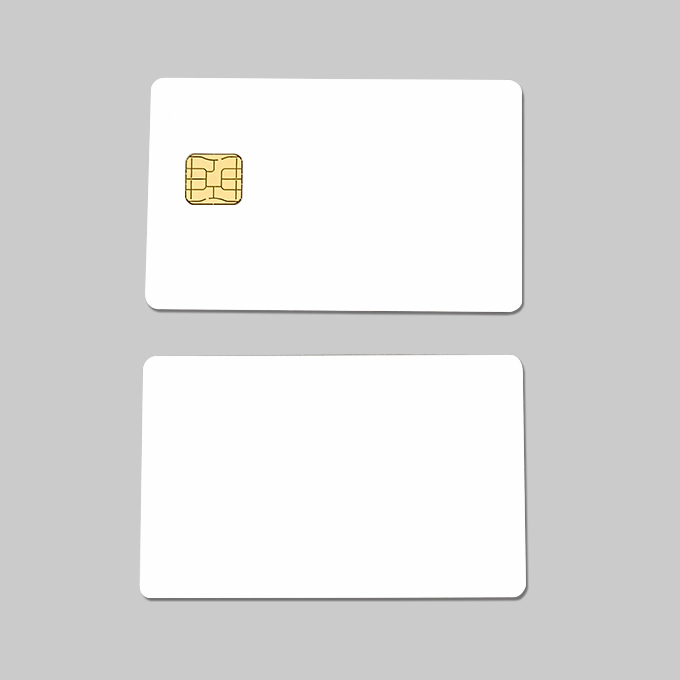

J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications
J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications
J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications
J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications
J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications
J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications
J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications
J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications
Specifications
Size :
86X54mm
Model Number :
J2R180
Price :
$2~$5/pcs
Crafts :
laser engrave,sim cut (2FF,3FF,4FF or 3in1),signature,...
Working temp. :
-20~80℃
Delivery Time :
8-12workdays
Optionals :
programmed as demand
Packaging Details :
200pcs/box
Memory :
180KB
Length :
85.60mm (85.47mm~85.72mm)
Width :
53.98mm (53.92mm ~54.03mm)
Thickness :
0.76mm (±0.08mm)
Certification :
ISO7816
Payment Terms :
T/T
Printing :
Blank or customized printed
Place of Origin :
China
Supply Ability :
50000/week
Material :
White PVC
Brand Name :
CSMTECH
MOQ :
500
Description
SPECIFICATION
Material White PVC
Length (ISO7813 ID-1) 85.60mm (85.47mm~85.72mm)
Width (ISO7813 ID-1) 53.98mm (53.92mm ~54.03mm);
Thickness(ISO7813 ID-1) 0.76mm (±0.08mm);
Surface finished Glossy
Working temp. -20~80℃
Chip Smart MX3 P71
Memory 180KB
Chip size Default 8pin gold;
Interface Contact (ISO7816)
Weight About 5.5g;
Package Neutral packing,200pcs/box,2000/3000pcs per carton;
Optionals Material, surface finish, customized printing, Laser serial number,Punch 2FF/3FF/4FF, 2in1,3in1,….
Application EGovernment, Payment,Transport,Access management,Wearables.
FLASH data retention time Tamb=+55℃,Min=25 years
Intrinsic FLASH endurance(number of programming cycles) Min 1x 105, Typ 5x105 Cycles

J2R180 Java JCOP Smart Card with 180KB Memory ECC Coprocessor and Customized Printing for SIM SAM Applications

Key feather:

The chapter lists features which are available to all JCOP4 P71 products.

JCOP 4 P71 product family features

  • Java Card 3.0.5 Classic
  • GlobalPlatform 2.3([2])(CI v2.0,see [1])
  • GlobalPlatform Secure Channel Protocol 01,02 and 03
  • GlobalPlatform Delegated Management, DAP and Authorized Management
  • Data Encryption Standard (DES) and dual/triple key DES via coprocessor
  • AES via coprocessor
  • RSA via coprocessor
  • ECC via coprocessor
  • Other cryptographic support such as SHA-A, SHA-224,SHA-256,SHA-384,SHA-512 and CRC support
  • Contact interface with T=0 and T=1 protocols according to ISO/IEC7816-3
  • Contactless interface with T=CL protocol according to ISO/IEC 14443 TypeA
  • FIPS certified
  • Additional JCOP4 P71 APIs
  • DRG.3 compliant pseudo-random number generator. Random numbers requested by a function call to the random Data class are acquired from this random number generator. This includes the random challenge values used in the SCP protocols as defined by GlobalPlatform. GRG.3 is the default RNG setting.

JCOP 4 P71 is a conversion platform that supports EMV and SECID applications. It can be used for the following applications:

  • EMVCo payment card
  • Electronic passport( ePP) providing BAC,EACv1 and SAC/PACE support
  • European Citizen Card (EN 15480)
  • European Health Insurance Card (CDA15974-2009E)
  • Fingerprint Match on Card (ISO19794) – MINEX III compliant
  • International Driving License BAP and EAP (ISO 18013)
  • SECID applications such as ePKI, eVR and eRP
  • MasterCard,Visa,American Express,Discover and other payment applications
