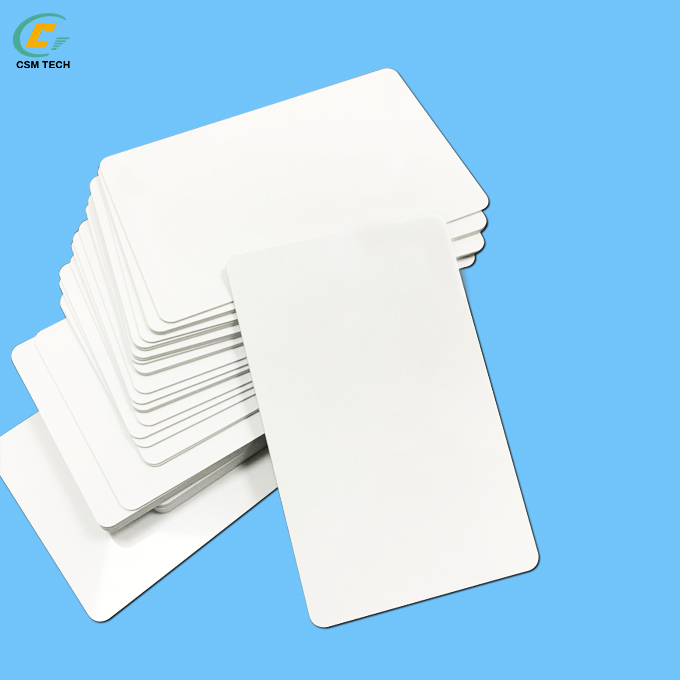

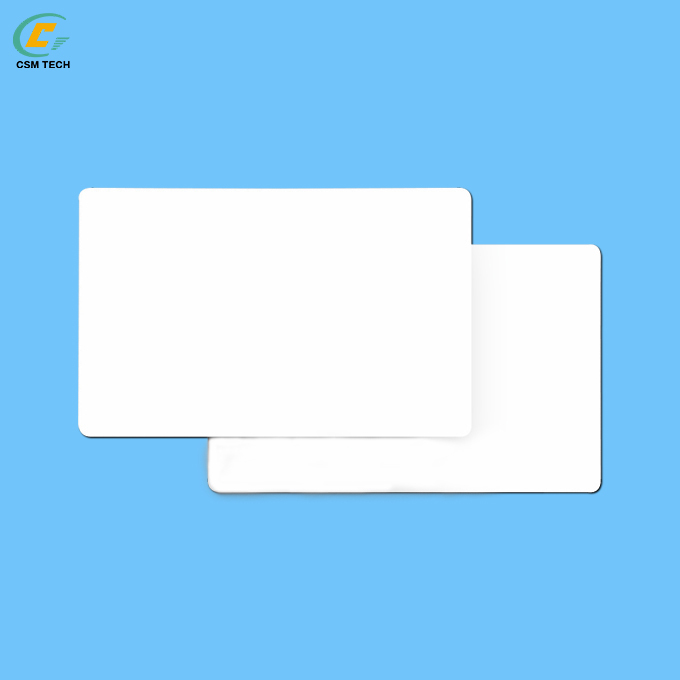

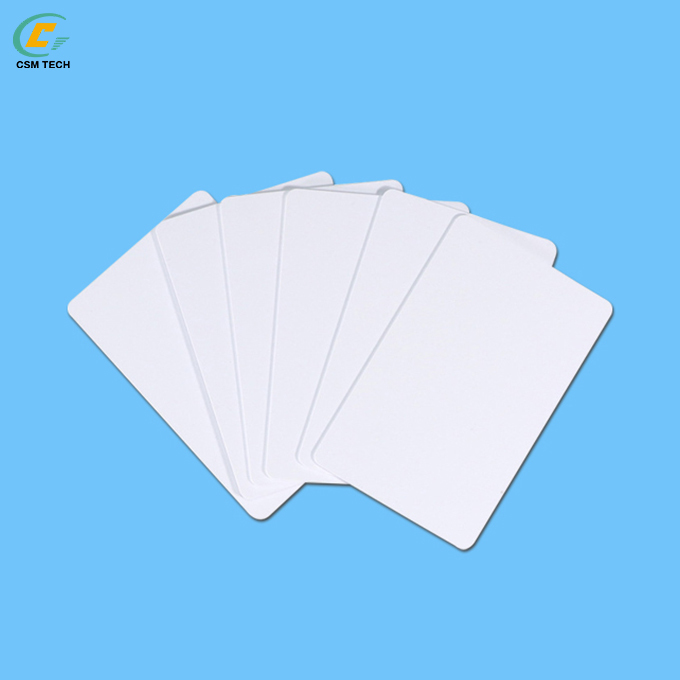

T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control
Specifications
Model Number :
t5577
Price :
$0.45~$1
Packaging Details :
180pcs/box
Payment Terms :
T/T
Frequency :
125KHz
Temperature Resistance :
-40℃ to 80℃
Supply Ability :
20000/week
Size :
85x54mm
Delivery Time :
10-12workdays
EEPROM Memory :
363 Bits
Brand Name :
CSMTECH
Place of Origin :
China
Material :
PVC
MOQ :
200
Thickness :
0.88mm
Description

1. General description

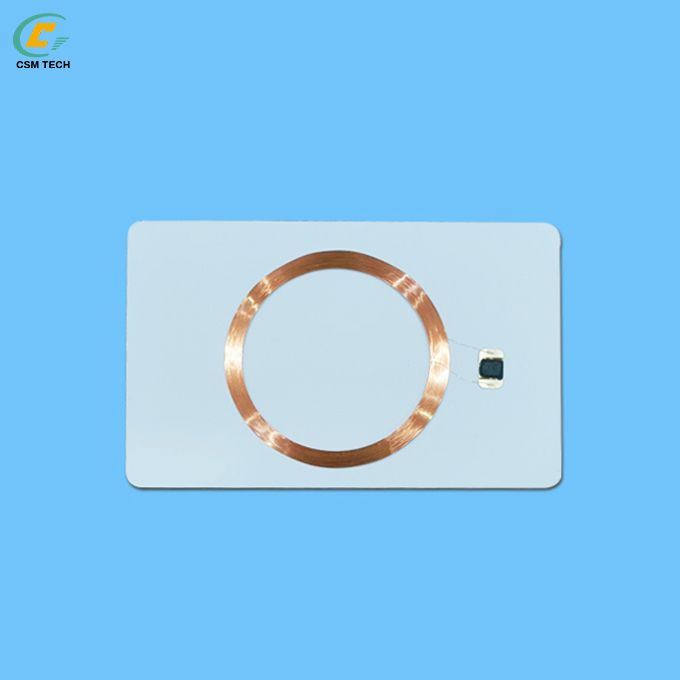

The ATA5577 is a contactless read/write identification IC for applications in the 125-kHz or 134-kHz frequency band. A single coil connected to the chip severs as the IC’s power supply and bi-directional communication interface. The antenna and chip together form a transponder or tag.

The on-chip 363-bit EEPROM (11blocks with 33 bits each )can be read and written block-wise from a base station(reader).

Data is transmitted from the IDIC(uplink) using load modulation. This is achieved by damping the RF field with a resistive load between the two terminals Coil 1 and Coil 2.

The IC receives and decodes serial base station commands(downlink), which are encoded as 100% amplitude modulated(OOK) pulse-interval-encoded bit strams.

T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control

T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control

T5577 Proximity Card with 125KHz Frequency Read & Write Function and White PVC Material for Access Control

Features

  • Contactless Power Supply
  • Contactless Read/Write Data Transmission
  • RF from 100Khz TO 150kHz
  • Basic Mode or Extended Mode
  • Compatible with T5557,ATA5567
  • Configurable for ISO/IEC 11784/785 Compatibility
  • Total 363 Bits EEPROM Memory: 11Blocks (32bits+1 Lock Bit)
  • High Q-antenna Tolerance Due to Build in Options
  • Adaptable to Different Applications: Access Control, Animal ID and Waste Management

2. Parameter

Material White PVC
Color White
Width 85.6+/-0.3mm
Height 53.98+/-0.3mm
Thickness 0.86+/-0.3mm
Peel strength >0.46N/mm
High temperature resistance 80℃
Low temperature resistance -40℃
Optional crafts Material,Size,thickness,offset printing, silkscreen printing, laser engraving, etc.

3. Applications

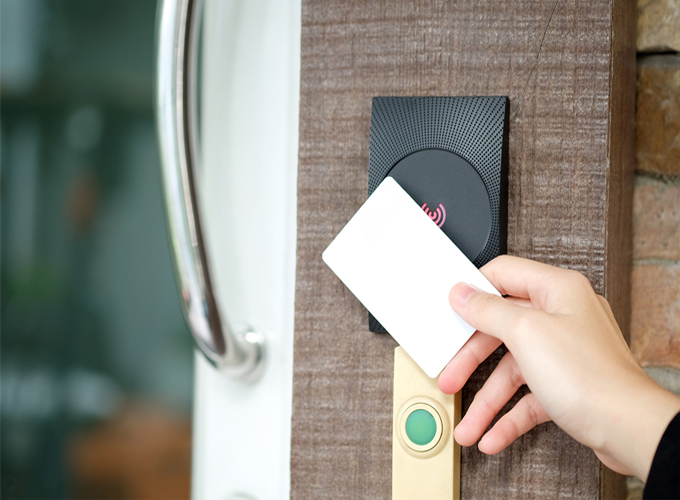

  • Access Control, Animal ID and Waste Management
  • customized printing logo,program 26bit 1386
