Small 12 Inch Cutter Head Sand Mining Dredge for Sale
Small 12 Inch Cutter Head Sand Mining Dredge for Sale
Small 12 Inch Cutter Head Sand Mining Dredge for Sale
Small 12 Inch Cutter Head Sand Mining Dredge for Sale
Small 12 Inch Cutter Head Sand Mining Dredge for Sale
Small 12 Inch Cutter Head Sand Mining Dredge for Sale
Small 12 Inch Cutter Head Sand Mining Dredge for Sale
Small 12 Inch Cutter Head Sand Mining Dredge for Sale
Specifications
Brand Name :
yongsheng
Model Number :
csd300
Place of Origin :
china
MOQ :
1
Price :
182529usd/piece
Payment Terms :
T/T,L/C
Supply Ability :
100piece/Year
Delivery Time :
60 work days
Packaging Details :
Container
Customized :
customized
Condition :
new
Warranty :
1 year
Water Flow :
1200-1500m3/h
Solid Capacity :
240 cbm/h
Max.Dredging Depth 45° :
10m
Discharge Distance :
1100m
Dredger After Assembly :
28.5*5.5*1.5m Length*width*depth
Dredger Structure :
Can Be Assembly in Working Site
Average Draught :
1m
Diameter Discharge Pipe :
300mm/12inch
Total Power :
591 kw
Main Engine :
447 kw
Auxiliary Engine Power :
120kw
Generator :
16 kw
Hydraulic Cutter Powerr :
55 kw
Description

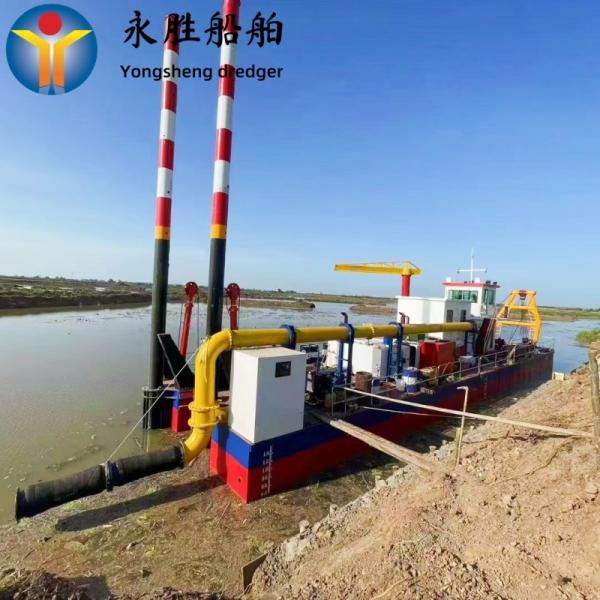

Small 12 Inch Cutter Head Sand Mining Dredge for Sale

cutter suction dredger series dredgers can be applied to many kinds of geologic structures and

can be widely used in mineral digging, port dredging and reclamation works. By absorbing advanced

technology of Dutch and American related products, this series of dredgers show their characteristics

of rational design, all hydraulic driven, simple operation, little maintenance and strong power. The capacity

of JLCSD dredgers range from 100m3/hr to 6000m3/hr, dredging depth from 1m to 25m and discharge

distance from 500m to 3000m, which can satisfy different work demands.


Model list for hydraulic cutter suction dredger
Model Inch

Diameter

pipe

Water

flow

 Solid
capacity

Total

power

Dredging

depth

Discharge

distance
YSCSD150 6 Inch 150 mm 260 m3/h 30 cbm/h 102 KW 4m 600 m
YSCSD200 8 Inch 200 mm 600 m3/h 80 cbm/h 213 KW 6m 800 m
YSCSD250 10 inch 250 mm 1,000 m3/h 160 cbm/h 367 KW 8m 1,100 m
YSCSD300 12 inch 300 mm 1,500 m3/h 240 cbm/h 591 KW 10 m 1,100 m
YSCSD350 14 inch 350 mm 2,400 m3/h 360 cbm/h 971 KW 12m 1,200 m
YSCSD400 16 Inch 400 mm 3,000 m3/h 500 cbm/h 1,057 KW 14m 1,400 m
YSCSD450 18 Inch 450 mm 3,500 m3/h 700 cbm/h 1,462 KW 15m 1,500 m
YSCSD500 20 Inch 500 mm 3,800 m3/h 760 cbm/h 1,648 KW 15m 1,600m
YSCSD600 24 Inch 600 mm 6,000 m3/h 900 cbm/h 2,511 KW 15m 1,800 m
YSCSD650 26 Inch 650 mm 7,000 m3/h 1,400 cbm/h 3,705 KW Max.18m 1,800m


Small 12 Inch Cutter Head Sand Mining Dredge for Sale

Small 12 Inch Cutter Head Sand Mining Dredge for Sale

Small 12 Inch Cutter Head Sand Mining Dredge for Sale


* Long-time after-sales service
* Rational and practical design according to customers' request
* Field site service
* Within warranty period, free repair if quality problems emerge.
* Free training of operation and maintenance.
* Supply high quality accessories in low price.
* We make an excellent filing of customers for long-term following-up service.

FAQ:
Need for reply:
1. How many cubic meter per hour for the clear water flow?
2. How many meters for the dredging depth?
3. How many meters for the discharge distance?
4. Will you use the dredger in the river,lake,sea or channel?
