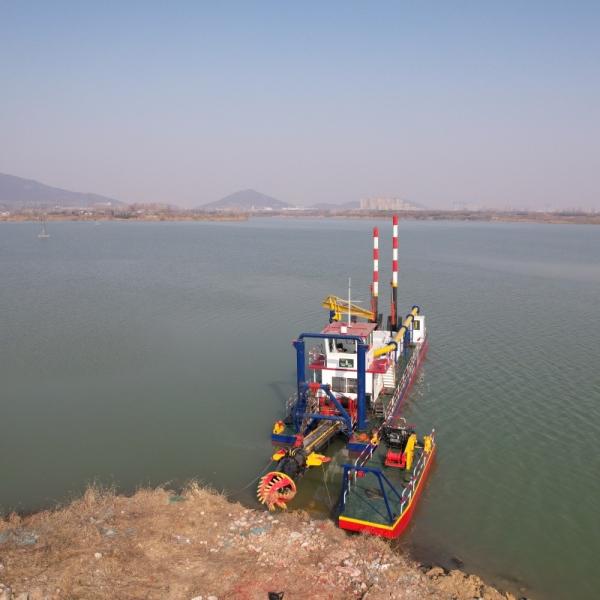

450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging
450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging
450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging
450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging
450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging
450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging
450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging
450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging
Specifications
Brand Name :
yongsheng
Model Number :
YSCSD400
Place of Origin :
shandong
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
50days
Packaging Details :
container
Diameter pipe :
450mm
Water flow :
3,500 m3/h
Solid capacity :
700 cbm/h
Main Engine :
1,007 kw Cummins engine
Max. dredging depth 45° :
15m
Discharge distance :
1,500 m
Generator :
30 kw
Hydraulic cutter power :
160 kw
Description

solid capacity 700 cbm/h hydraulic cutter suction dredger for dredging

product description

As the core equipment in modern dredging projects, the Yongsheng Cutter Suction Dredger integrates

German hydraulic systems and Kawasaki Heavy Industries' dredge pump technology, achieving an

ultra-high operational efficiency of 4,500 m³/h. Its patented serrated cutter head can break rocks with

hardness up to Class N, combined with an intelligent depth control system (accuracy: ±10 cm), making

it particularly suitable for large-scale port construction and deep-water channel maintenance.


product parameters

YSCSD450 solid capacity 700 cbm/h hydraulic cutter suction dredger

Technical specifications

Water flow

3,500 m3/h

Solid capacity

700 cbm/h

Max. dredging depth 45°

15 m

Discharge distance

1,500 m

LOA

43.5 m

Dredger after assembly

43.5*7.5*2 m Length* width* depth

Dredger structure

Dismantle type and can be assembly in working site

Average draught

1.2 m

Diameter discharge pipe

450mm/18 inch

Main Engine

1,007 kw Cummins engine

Rotate speed

1800 r/min

Auxiliary engine power

425 kw Cummins engine

Generator

30 kw

Hydraulic cutter power

160 kw

Total power

1,057 kw


450mm Solid Capacity 700  cbm/h  hydraulic Cutter Suction Dredger for Dredging



Technical Highlights:
• Modular Design: The hull can be disassembled for transportation, enabling operations in remote areas
• Eco-Friendly Configuration: Equipped with oil-water separators and noise suppression devices
• Remote Monitoring: Supports real-time operational data transmission via satellite

Common Applications

  • Waterway Maintenance: Removing silt to ensure navigability

  • Port Expansion: Dredging basins and foundation trenches

  • Land Reclamation: Pumping sand for coastal development

  • Sand Mining: Extracting riverbed aggregates


company profile

Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City, Shandong

Province, China. It has 2 production bases , total area near 2000m2, and more than 20 years manufacturing

experience in water area environmental protective equipment. It is a professional supplier of integrated with

R&D, consultation, manufacturing and after-sale service. Yongsheng now has obtained certification: ISO9001.
