900 cubic meters solid capacity 20 inch cutter suction dredger for sale

product description

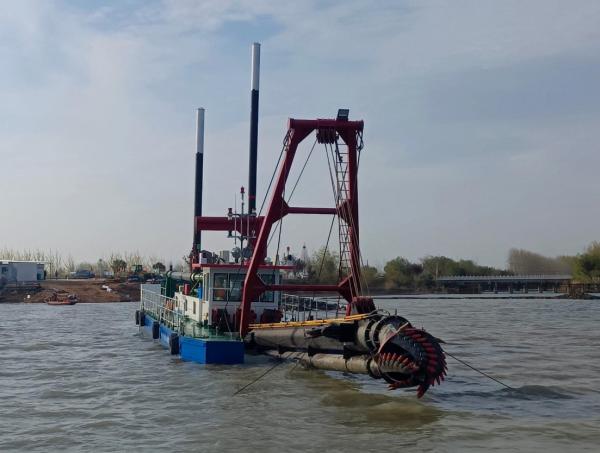

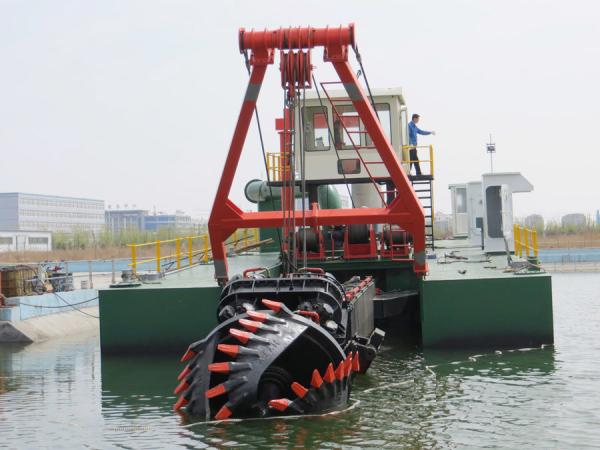

Cutter suction dredger is a large-scale engineering vessel with high efficiency and continuous operation,known as

the "heavy tool of dredging engineering". It is widely used in the fields of waterway dredging,port expansion, artificial

island construction and water conservancy engineering through the three-in-one working process of "crushing-suction

-transportation".

product parameters

Core working principle
"Turning" - cutting and stirring

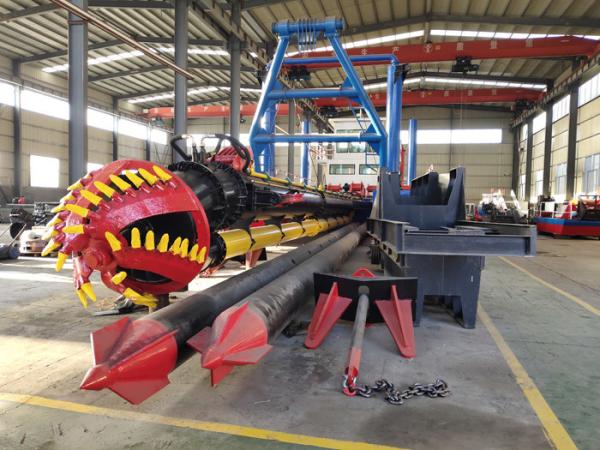

A giant rotating auger head covered with high-strength alloy teeth is installed at the front of the hull.

The auger rotates at high speed (the speed can be adjusted for silt, sand, and rock formations), powerfully cutting

and crushing the bottom sediments, so that they are mixed with water into high-concentration mud.

"Suction" - vacuum suction

The suction port is connected to the center or rear of the auger, which is directly connected to a high-power centrifugal

mud pump.

The mud pump generates negative pressure and instantly sucks the chopped mud into the pipeline.

"Discharge" - long-distance transportation

The mud is pressurized and transported through a sealed mud discharge pipeline, and the distance can reach tens

of kilometers.

Relying on the on-board mud pump + onshore relay pump station for pressurization, it is finally discharged to the

reclamation area (such as land reclamation block) or deep-sea mud dumping area.

Technical features
Efficient and continuous operation: The cutter suction dredger can work 24 hours a day, and its efficiency is far

higher than that of grab or chain bucket dredgers.

Adapt to complex geology: By replacing the auger head, it can cope with soil layers of different hardness and even

break rocks.

Environmental protection: It can control the spread of mud and reduce the impact on the water ecology.

High degree of automation: Modern ships are equipped with intelligent control systems to monitor dredging depth,

concentration and other parameters in real time.

company profile

Shandong yongsheng dredging machinery Co.,LTD.is located in Huanglou Street, Qingzhou City, Shandong

Province, China. It has 2 production bases , total area near 2000m2, and more than 20 years manufacturing

experience in water area environmental protective equipment. It is a professional supplier of integrated with

R&D, consultation, manufacturing and after-sale service. Yongsheng now has obtained certification: ISO9001.
