900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes
900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes
900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes
900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes
900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes
900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes
900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes
900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes
Specifications
Brand Name :
yongsheng
Model Number :
YSJSD250
Place of Origin :
shandong
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
40days
Packaging Details :
container
Capacity :
150-180m3/h
Water flow :
900m3/h
Dredging depth :
10m
Discharge distance :
800m
Main engine :
294KW
Auxiliary engine :
88KW
Fuel consumption :
60L/H
Dimension(L*W*H) :
17*5*1.2m
Description

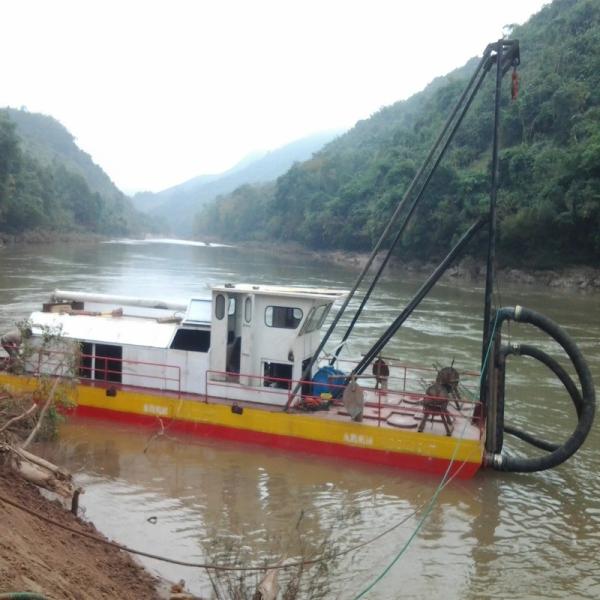

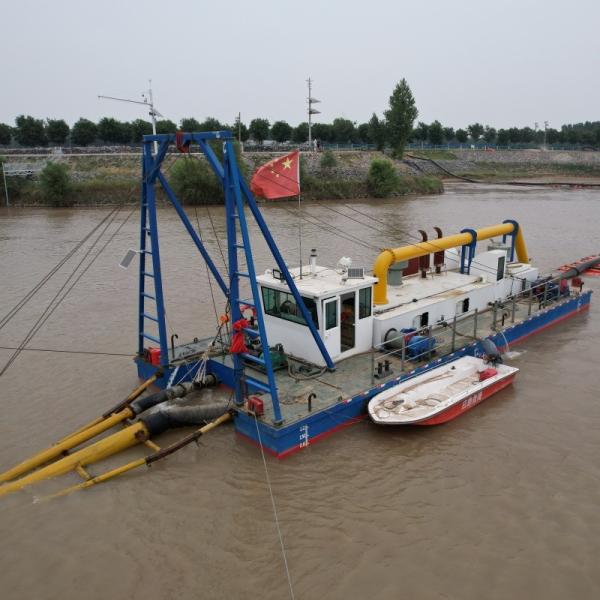

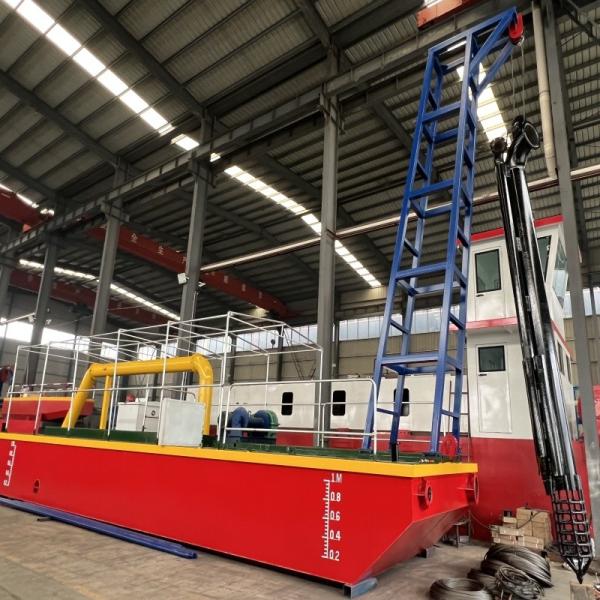

900m3/h flow rate jet suction dredger for small rivers and lakes

product description

A jet suction ship (also known as a jet suction sand pump or a jet suction sand pump) is a water dredging equipment that

uses high-pressure water jets to impact silt and then uses a sand suction pump to suck out the slurry. It is widely used in

river dredging, port dredging, reservoir sand mining, sea reclamation and other projects. Its core feature is the "one impact

and one suction" working mode, that is, the silt is dispersed by a high-pressure water gun, and then sucked and transported

to a designated location by a sand suction pump.

product parameters

Model

Capacity

Water flow

Dredging depth

Discharge distance

Main engine

Auxiliary engine

Fuel consumption

Dimension(L*W*H)

YSJSD150

40-50m3/h

250m3/h

6m

500m

120KW

/

18L/H

10*3.8*1

YSJSD200

80-100m3/h

500m3/h

8m

500m

176KW

60KW

40L/H

14*4.5*1.2m

YSJSD250

150-180m3/h

900m3/h

10m

800m

294KW

88KW

60L/H

17*5*1.2m

YSJSD300

200-250m3/h

1400m3/h

10m

1000m

456KW

110KW

80L/H

20*6*1.5m

YSJSD350

300-400m3/h

2000m3/h

12m

1500m

735KW

220KW

120L/H

24*6.6*1.6m

YSJSD400

400-500m3/h

2600m3/h

14m

1500m

882KW

330KW

150L/H

24*7.2*1.8m

YSJSD450

500-600m3/h

3000m3/h

14m

1500m

1103KW

406KW

200L/H

26*7.6*2m

YSJSD500

600-700m3/h

3800m3/h

14m

1500m

1250KW

456KW

240L/H

26*7.6*2m

The above technical parameters are for reference only,specific device configuration depends on the conditions of each

project,customer and technical requirements.



900m3/h Flow Rate Jet Suction Dredger For Small Rivers And Lakes


Workflow
High-pressure water sand flushing: High-pressure water guns impact the riverbed to loosen the sand and form mud
Sand suction pump suction: The sand suction pump sucks the mud into the pipeline
Mud transportation: Transport to the shore, barge or reclamation area through pipelines



Application
River/port dredging: remove silt to ensure smooth waterways

Reservoir desilting: prevent siltation and extend the life of reservoirs

Sand mining: mining of sand for construction

Land reclamation: land reclamation by filling, such as coastal development zone construction
