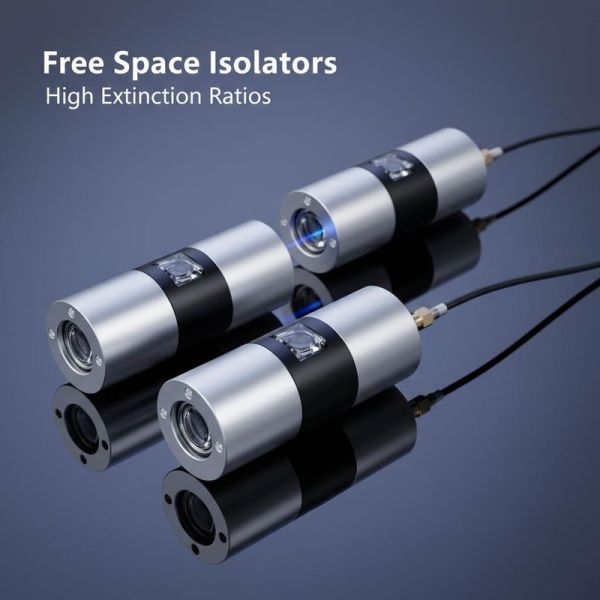

Free Space Isolators-high extinction ratios
Free Space Isolators-high extinction ratios
Specifications
Brand Name :
crystro
Place of Origin :
china
Model Number :
CR-2026-15-01
Name :
Free Space Isolator
Operatingtemperature :
-10°C to 50°C
Mountingtype :
Free-space
Mounting :
SM1 (1.035-40) Thread
Isolation :
>35dB
Optical Power :
10,30,50,100W
Tunable Wavelength Range :
+/-15nm
Returnloss :
≥ 50 dB
Isolationtype :
Non-reciprocal
Transmission :
>92%,>90%
Wavelengthrange :
1064 nm ± 10 nm
Insertionloss :
≤ 1.0 dB
Isolationratio :
≥ 30 dB
Polarizationdirection :
Linear
Description

Free Space Isolators-high extinction ratios

1. Excellent Unidirectional Isolation Performance
Non-reciprocal Faraday rotation design delivers industry-leading high isolation, completely blocks back-reflected light, stray light and optical feedback, eliminates mode hopping, power jitter and frequency drift of the laser oscillator.
2. Ultra-Low Optical Transmission Loss
Optimized anti-reflection coating and crystal processing technology guarantee minimal signal attenuation for forward light, maximum laser energy utilization efficiency.
3. Outstanding High-Power Endurance
Adopted high-quality low-thermal TGG magneto-optic material, effectively suppress thermal lens effect under high-power laser input, excellent thermal stability, suitable for high-power industrial laser scenarios.
4. High Mechanical Stability & Easy Integration
Monolithic precision CNC metal structure, dust-proof, shock-resistant and vibration-proof design, standardized mounting interface, easy to install, align and integrate into existing optical platforms.
5. Compact & Space-Saving Structure
Miniaturized streamlined appearance, saves optical path layout space, reserved double escape window design for flexible optical arrangement.
6. Wide Environmental Adaptability
Wide operating temperature range, long service life, zero maintenance, reliable long-term continuous operation.
