High-Grade TSAG Level TGG Magneto-Optical Crystal, Terbium Gallium Garnet for Faraday Isolators & Rotators, 400–1100nm Transmission
High-Grade TSAG Level TGG Magneto-Optical Crystal, Terbium Gallium Garnet for Faraday Isolators & Rotators, 400–1100nm Transmission
High-Grade TSAG Level TGG Magneto-Optical Crystal, Terbium Gallium Garnet for Faraday Isolators & Rotators, 400–1100nm Transmission
High-Grade TSAG Level TGG Magneto-Optical Crystal, Terbium Gallium Garnet for Faraday Isolators & Rotators, 400–1100nm Transmission
Specifications
Transmittance range :
400nm~1100nm
Diameter tolerance :
0.00/-0.05mm
Damage hresholo :
>10J/cm2@1064nm 10ns 10KHZ
Melting point :
1725°C
Length tolerance :
±0.1mm
Coating :
AR,R<0.2%@1064nm
Model Number :
MCR-2026-6-26-01
Lattice parameters :
a=12.355A
Delivery Time :
4-5weeks
Hardness :
8.0
Directional accuracy :
[111]±15'
Wiedemann constant (rad/T/m) :
40@ 1064nm
Extinction ratio :
>30dB
Navefront distortion :
<λ8@633nm
Place of Origin :
China
Growth pattern :
Czochralski
Payment Terms :
T/T, Western Union,MoneyGram,Paypal
Density :
7.13g/cm3
Brand Name :
Crystro
Molecular formula :
Tb3Ga5O12
Description

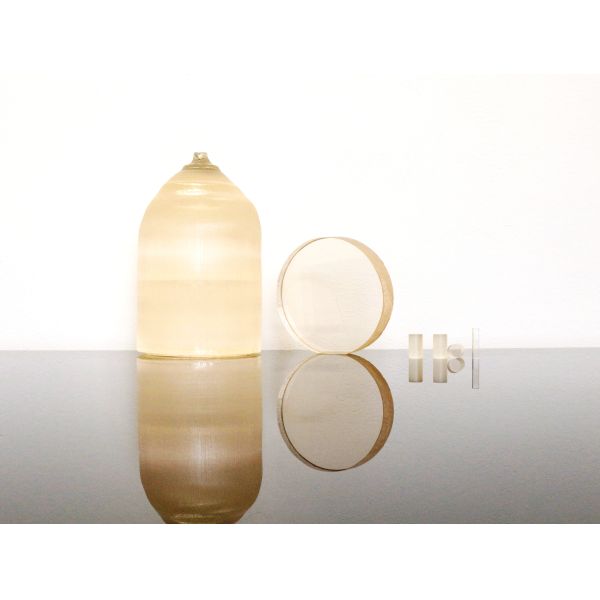

High-Grade TSAG Level TGG Magneto-Optical Crystal, Terbium Gallium Garnet for Faraday Isolators & Rotators, 400–1100nm Transmission (Excluding 475–500nm), 4 Inch TGG Boules Available from Crystro

Terbium gallium garnet (TGG) crystals are a high-performance magnetoelectric crystal operating within the visible and near-infrared spectral range. They are extensively used in laser technology, optical communication, and optical information processing. TGG crystals possess characteristics such as high Feld constant, low optical absorption coefficient, high laser damage threshold, and excellent optical properties. These favorable material properties make TGG crystals an ideal material for applications in magnetoelectric isolators. In recent years, growing large-sized, high-quality TGG crystals has been a prominent research topic in both domestic and international crystal material fields. Through relentless efforts by the development team, Corisun successfully grew a TGG crystal with a diameter of 100 mm in June 2020. The product has received international customer certification (Faraday isolator for a 100 J/10 Hz pulsed laser – Anhui Corisun Crystal Material Co., Ltd.).

Technical Parameters:

Chamfer 0.10mm@45°
Flatness <λ10 @ 633nm
Parallelism <30"
Verticality ＜5‘
surface finish 10-5
Maximum size Φ100mm

Main Features:

Wiedemann constant (40 rad/T/m @ 1064 nm)
Absorption coefficient (<0.1%/cm)
Thermal conductivity (7.4 W/m/K)
Laser damage threshold (>1 GW/cm2)

Typical Applications:
Fiber Optic Isolator
Free Space lsolator
Crystro can provide TSAG grade TGG
