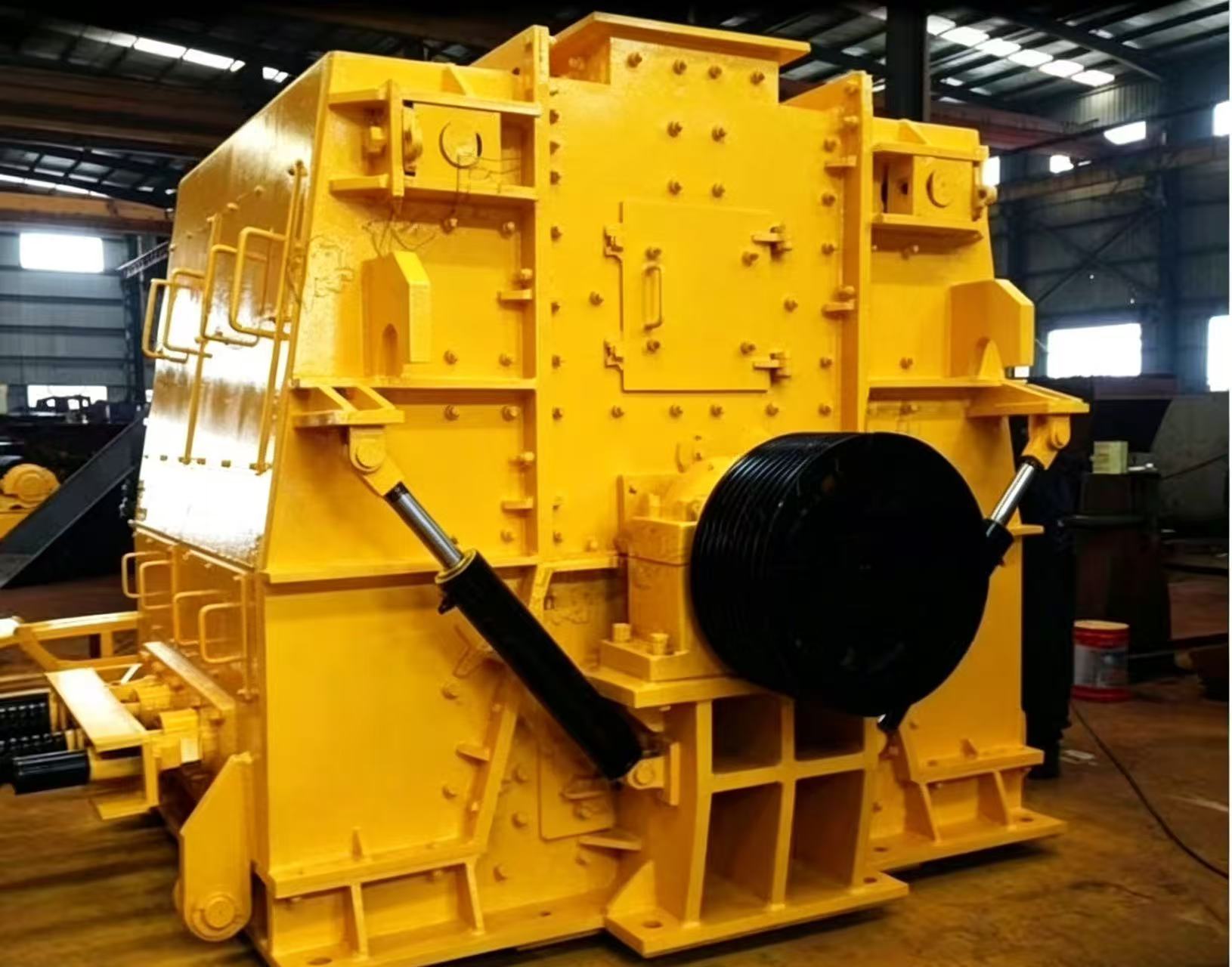

PCK1214 is a small and medium-sized energy-saving reversible hammer crusher in PCK series, specially designed for small-scale crushing projects with limited site and moderate output demand. Equipped with φ1200*1400mm standard rotor, fixed rotor speed 1000r/min, matched 200KW energy-saving motor, stable hourly output of 32-64t/h. Consistent with the whole series of standard parameters, it supports max 100mm feeding granularity and fixed 3-6mm fine discharging. It inherits the classic reversible bidirectional rotation technology, effectively solving the problems of fast hammer wear and high energy consumption of small ordinary crushers. The whole machine weighs only 12.6t, with compact overall dimension of 4276*3021*2050mm, covering small floor space, no need for large-scale foundation construction. With low operating power, low vibration and convenient daily maintenance, PCK1214 reversible hammer crusher is the most cost-effective fine crushing equipment for small coal processing plants, small aggregate yards and decentralized construction waste recycling projects.

The 200KW energy-saving motor drives the φ1200*1400mm rotor to run efficiently at 1000r/min. Small and medium-sized materials such as lump coal, small-grained limestone and shale within 100mm are fed into the compact crushing cavity. Through high-speed reversible hammer impact and fine grinding, bulk materials are quickly refined. The bidirectional rotation function realizes full utilization of hammer head double sides, avoiding energy waste and wear loss caused by unilateral operation. The optimized small cavity structure has no material dead angles, effectively preventing material blocking. After circulating crushing, materials are uniformly refined to 3-6mm fine particles and discharged smoothly. The low-power high-efficiency parameter design ensures low unit energy consumption while guaranteeing crushing effect, realizing energy-saving and high-efficiency fine crushing.

• Energy-saving & Low Operating Cost 200KW low-power matching, optimized 1000r/min speed parameter, low unit crushing energy consumption, saving long-term electricity cost for small production lines.
• Compact & Space-saving 12.6t light-duty fuselage and compact overall dimension, small floor space, suitable for small factories and limited site layout.
• Cost-effective Fine Crushing 32-64t/h stable output meets small-scale production demand, with low equipment investment and low maintenance cost, high comprehensive cost performance.
• Flexible & Stable Operation High-speed rotor design ensures fine crushing effect, reversible rotation reduces failure rate, no blocking, no material leakage in daily operation.
• Wide Small-material Adaptability Suitable for fine crushing of lump coal, shale, small-grained stone and construction waste, with flexible application scenarios.

Core parameters: rotor size φ1200*1400mm, rotor speed 1000r/min, motor power 200KW, feeding size ≤100mm, discharge size 3-6mm, capacity 32-64t/h, equipment weight 12.6t, overall dimension 4276*3021*2050mm, small energy-saving customized model.

Widely used in small coal mines, small coal preparation plants, village aggregate processing yards, small construction waste recycling stations and other small-scale fine crushing projects.

Q1: Is PCK1214 suitable for small production lines?

A1: Absolutely yes. It features compact structure, low energy consumption and moderate output, which is the best choice for small-scale fine crushing projects.

Q2: What is the energy consumption advantage of reversible type?

A2: Bidirectional rotation reduces hammer wear, avoids frequent shutdown and replacement, and the optimized parameter matching reduces invalid energy loss, saving 20%-30% operating cost.

Q3: What is the finished particle size of PCK1214?

A3: Stably controlled at 3-6mm, uniform fine particles, meeting various small-scale aggregate and coal processing standards.
