YH-PE500x750 Primary Jaw Crusher with 500x750 mm Feed Opening 30-80 t/h Capacity and High Manganese Steel Jaw Plates
YH-PE500x750 Primary Jaw Crusher with 500x750 mm Feed Opening 30-80 t/h Capacity and High Manganese Steel Jaw Plates
YH-PE500x750 Primary Jaw Crusher with 500x750 mm Feed Opening 30-80 t/h Capacity and High Manganese Steel Jaw Plates
YH-PE500x750 Primary Jaw Crusher with 500x750 mm Feed Opening 30-80 t/h Capacity and High Manganese Steel Jaw Plates
Specifications
Place of Origin :
china
Overall Dimension :
2035x1921x2000 mm
Processing Capacity :
30-80 t/h
Supply Ability :
30 to 50 units per month
Motor Power :
45 kW
Packaging Details :
Main machine firmly fixed with steel brackets inside 20GP/40GP container to avoid collision during sea transportation, export seaworthy packing.
Price :
USD 13000-26000 / Set
MOQ :
1 Set
Payment Terms :
T/T
Delivery Time :
15-30 days after down payment
Feed Opening Size :
500x750 mm
Brand Name :
peilan
Model Number :
500*750
Certification :
CE
Jaw Plate Material :
High manganese steel (Mn13/Mn18)
Max Feed Size :
450 mm
Description
Parameter ItemTechnical Data
ModelYH-PE500*750
Feed Opening Size (mm)500x750
Max Feed Size (mm)450
Discharge Opening Adjustment Range (mm)50-120
Motor Power (kw)30-80
Processing Capacity (t/h)45
Overall Dimension (LxWxH) (mm)2035x1921x2000
Product Introduction

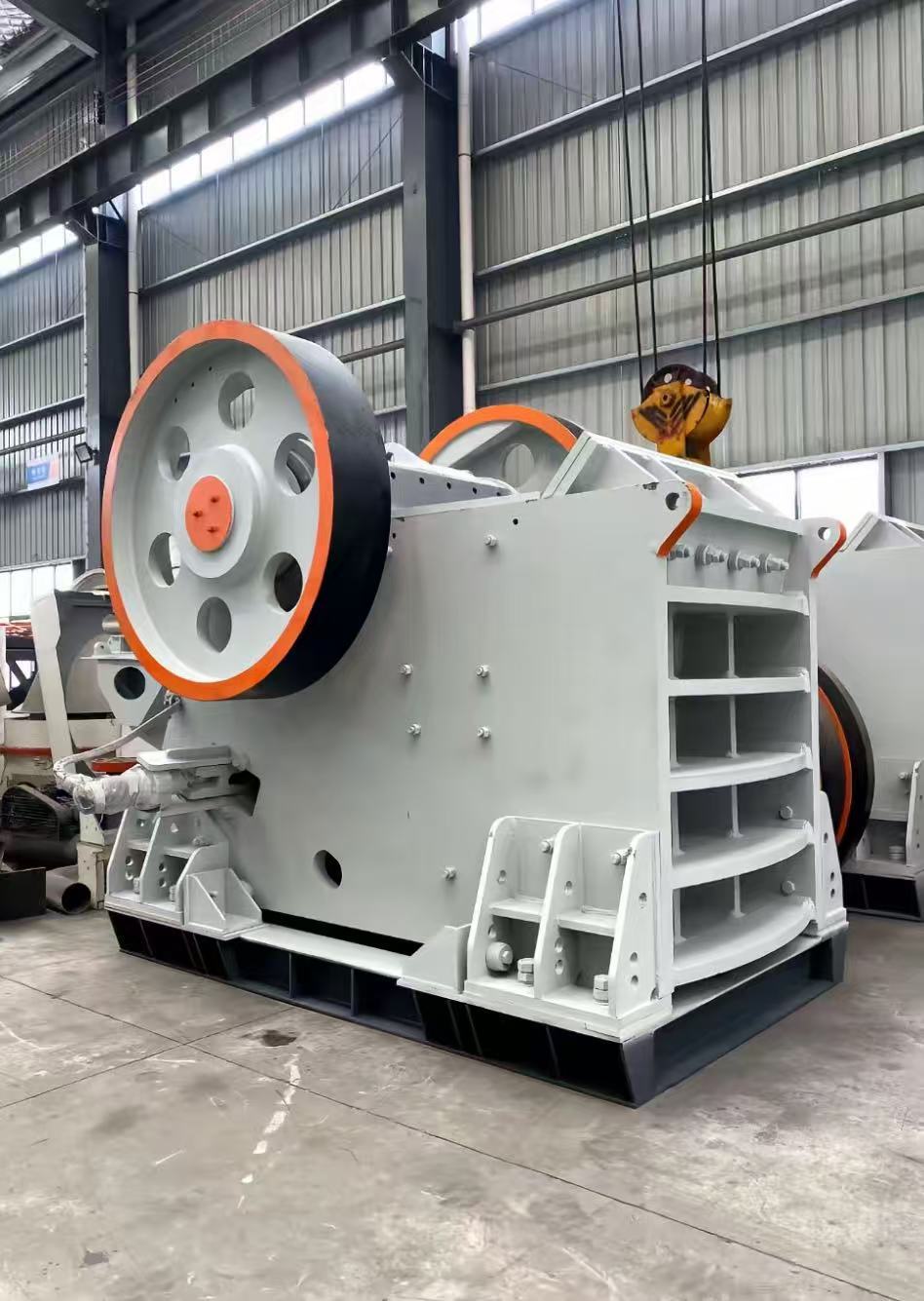

YH-PE500x750 is a single-toggle primary jaw crusher widely applied in quarry and mining crushing lines. With a 500x750 mm feed opening and 450 mm maximum feed size, it accepts medium-hard and hard rocks such as granite, limestone and basalt, delivering stable 30-80 t/h output for small and medium crushing projects.

Wedge Discharge Opening Adjustment

The discharge opening is adjusted by a quick wedge mechanism without disassembling the machine. Operators can change the finished aggregate size from 50 mm to 120 mm within minutes, which greatly shortens downtime and improves production flexibility.

Reversible High Manganese Jaw Plates

Fixed and movable jaw plates are made of high manganese steel and designed to be reversible. Each plate can be turned and reused, extending service life by up to four times and effectively reducing wear part cost per ton of finished stone.

Reliable Welded Steel Frame

The heavy-duty frame is fabricated from welded steel plates and annealed to release internal stress, ensuring stable running under continuous impact load. The centralized grease lubrication system simplifies daily maintenance and lowers the operator's workload.
