Advanced Ultrafine Grinder for Precision Micro Powder Production
Advanced Ultrafine Grinder for Precision Micro Powder Production
Specifications
Brand Name :
GNEZSCH
Certification :
CE ISO
Place of Origin :
China
MOQ :
One Set
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
50 sets per month
Delivery Time :
30-45 Workdays
Packaging Details :
Wooden case or container
Power Source :
Electric
Frequency :
50/60Hz
Power :
60KW
Material :
Stainless Steel
Grinding Fineness :
300-600 mesh
Application :
Grinding various materials into ultrafine powder
Features :
High efficiency, low noise, easy to operate and clean
Voltage :
380/400V
Description

Advanced Ultrafine Grinder for Precision Micro Powder Production

Product Overview

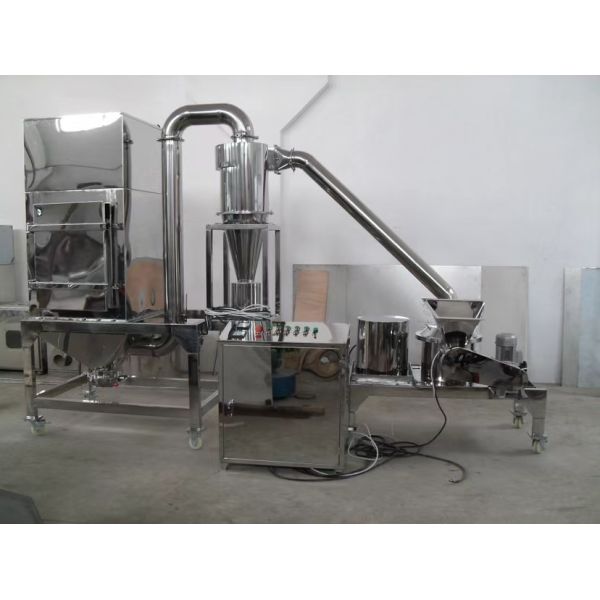

The Advanced Ultrafine Grinder offers superior performance for industries demanding consistent ultra-fine powders with high purity and minimal contamination. Equipped with cutting-edge high-speed impact technology and an optimized airflow system, it ensures precise particle size control and low-temperature operation—ideal for heat-sensitive materials in pharmaceuticals, food, chemicals, and cosmetics.

Product Specifications

Attribute Value
Material SUS304 / SUS316L Stainless Steel
Grinding Technology High-Speed Impact Mill with Airflow Cooling
Powder Fineness 80–7000 mesh
Capacity 15–900 kg/h
Max Feeding Size ≤ 6 mm
Motor Power 4–45 kW
Temperature Control Air Cooling / Optional Cryogenic System
Dust Collection Cyclone Separator + Pulse Jet Filter
Operation Mode Continuous / Automated
Voltage 220V / 380V / 415V Custom
Certification CE / ISO / GMP Compatible

Key Features

  • Delivers ultra-fine powders with narrow particle size distribution

  • Low-temperature grinding preserves aroma, color, and active compounds

  • Fully enclosed design prevents dust escape and contamination

  • Food-grade and pharma-grade models available

  • Efficient powder recovery through advanced cyclone filtration

  • Modular design for easy cleaning and maintenance

Applications

  • Herbal extracts and botanical powders

  • Pharmaceutical ingredients and nutraceuticals

  • Fine spices, flavor powders, and food additives

  • Chemical micro-powders and specialty materials

  • Cosmetics, pigments, and skincare raw materials

Customer Benefits

  • Ensures uniform, high-purity ultra-fine powders

  • Protects sensitive ingredients from heat damage

  • Reduces operational downtime with user-friendly design

  • Suitable for lab-scale to large industrial production

  • Customizable options tailored to specific industry needs

FAQ:

If you want to send inquriy to me about Stainless steel commercial Spice pulverizer machine,grinding pulverizer machine from China, could you please tell me?

  1. What material you want to grind, is it dry? what is the size of feed material ?
  2. What capacity you expect by spice grinding machine? (kg/h)
  3. What mesh or mm or micron(size) of the powder you want?
  4. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

    (We only provide 3P, because our machines are all for industrial use,not for family.)
  5. Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.

Then our communication will be more efficient.
