Industrial Ultrafine Grinder for Micron-Level Powder Processing
Industrial Ultrafine Grinder for Micron-Level Powder Processing
Specifications
Brand Name :
GNEZSCH
Certification :
CE ISO
Place of Origin :
China
MOQ :
One Set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
30-45 Workdays
Packaging Details :
Wooden case or container
Power Source :
Electric
Grinding Fineness :
0.01mm
Application :
Grinding and Pulverizing
Material :
Stainless Steel
Frequency :
50Hz
Voltage :
380/400V
Features :
High Efficiency, Low Noise, Easy to Clean
Description

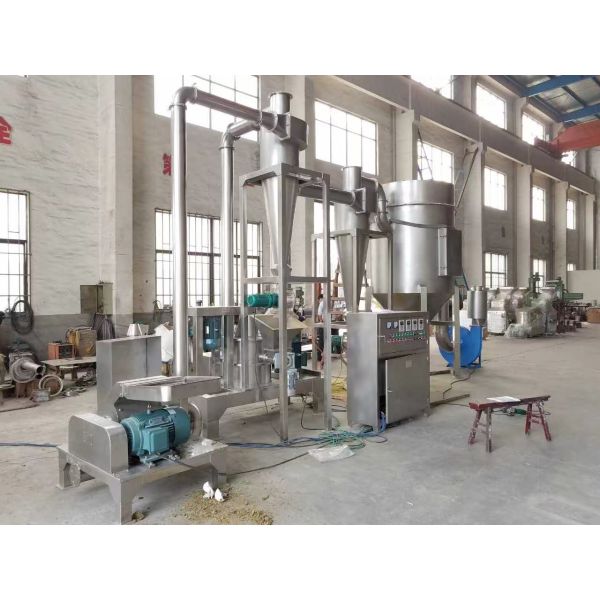

Industrial Ultrafine Grinder for Micron-Level Powder Processing

Product Overview
The Industrial Ultrafine Grinder is engineered for high-precision micron powder production in pharmaceuticals, food processing, chemicals, and herbal industries. With high-speed impact grinding and optimized airflow cooling, it delivers stable and ultra-fine output while preventing heat damage—ideal for sensitive materials that require controlled particle size.

Product Specifications

Attribute Value
Material SUS304 / SUS316L Stainless Steel
Grinding Method High-Speed Impact / Airflow Shear
Final Fineness 80–5000 mesh
Capacity 10–600 kg/h
Feeding Size ≤ 6 mm
Motor Power 3–45 kW
Temperature Rise ≤ 10°C (Low-Temp Grinding)
Dust Collection Cyclone Separator + Bag Filter
Noise Level ≤ 72 dB
Voltage 220V / 380V / 415V / Custom
Certification CE / ISO 9001 / GMP-Ready

Key Features

  • Achieves ultra-fine powder with highly uniform particle size

  • Low-temperature grinding protects nutrients and active ingredients

  • Food-grade or pharma-grade stainless steel construction

  • High-efficiency cyclone system for improved powder collection

  • Stable, low-noise operation suitable for long production cycles

  • Quick-disassembly chamber for easy cleaning and maintenance

Applications

  • Herbal medicine and botanical powder

  • Pharmaceuticals and nutraceuticals

  • Fine food powders and spice micronization

  • Chemical and pigment materials

  • Research laboratories and pilot production lines

Customer Benefits

  • High purity and consistency for premium product output

  • Reduced aroma loss and nutrient degradation

  • Increased production efficiency with minimal downtime

  • Long service life with industrial-grade components

  • Fully customizable fineness, capacity, and system configuration

FAQ:

If you want to send inquriy to me about Stainless steel commercial Spice pulverizer machine,grinding pulverizer machine from China, could you please tell me?

  1. What material you want to grind, is it dry? what is the size of feed material ?
  2. What capacity you expect by spice grinding machine? (kg/h)
  3. What mesh or mm or micron(size) of the powder you want?
  4. What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...

    (We only provide 3P, because our machines are all for industrial use,not for family.)
  5. Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.

Then our communication will be more efficient.
