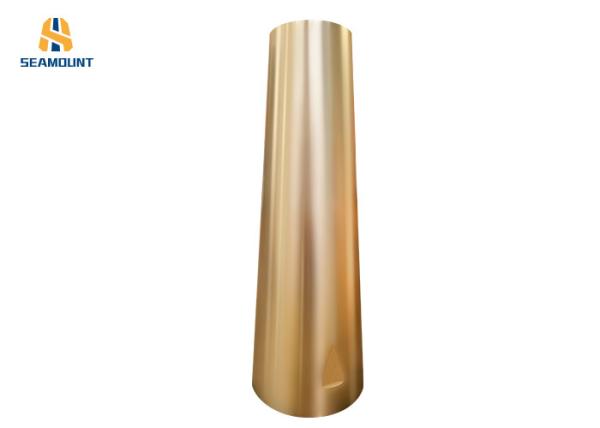

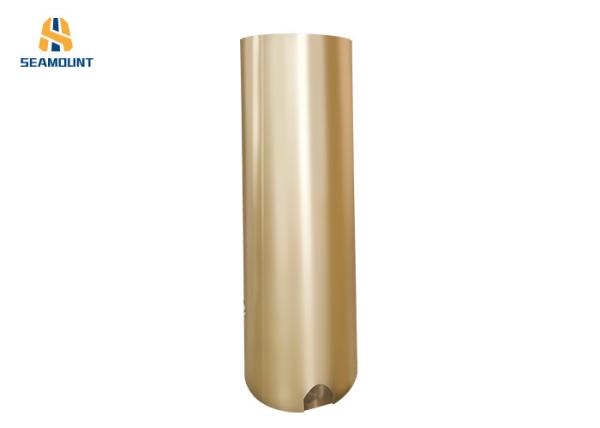

High Lead Bronze C94500 Cone Crusher Parts Mainshaft Bushing
High Lead Bronze C94500 Cone Crusher Parts Mainshaft Bushing
High Lead Bronze C94500 Cone Crusher Parts Mainshaft Bushing
High Lead Bronze C94500 Cone Crusher Parts Mainshaft Bushing
Specifications
Brand Name :
SEAMOUNT
Model Number :
OEM
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 piece
Price :
USD 10-15/kg
Payment Terms :
T/T, Western Union
Supply Ability :
50000KG per month
Delivery Time :
5-30 work days
Packaging Details :
Standard export wooden case
Application :
cone crusher
Material :
C94500
Type :
bearing
Certificate :
ISO9001:2008
Feature :
Long Operating Life
Process :
Centrifugal casting
lead tine :
7-30days
Packaging :
Standard export wooden case
Description

Customized High Lead Bronze C94500 Cone Crusher Parts Mainshaft Bushing

part name material grade weight
(kg)		 Net size metric system
D2 d2 D1 d2 H
1 2 3 4 5
PYB600 bronze 17.5 125.5 105.5 167 147 445
PYB900 bronze 41 150 125 234 209.6 672
PYB1200 bronze 90 227.1 197.1 300 270.6 875
PYB1300 High lead 100 260.5 229.44 330.2 300.41 863.6
PYB1600 bronze 195 292.8 256 399.6 350.6 1145
PYB1750 bronze 220 324.83 283.83 420 380 1142
PYB2200 bronze 410 376 333 495 452 1428

High Lead Bronze C94500 Cone Crusher Parts Mainshaft Bushing

Copper sleeve, Simmons copper sleeve, the specific product name is spindle bushing, suitable for s155 Simmons cone crusher, material pb15sn8, American Standard c93800, single weight 103 kg, cast by sand casting process, and its matching copper parts include bowl type tile, frame bushing, thrust plate, transmission shaft sleeve.

The specific size is 330.2mm for the big end, 260.5mm for the small head, and 863.6mm for the total height. As the drawings of different manufacturers are different, the processing drawings shall prevail.

It is a professional manufacturer of eccentric copper sleeve, which can produce various brands of GP series and HP series eccentric copper sleeve. The material is lead bronze pb20sn5 which is wear-resistant and easy to cut. It can customize copper accessories of second-hand crusher according to the drawing,

Related products

High Lead Bronze C94500 Cone Crusher Parts Mainshaft Bushing

Material Brass,Tin bronze,Lead bronze,Aluminum bronze, etc
Feature 1.High load capacity Good anti-wearing
2.Low coefficients of friction
3.Good heat conductivity
4.High corrosion resistence
5.Long life and maintenance-free
6.No contaminant by oil or grease
advantage 1.ISO SGS certified
2.Owned casting and cnc machining workshops
3.advanced equipment and excellent R&D team
4.High skilled manufacturing process
5.A broad varirty of ODM&OEM product range
6.strict quality control system
Technology Centrifugal casting,Sand casting,Machining,Injection,Heat Treatment etc
OEM Service Yes
Payment L/c ,T/T,Paypal,Western Union,Ali Credit insurance
Port QINGDAO ,TIANJIN ,SHANGHAI ,NINGPO PORT
size As your drawing
Drawing Yes
Sample Available
MOQ 50kg
Lead time According to required time
