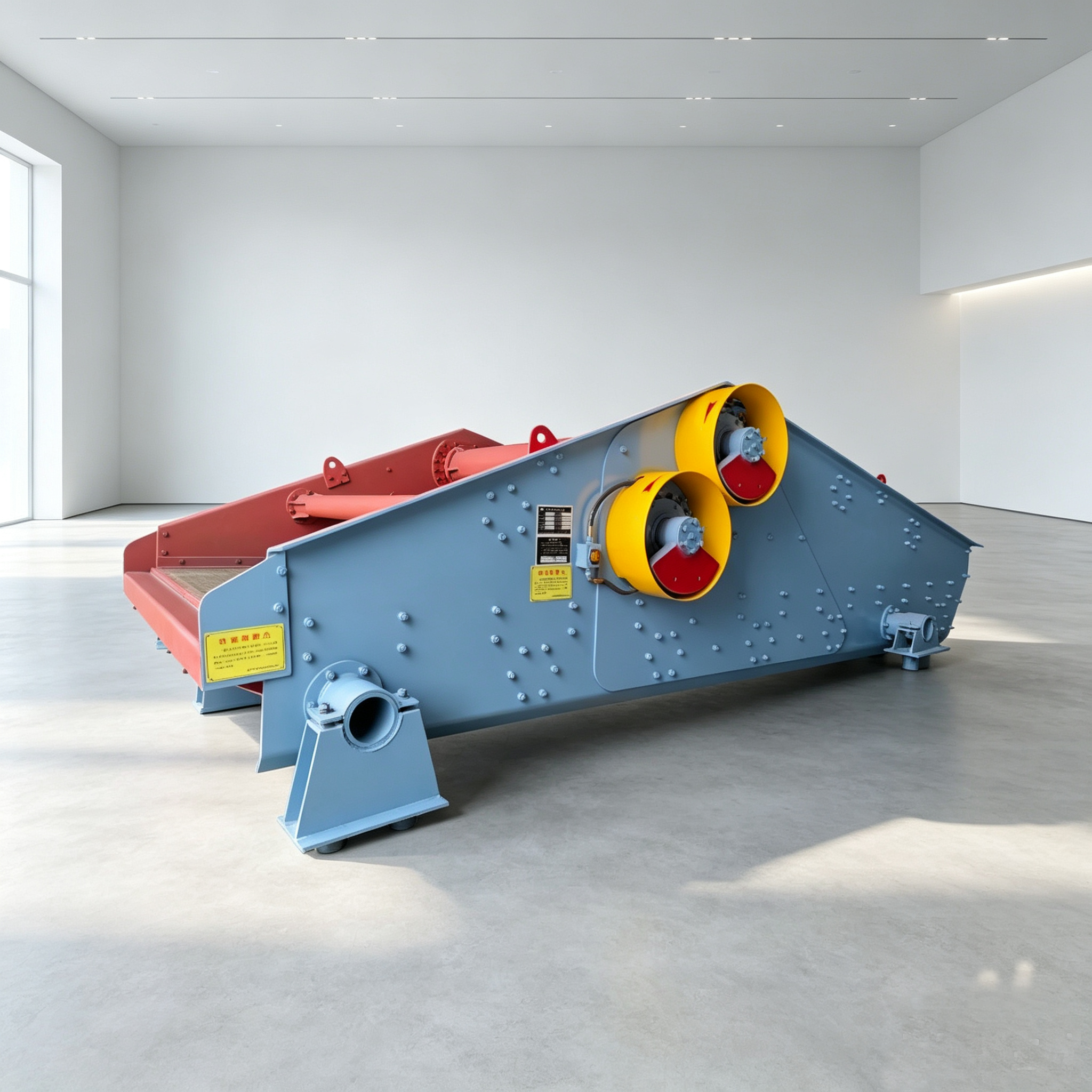

XY Dewatering Vibrating Screen – Product Overview

The XY Dewatering Vibrating Screen, developed by Sichuan Xinyida Machinery, is a linear vibrating screening unit specifically engineered for dewatering, media removal, and desliming of slurry materials. With its robust construction, high-frequency operation, and large processing capacity, this equipment delivers exceptional performance in reducing moisture content of fine sand and classifying various materials across multiple industries.

Advanced Linear Motion Design

Based on the self-synchronization principle, the screen is designed so that the excitation force directions from the dual vibrators form a fixed angle. Two sets of eccentric blocks with equal mass are mounted on dual shafts and rotate synchronously in opposite directions. The centrifugal force components along the vibration direction are always superimposed, while the perpendicular components cancel each other out. This generates a single, powerful excitation force that drives the screen in a reciprocating linear motion, ensuring efficient material conveying and separation.

Superior Dewatering and Classifying Performance

The XY Dewatering Vibrating Screen effectively reduces the moisture content of fine sand, making it an ideal solution for dry and wet classifying, dewatering, medium removal, and desliming of various materials. Its high frequency and large output, combined with a compact footprint and high rigidity, allow for convenient system layout and maximize processing capacity per unit area. The unit is widely used in sand and gravel aggregate, coal, metallurgy, mining, hydropower, building materials, light industry, transportation, and other sectors.

Built for Reliability and Long Service Life

The excitation force is generated jointly by shaft eccentricity and rotating eccentric blocks, delivering dual excitation for stronger vibration and smoother operation. Manufactured with precision on gantry boring and milling machines, the screen body ensures perfect horizontal alignment and concentricity for vibrator assembly. Bearing housings are cast from special alloy steel, offering excellent wear resistance and deformation resistance while eliminating the frequent replacements caused by outer race rotation in conventional designs.

Durable, Weld-Free Construction

Side plates are fabricated from high-yield strength steel with reinforced vibrator areas, and the screen body utilizes a hemming process that eliminates weld-induced stress concentration. This design prevents frame loosening and deformation under long-term operation, providing higher fatigue strength and outstanding durability.

With its simple structure, reliable operation, and easy maintenance, the XY Dewatering Vibrating Screen is a trusted solution for efficient material processing.
