Specifications
Knitting Style :
Warp
Model Number :
HF-CT609/B16
Operation Mode :
Automatic
MOQ :
1
Delivery Time :
15 work days
Application :
Lace trims, medical tapes, garment straps, zipper belts, decorative narrow textiles
Payment Terms :
T/T,L/C
Machine Type :
Jacquard Crochet Machine
Price :
Negotiation
Computerized :
Yes
Certification :
CE/IOS9001/UDEM
Knitting Width :
600mm
Place of Origin :
Dongguan ,China
Highlight :
Left negative‑pressure selvedge trimming, three‑color marker unit, three‑layer conveying assembly
Supply Ability :
300 sets/month
Voltage :
380V/220V
Brand Name :
HUAFANG
Packaging Details :
Negotiation
Description

Production Overview

HF‑CT609/B16 computer jacquard crochet machine is advanced narrow textile manufacturing equipment. It adopts latest integrated signal controller, stable operation and easy parameter adjustment. Pattern editing can be finished directly on machine screen, supports fast pattern modification and repeat production. The machine can produce various kinds of narrow textile straps, widely adapted for multiple textile product processing demands.

Main Features

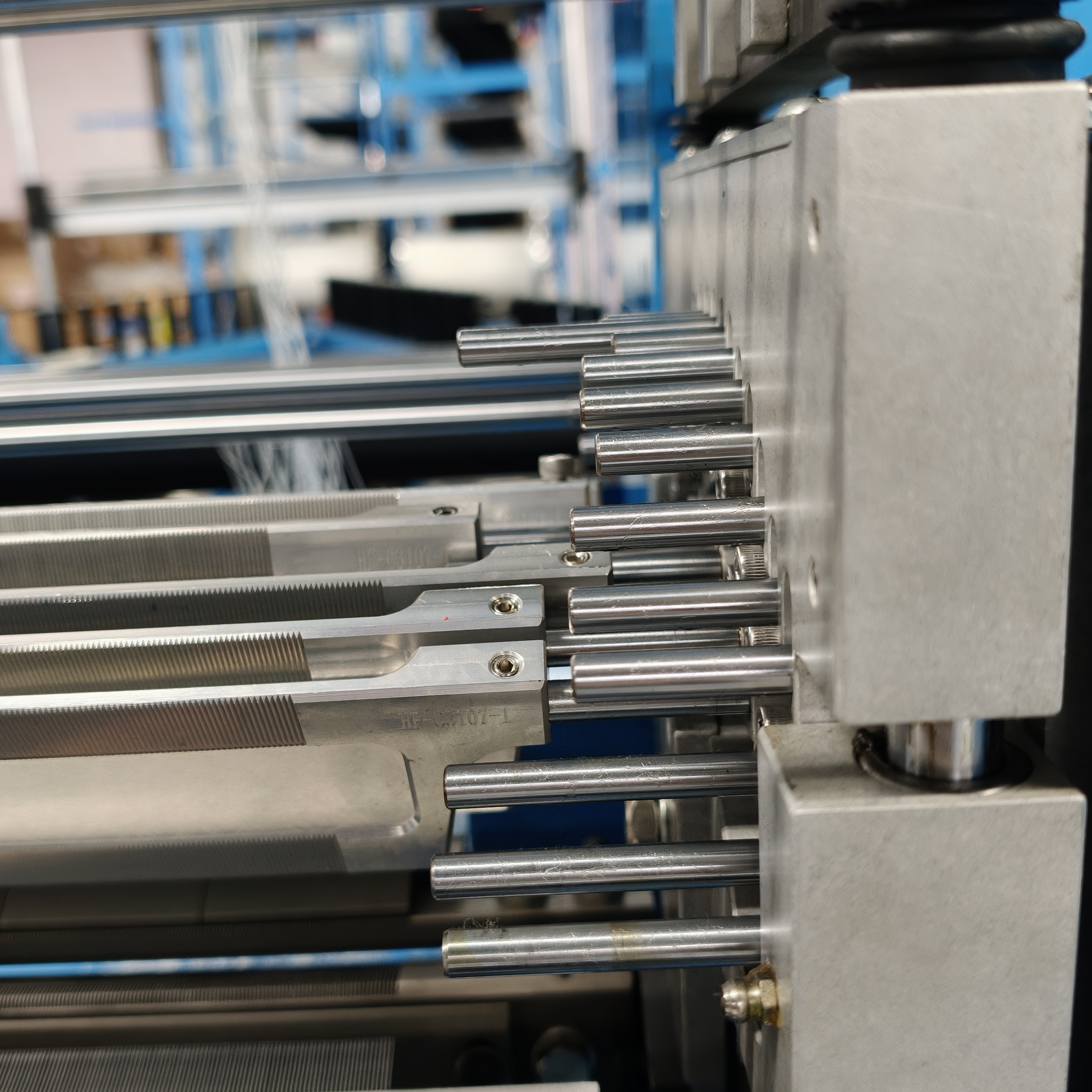

Equipped with electronic jacquard yarn bar control system, it realizes precise pattern shaping. 16 working bars deliver rich pattern diversity. The whole mechanical structure is stable, low‑failure and convenient for daily maintenance. Pattern data can be imported and exported via USB device, greatly improving production conversion efficiency. It effectively avoids edge curling and uneven selvedge for finished textile strips.

Applications

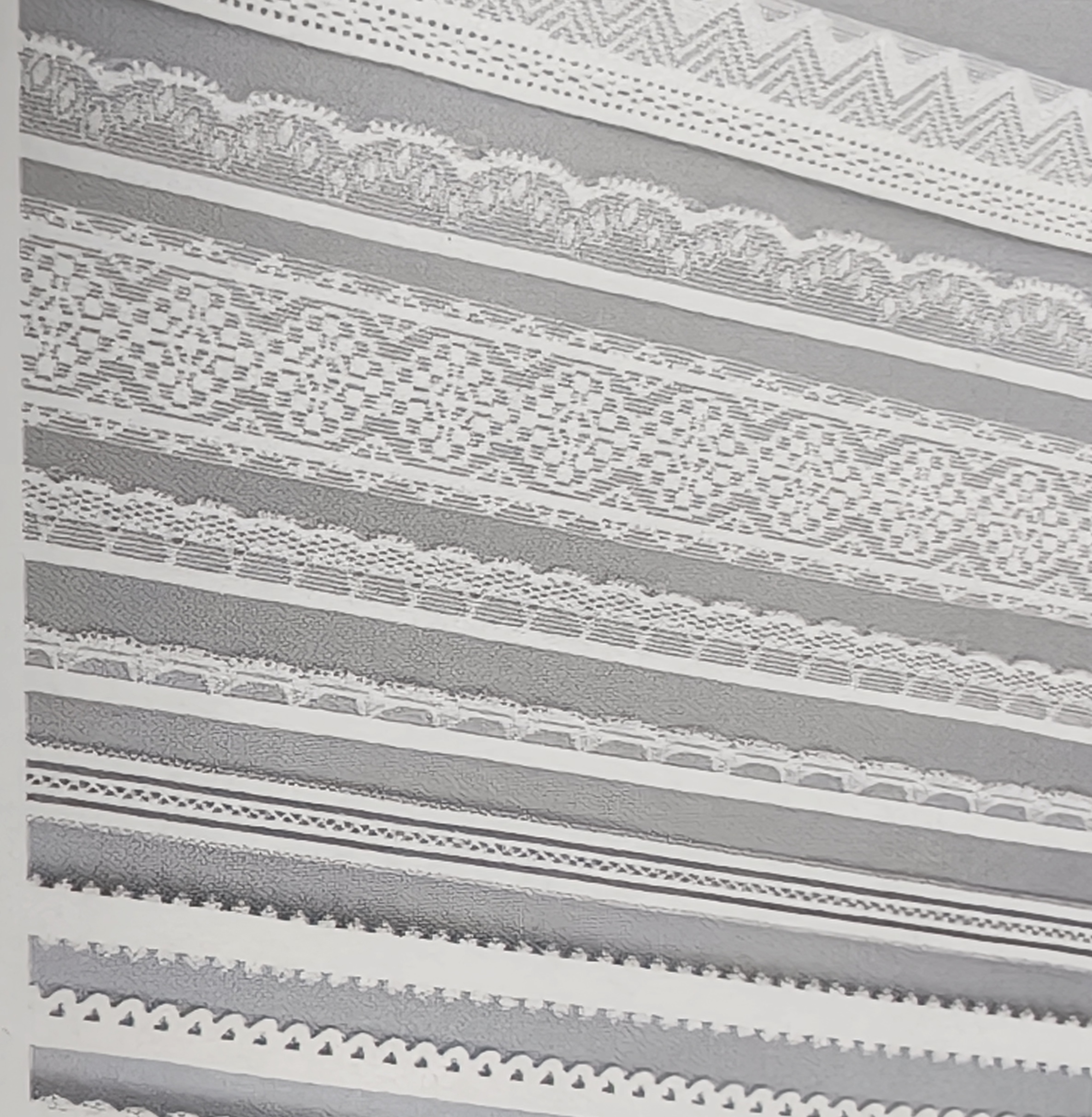

Lace trims Medical bandage tapes Garment straps Zipper belts Sport belt buckles Various decorative narrow textile strips

Technical Parameters

Item Specification
Model HF‑CT609/B16
Working Width 600mm
Needle Count 15needles/20needles/24needles per inch
Electronic Jacquard Yarn Bar 16 bars
Power Supply 3‑phase 380V, 5.5KW
Standard Outfit Front beam holder, three‑layer transport unit, drop‑off device, three‑color marker unit, broken‑yarn self‑stop device

Packing

Packed in standard export wooden case, customized packing solution is negotiable.

Company Profile

Huafang Machinery is a professional manufacturer specialized in narrow‑webbing textile machinery. We focus on R&D and production of webbing setting equipment and related spare parts. With rich practical experience in textile industry, we provide reliable machines and effective solutions for global webbing manufacturers.
