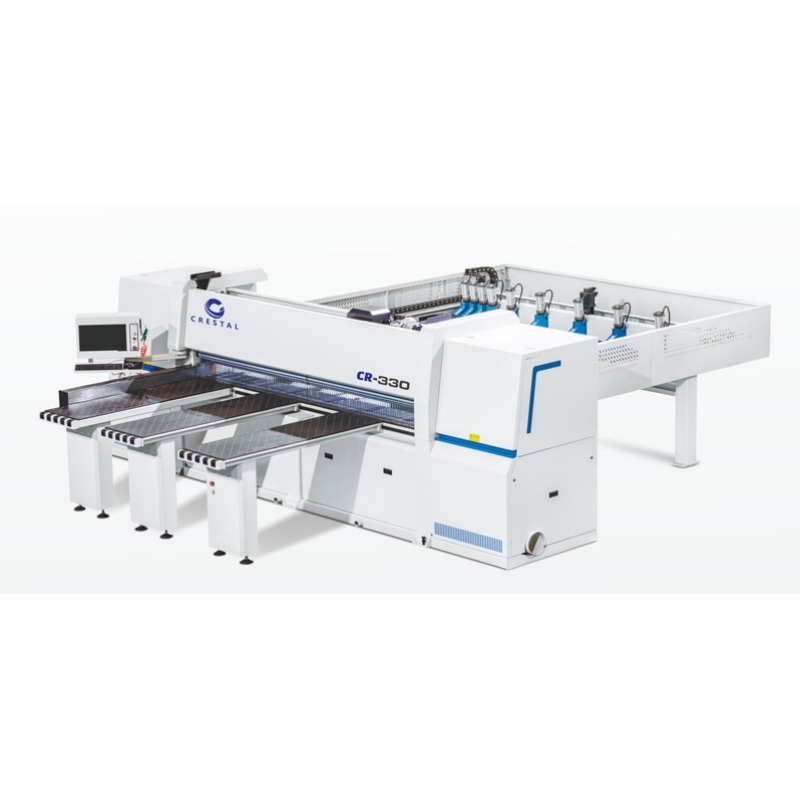

Heavy Duty Beam Saw
Product Overview
This heavy-duty beam saw is designed for precision cutting of various materials including particle board, multi-layer board, medium fiber board, chip board, PVC board, solid wood board, and organic glass. Drawing on high-end CNC panel saw technology with 11 years of practical experience, this machine delivers exceptional performance for panel furniture production enterprises worldwide.
Key Features
  • Material inlet area setting for precise feeding grippers board positioning
  • Adjustable sawing carriage with configurable cutting speed
  • Programmable grippers position settings
  • Simulated cutting function for process verification
  • Selectable cutting sequence with work item switching capability
  • Premium electrical components including Taiwan Delta Control System, Delta Servo and Frequency Converter, French Schneider Electric, and AirTac Pneumatic Components
  • Precision frame construction eliminating need for electronic ruler installation
  • High-quality cables for extended lifespan
  • Reinforced steel frame with high-density welding
  • Crawler-type vacuum system with near 100% sawing dust collection
  • Minimum clamp size of 34 * 45mm
  • Dual servo CNC cutting with servo motor speed control
  • Fault online detection with automatic shutdown and side detection
  • Visual sawing monitoring with intelligent cutting optimization software
Technical Specifications
Main Saw Speed 4800 m/min Groove Saw Diameter 200 mm
Groove Saw Speed 7000 r/min Groove Saw Spindle Diameter 50 mm
Cutting Speed 0-120 m/min Max Working Thickness 120 mm
Saw Power 15 kw + 2.2 kw Max Working Width 3200 mm
Feeding Motor Power 2 kw Feeding Guide Rail 40 mm
Main Saw Spindle Diameter 75 mm Main Electrical Appliances Schneider, Omron
Main Saw Diameter 400-450 mm Saw Carriage Delta: 2 kw
Blow Power 2.2 kw * 2 Auxiliary Table Length 2000 * 550 mm * 3
CNC Feeding Table Specifications
Guide Rails Oil Injection Method Automatic oil supply for cutting
Driving Method Gear rack and worm gear reducer
Control Method Delta: EH3-PLC
Guide Method Circular guide rail (Taiwan)
Driving Method Servo motor: 2 kw
HMI 19 inch industrial computer
Positioning Accuracy ±0.1 mm
Max Working Thickness 120 mm
Working Speed 0-120 m/min
Max Working Width 0-3200 mm
Workpiece Clamp Method Cylinder double grippers
Working Length 0-3200 mm
