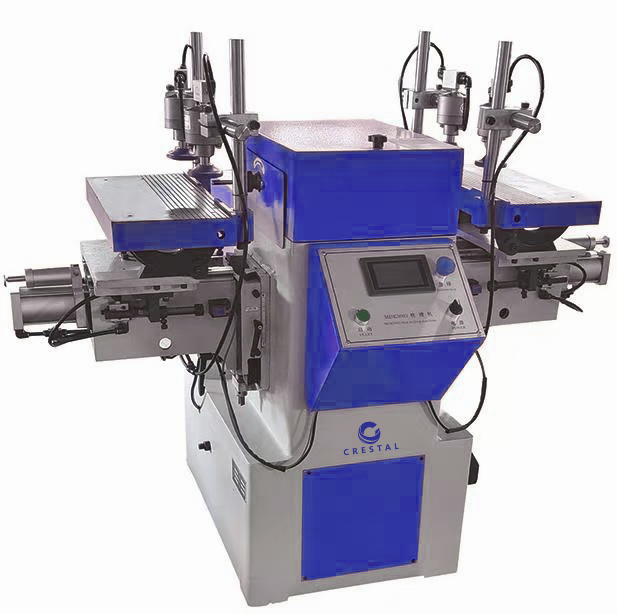

Double End Mortiser Machine with 30 Degree Tiltable Worktable and Dual Worktable Processing for Digital Display Adjustment
Double End Mortiser Machine with 30 Degree Tiltable Worktable and Dual Worktable Processing for Digital Display Adjustment
Specifications
Max Mortising Depth :
60mm
Air Pressure :
0.6mpa
Overall Size :
1500*1060*1150mm
Spindle Speed :
9500r/min
Max Mortising Width :
120+2Rmm
Total Power :
3kw
Description
Key Features
  • Versatile Mortising Applications: Designed for mortising doors, tables, and chairs. The adjustable working width is controlled via digital display, and the 30° tiltable working table enables precise angle mortising. The spindle assembly slides along a precision guide rail, ensuring consistent processing quality and efficiency.
  • Dual Adjustable Worktables: Features two adjustable, tilting worktables that allow simultaneous processing on both tables, effectively doubling production efficiency.
  • High-Speed Precision Spindle: The main spindle assembly moves rapidly along a precision guide rail, delivering high accuracy and speed suitable for heavy-duty cutting operations.
  • Digital Mortising Width Adjustment: Mortising width is adjusted through a digital display, making the process direct, accurate, and easy to control.
  • Unique Spindle Adjustment Mechanism: Allows variable left and right moving speed of the main spindle to adapt to different processing requirements, ensuring consistent working quality and efficiency.
Technical Specifications
Model MS3112
Worktable Lifting Distance ±80 mm
Worktable Tilt Angle 20°
Max Mortising Width 120 + 2R mm
Max Mortising Depth 60 mm
Spindle Speed 9500 r/min
Total Power 3 kW
Air Pressure 0.6 MPa
Weight of Machine 480 kg
Overall Size (L × W × H) 1500 × 1060 × 1150 mm
