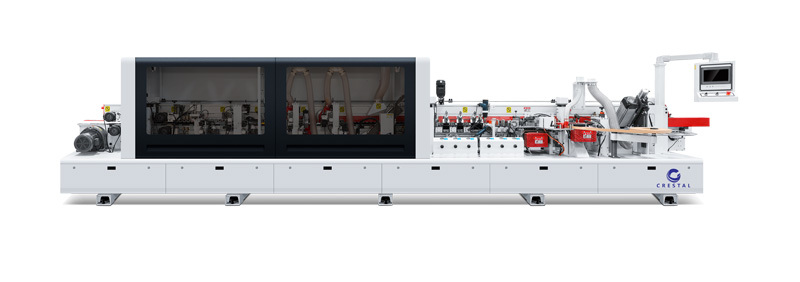

CR-450SKG Bevel Edge Bander with 45° Bevel Sawing and Milling, 27.5KW Total Power, and 13m/min Bevel Feed Speed
CR-450SKG Bevel Edge Bander with 45° Bevel Sawing and Milling, 27.5KW Total Power, and 13m/min Bevel Feed Speed
Specifications
Description
CR-450SKG
Machine Functions
Pre-milling
45° bevel sawing and milling
Hot lamp 1
Beveling Gluing
Hot lamp 2
Quick melting device (Upper gluing pot)
Straight Gluing
Straight pressure
Beveling pressure
End cutting
Beveling trim
Straight trim
Corner trim
Straight scraping
Beveling scraping
Polishing 1
Polishing 2
Spraying
Applications

This machine is suitable for panel furniture, door panel edge sealing, customized furniture, cabinet and wardrobe, office furniture, solid wood furniture, tables, chairs, doors and windows, wood products, and decoration industry applications.

Machinable Materials
  • Density board
  • Ecological board
  • Multi-layer board
  • Particleboard
  • Flat solid wood board
Technical Specifications
Model CR-450SKG
Total Power 27.5KW
Feed Speed Bevel: 13m/min, Straight: 15-23m/min
Panel Width ≥80mm
Sheet Length ≥120mm
Edge Thickness 0.4-1.5mm
Panel Thickness Bevel: 15-25mm, Straight: 10-60mm
Electric Lifting 0.37KW
Working Pressure 0.6Mpa
Overall Size (L x W x H) 10000 × 970 × 1800mm
