Six Sides Boring Machine with Intelligent Self-Check, Continuous Processing, and Remote Service for Efficient Wood Drilling
Six Sides Boring Machine with Intelligent Self-Check, Continuous Processing, and Remote Service for Efficient Wood Drilling
Six Sides Boring Machine with Intelligent Self-Check, Continuous Processing, and Remote Service for Efficient Wood Drilling
Six Sides Boring Machine with Intelligent Self-Check, Continuous Processing, and Remote Service for Efficient Wood Drilling
Specifications
Description

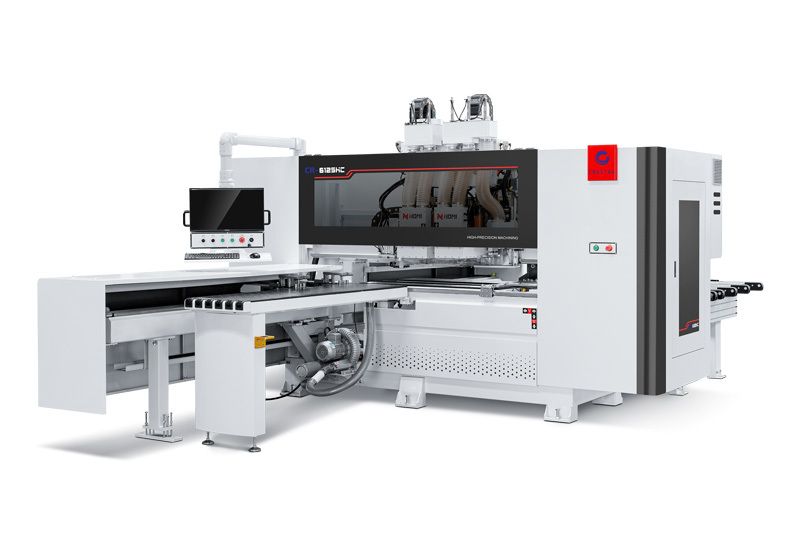

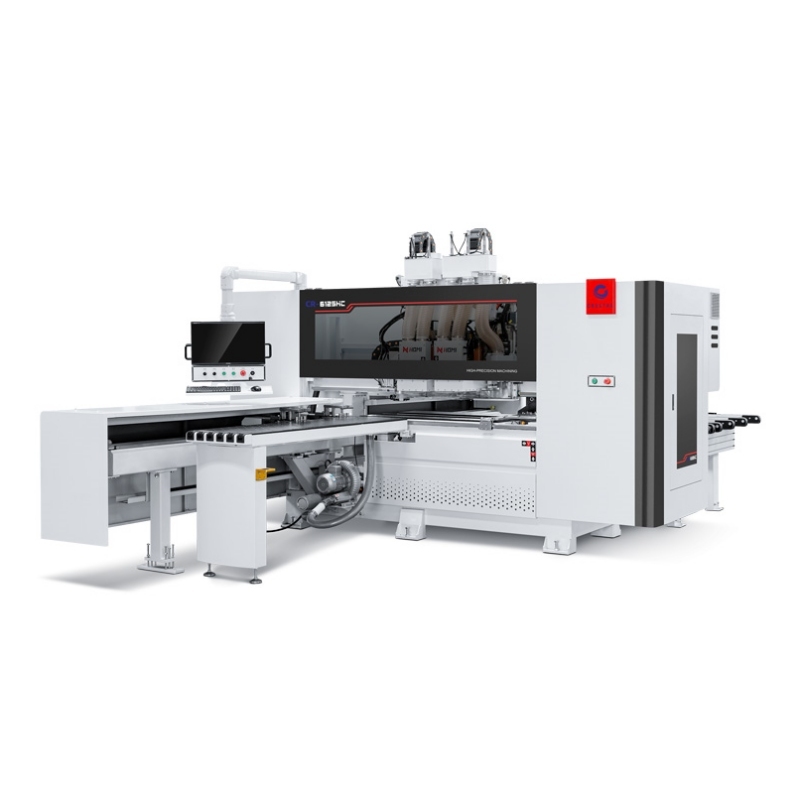

Six Sides Boring Machine
Key Advantages
  • Intelligent self-check: Automatic plate length and width verification prevents plate and processing unit misalignment, protecting equipment from damage
  • Continuous processing: Continuous scanning and processing without waiting periods for higher efficiency
  • Flexible discharging: Multiple discharge options (front or rear) to accommodate different production line requirements
  • High yield: Enhanced production efficiency, improved drilling quality, and optimized production processes
  • Remote service: High-speed, stable operating system enables remote database updates and backups
  • Online production: Compatible with production line integration for intelligent manufacturing and unmanned workshop operations
Technical Specifications
Parameter Specification
Processing wood length 150mm ~ 3050mm
Processing wood width 40mm ~ 1200mm
Processing wood thickness 10mm ~ 60mm
Max moving speed of X-axis 150m/min
Max moving speed of Y-axis 90m/min
Max moving speed of Z-axis 45m/min
Drill group vertical drilling 7 pieces * 2
Drill group horizontal drilling (2 * 2) pieces
Drill down vertically 6 pieces
Drill group power 2.2KW * 2
Lou milling spindle mode Er3
Lou milling speed 18000r/min
Lou milling spindle power 3.5kw * 2
Workbench height 900mm
Diameter of the suction pipe 150mm
Total power 19.8kw
Operating voltage 380V 50HZ
Working pressure 0.6-0.8Mpa
Weight 3500Kg
Dimensions 5500mm * 2750mm * 2300mm
