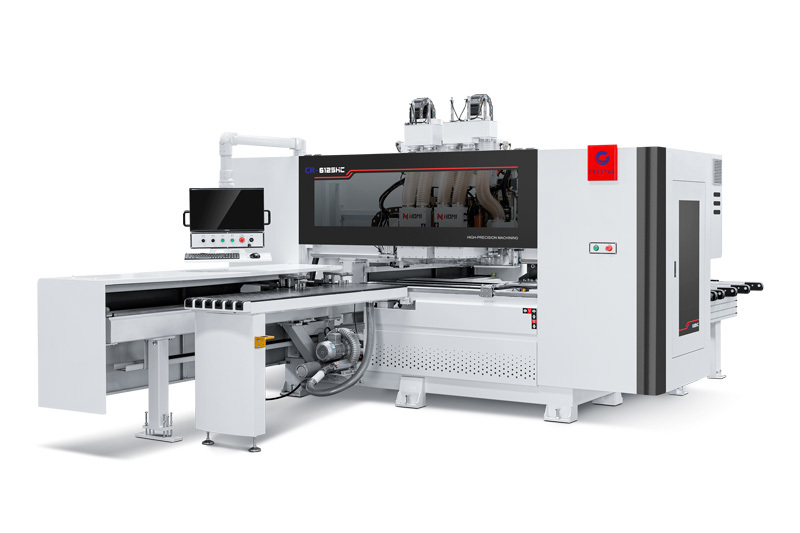

Intelligent Self-Check Six Sides Boring Machine with Continuous Processing and Remote Service Six-Sided Drilling Machine
Intelligent Self-Check Six Sides Boring Machine with Continuous Processing and Remote Service Six-Sided Drilling Machine
Intelligent Self-Check Six Sides Boring Machine with Continuous Processing and Remote Service Six-Sided Drilling Machine
Intelligent Self-Check Six Sides Boring Machine with Continuous Processing and Remote Service Six-Sided Drilling Machine
Specifications
Processing Wood Width :
40mm~1200mm
Max Y-Axis Speed :
90m/min
Max Z-Axis Speed :
45m/min
Processing Wood Thickness :
10mm~60mm
Processing Wood Length :
150mm~3050mm
Max X-Axis Speed :
150m/min
Description
Key Advantages
  1. Intelligent self-check: Automatically checks plate length and width to prevent plate and processing unit dislocation, avoiding equipment damage.
  2. Continuous processing: Continuous scanning and processing without waiting, resulting in higher efficiency.
  3. Flexible discharging: Choose different discharging methods (front or rear) according to line demand.
  4. High yield: Improves production efficiency and drilling quality while optimizing the production process.
  5. Remote service: High-speed, stable operating system enables remote database updates and backups.
  6. Online production: Collocation enables intelligent production and unmanned workshop operation.
Technical Parameters
Processing wood length 150mm ~ 3050mm
Processing wood width 40mm ~ 1200mm
Processing wood thickness 10mm ~ 60mm
Max moving speed of X-axis 150m/min
Max moving speed of Y-axis 90m/min
Max moving speed of Z-axis 45m/min
Drill group vertical drilling 7 pieces × 2
Drill group horizontal drilling (2 × 2) pieces
Drill down vertically 6 pieces
Drill group power 2.2KW × 2
Lou milling spindle mode Er3
Lou milling speed 18000r/min
Lou milling spindle power 3.5kw × 2
Workbench height 900mm
Diameter of the suction pipe 150mm
Total power 19.8kw
Operating voltage 380V 50HZ
Working pressure 0.6–0.8Mpa
Weight 3500Kg
Dimensions 5500mm × 2750mm × 2300mm
