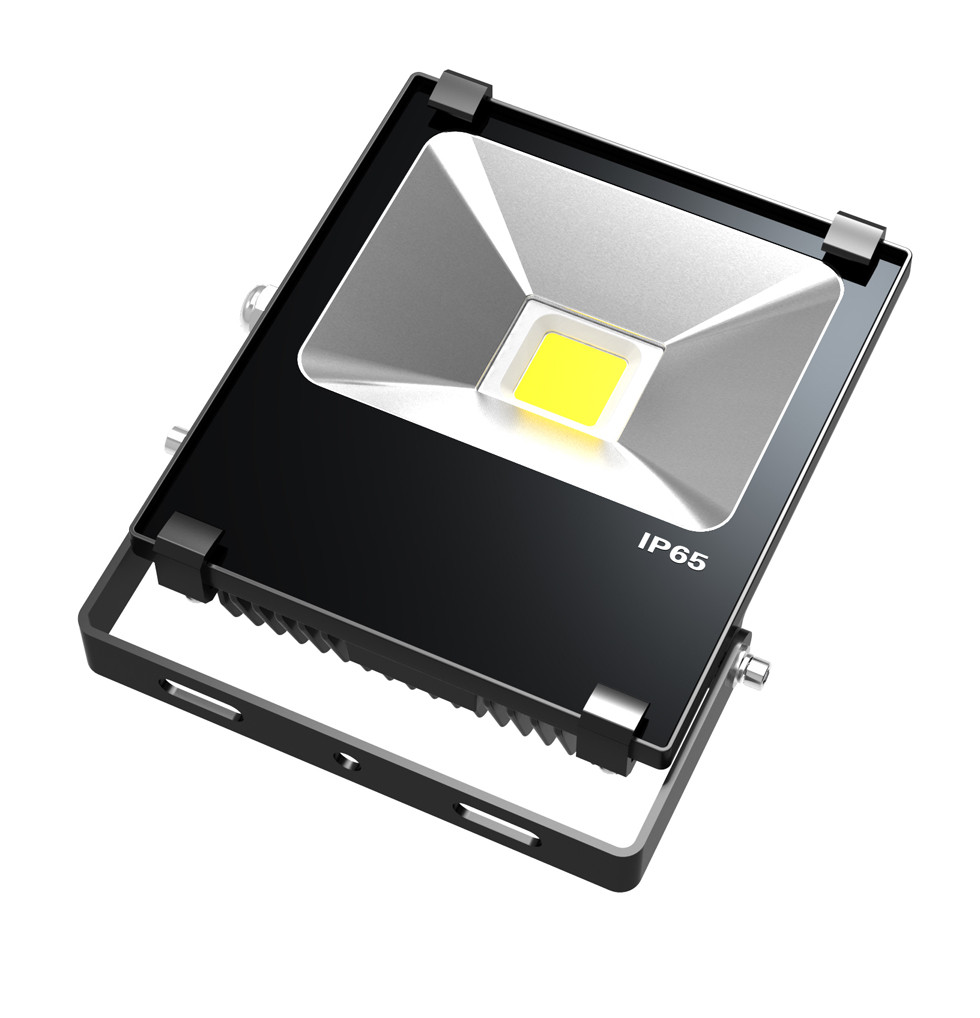

Cool white Outside Commercial 20 w LED Flood Light CE RoHS TUV UL Ra90

CE & RoHs approval IP65 / 20W bridgeLux 45 mils,1PCS COB LED, Outdoor LED floodlighting

IP65 Waterproof Flood Lighting, 20W Outdoor LED Flood Light For Squares, Stadiums

Description:

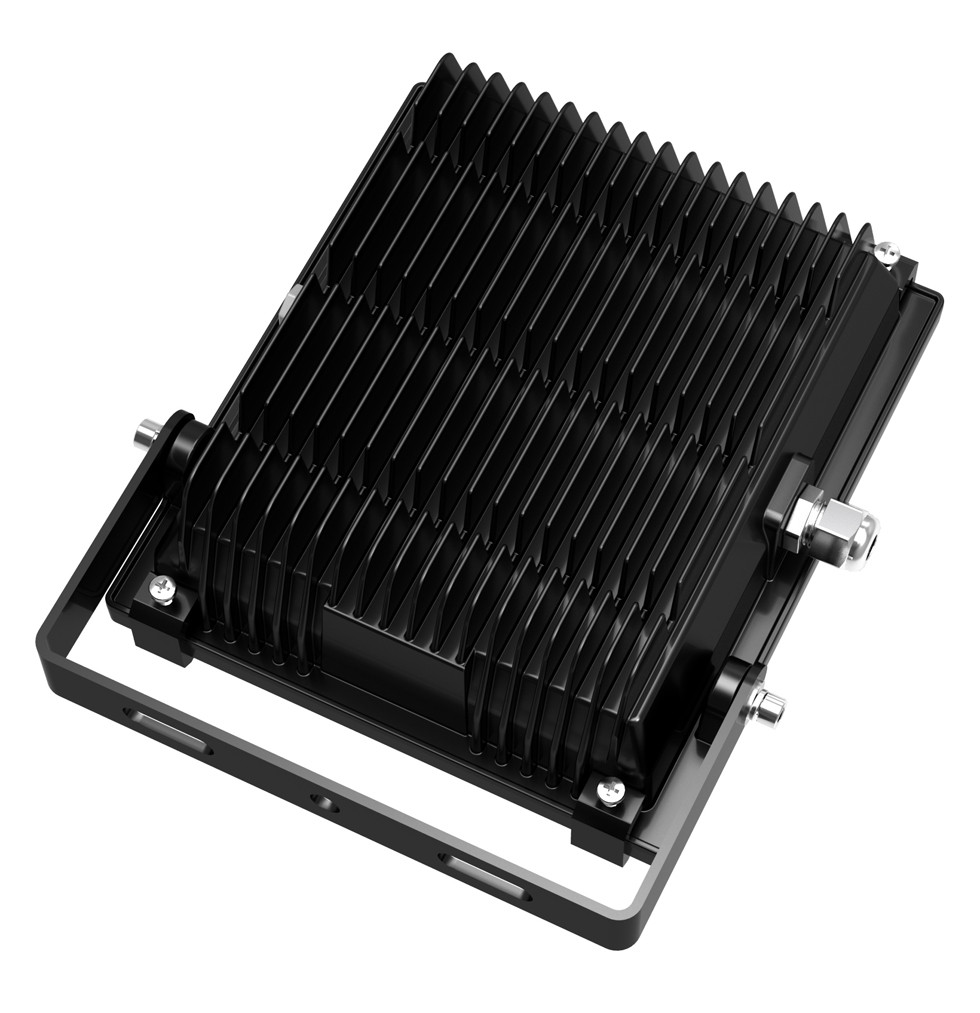

• Die-casting aluminum housing
• AC85~265V input options
• Optical grade diffused lens
• Graduated angle scale
• Bridgelux LED
• Low emitted heat
• 120º beam projection
• Up to 70% energy savings
• 20w power consumption
• IP65 Ingress protection
• CE, RoHS, TUV, UL compliant
• 3 Year Warranty

Specifications:

Electrical / Optical Characteristics (Ta=25℃±3℃)

Lux distance Curve(Ta=25℃±3℃)

Curve of light distribution(Ta=25℃±3℃ Unit: cd)

Diagram of degradation for Luminous:

Comparison of Lifetime:

LED Flood light dimension (mm)

Package:

Installation Instruction:

1. Cut two hole that the distance and the size like "A" in the framework. Lock the floodlight with bolt and nut;

2. Rotating the light body to adjust the required cast light angle, install the hex-head screws tight;

3. Put the brown lines and blue lines connect to the "L" and "N", Yellow-green wire connected to ground line;

4. Connect the power before confirm connection is correct.

Notices:

• 1. Open the packaging, check the products carefully, and take them gently.
• 2. The wire must be passed 3C certification of three core cable, To reduce the risk of fire hazard.
• 3. It must be three-core cable connecting the floodlight, The brown line is used to connect the live wire, the blue line to the neutral wire, yellow-green line is the ground wire, Must pay attention to the wiring, don't take the wrong wire.
• 4. Wire copper is not exposed outside of the power terminal holes, To avoid a short circuit or get electrocuted.
• 5. Installation and removal products, please disconnect the light's power to avoid the risk of electric shock.

Applications:

Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
