CA-3169B 2.1 Channel Audio Power Amplifier Board with High Fidelity Sound and Bluetooth 5.0
CA-3169B 2.1 Channel Audio Power Amplifier Board with High Fidelity Sound and Bluetooth 5.0
CA-3169B 2.1 Channel Audio Power Amplifier Board with High Fidelity Sound and Bluetooth 5.0
CA-3169B 2.1 Channel Audio Power Amplifier Board with High Fidelity Sound and Bluetooth 5.0
CA-3169B 2.1 Channel Audio Power Amplifier Board with High Fidelity Sound and Bluetooth 5.0
CA-3169B 2.1 Channel Audio Power Amplifier Board with High Fidelity Sound and Bluetooth 5.0
CA-3169B 2.1 Channel Audio Power Amplifier Board with High Fidelity Sound and Bluetooth 5.0
CA-3169B 2.1 Channel Audio Power Amplifier Board with High Fidelity Sound and Bluetooth 5.0
Specifications
Brand Name :
CreatAll
Model Number :
CA-3169B
Certification :
CE
Place of Origin :
Shenzhen China
MOQ :
3pcs
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 Piece/Pieces per Day
Delivery Time :
3-7 work days
Model :
CA-3169B
Brand :
Creatall
Output Power :
2*50W+100W
Input Voltage: Dual DC Power Supply :
DC12~24V
left and right channel speakers :
4~8ohm
Frequency response range :
20Hz-20KHz
subwoofer speaker impedance :
2-8 ohm
Audio input sensitivity :
600-800mV
Bluetooth receiving distance :
> 8 m (meters)
Description
CA-3169B 2.1 Channel Audio 5.0 HIFI Power Subwoofer Stereo Equalizer High Fidelity Sound Power Amplifier Board
Product Overview

This is a DC-powered 2.1 channel audio amplifier board featuring TI's TPA3116D2 high-performance digital power amplifier chip. It supports 100W bass channel plus 50W left and 50W right channel outputs with Bluetooth 5.0 audio reception capability.

Key Features
  • DC-powered 12-24V power supply using TI's TPA3116D2 digital power amplifier chip
  • Parallel bridged bass channel (100W) plus left and right channel (50W each) outputs
  • Bluetooth 5.0 audio reception with external audio input interface
  • Built-in preamplifier with bass crossover processing

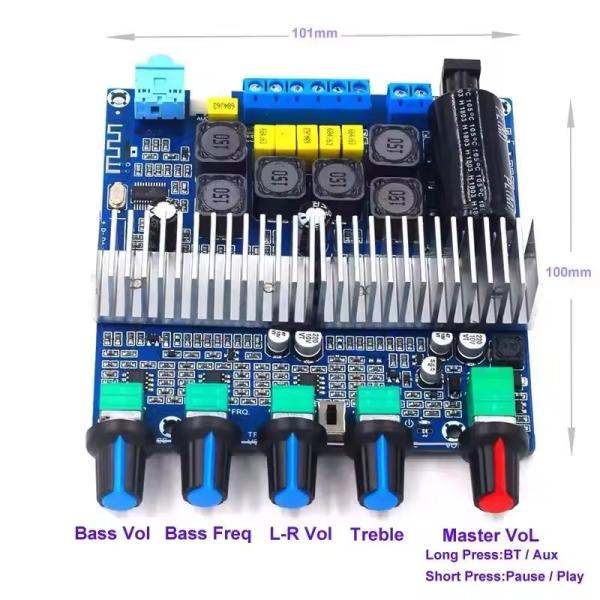

  • Five adjustment potentiometers for bass volume, bass frequency, channel volume, treble, and function control
  • Wide working voltage with energy-saving design (up to 90% efficiency)
  • Compatible with switching power supplies, laptop adapters, car power supplies, and charging batteries
  • Pre-soldered and tested finished board ready for installation
  • Subwoofer cut-off frequency: 26-160Hz
Technical Specifications
Dimensions (L × W × H) 101 × 100 × 25mm (excluding potentiometer and socket projection)
Operating Voltage Range DC 12-25V (current 3-4A, or 19-24V/4-5A, high power requirements 20-24V/8-9A above)
Recommended: DC24V 4A power supply
Note: DC no-load voltage should not exceed 25.5V
Bluetooth Receiving Distance > 8 meters
Audio Input Sensitivity 600-800mV
Frequency Response Range 20Hz-20KHz
Speaker Impedance Left/right channel: 4-8 ohm
Subwoofer: 2-8 ohm
Function Switch Instructions (Bluetooth Version)
  • Plug in power - defaults to Bluetooth mode
  • Bluetooth disconnected - long press switch to switch to audio input mode
  • Bluetooth playing - short press switch to pause/play
Package Contents
  • 1 × TPA3116 Power Amplifier Board
Troubleshooting & FAQs
Amplifier board has current sound and noise during use
Most amplifier boards using DC power supply do not produce current sound and noise. Main causes:
  • Poor power supply filtering or incorrect power/audio input
  • Poor input signal quality or abnormal audio source input
  • Poor quality input cables, poor connections, damaged wiring, or suspended wiring
  • Other playback devices in input connection or shared power supply causing noise
No sound output or no sound in one channel
  • Speaker damage or poor speaker cable connection
  • Poor input cable connection, damaged wiring, or improper output from connected device
Volume broken and breaking sound when turned loud
  • Insufficient power input - confirm correct wiring and adequate supply current
  • Poor speaker performance or damage, speaker power too small or too large
  • Left and right channel speakers (+) (-) outputs are independent and cannot be connected to each other
Speaker broken sound when subwoofer amplifier volume turned loud
  • Insufficient power input - confirm correct wiring and adequate supply current
  • Speaker power too large or too small, poor bass performance, or speaker box structure abnormalities
Volume power not enough
Power is related to power supply voltage, sound source signal amplitude, and speaker impedance size. Any deficiency will affect power output.
Will the amplifier be burnt?
  • Power supply positive/negative poles connected reversely
  • Power supply voltage too high, exceeding board's limit operating voltage
  • Connecting AC transformer power supply directly (must be rectified to DC first)
  • Incorrect wiring or short circuits causing damage to key components
