TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
Specifications
Packaging Type :
standard
Application :
TDA7297 amplifier audio board
Type :
TDA7297 amplifier audio board, Audio Amplifiers
Series :
TDA7297 amplifier audio board
Features :
TDA7297 amplifier audio board
Mounting Type :
standard
Description :
TDA7297 amplifier audio board
Manufacturing Date Code :
TDA7297 amplifier audio board
Place of Origin :
Guangdong, China
Brand Name :
original
Model Number :
CA-7297
Manufacturer :
creatall
Output Type :
standard
MOQ :
100 pieces
Price :
$2.20/pieces 100-499 pieces
Description
TDA7297 12V Double Channel Power Amplifier Audio Board
Support Custom Development module XH-A271 15W+15W Double channel power amplifier module audio amplifier module TDA7297 with audio and noise-free design.
Product Specifications
Parameter Specification
Output Power 15W+15W
Channel Type 2.0 Stereo
Power Input DC 8-18V/2000mA
Frequency Response 20Hz-20 KHz

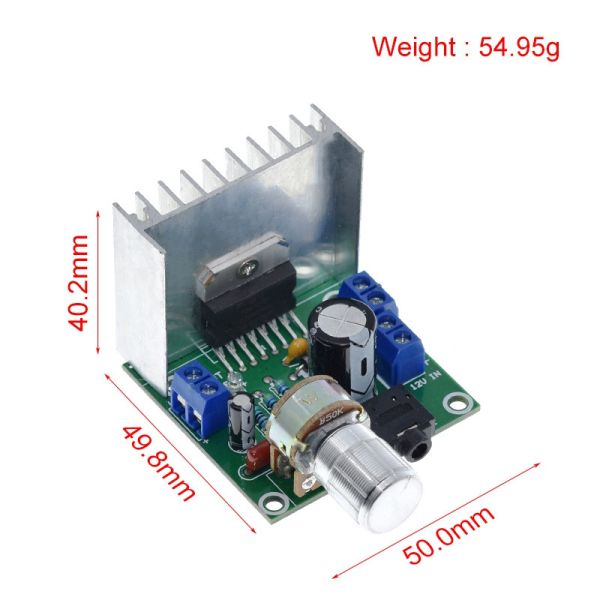

Dimensions 52×48×40mm
Weight 55g
Matching Speaker 4-8Ω 10-80W 3-8 inch speaker
Application Scope Bookshelf speaker, CRT TV, radio, small power player, etc.
Usage Instructions
1. Connect the Speaker
Connect the speaker wires to the audio output ports: left channel to LOUT, right channel to ROUT. Positive pole to +, negative pole to -.
2. Connect Audio Sources
Use a 3.5mm stereo audio cable to connect the amplifier board to your audio source (computer, mobile phone, MP3, DVD).
3. Connect Power Supply
Option 1 - Power Adapter: Use a DC 12V2A or higher power adapter. Connect positive to + port, negative to - port.
Option 2 - Transformer: Use an AC 12V2A or higher transformer. Connect output wires to 12V port (no polarity for AC).
4. Play Music
Plug in power supply - blue LED indicator will light up. Adjust volume knob to your preference.
Product Features
  • 2200μF filter capacitor provides abundant energy for post-stage power amplifier
  • BTL output circuit with original ST TDA7297 power amplifier IC
  • Blue LED power indicator for real-time monitoring
  • 3.5mm universal stereo socket for easy connection to mobile devices
  • Screw terminal blocks for easy wiring without soldering
  • Excellent sound quality: powerful bass, beautiful midrange, clear treble

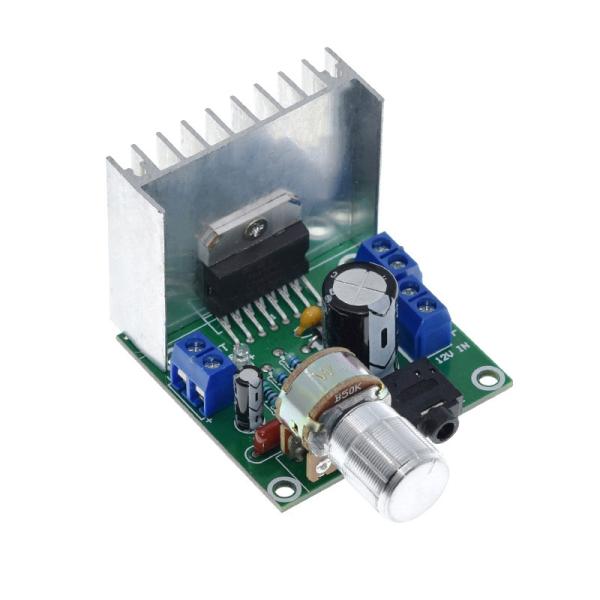

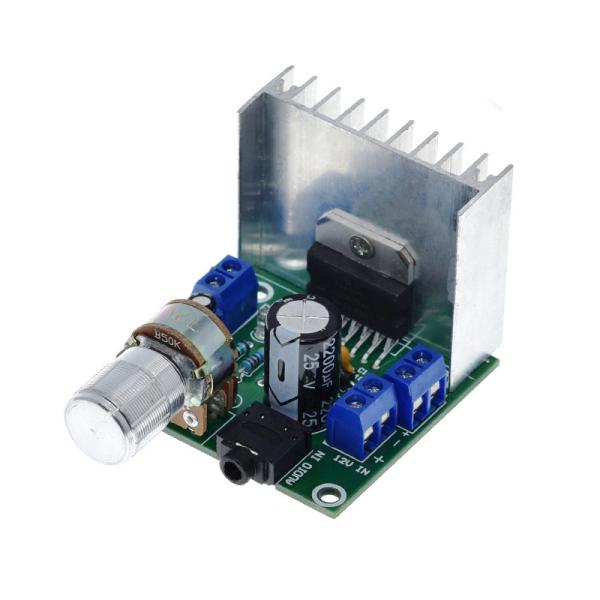

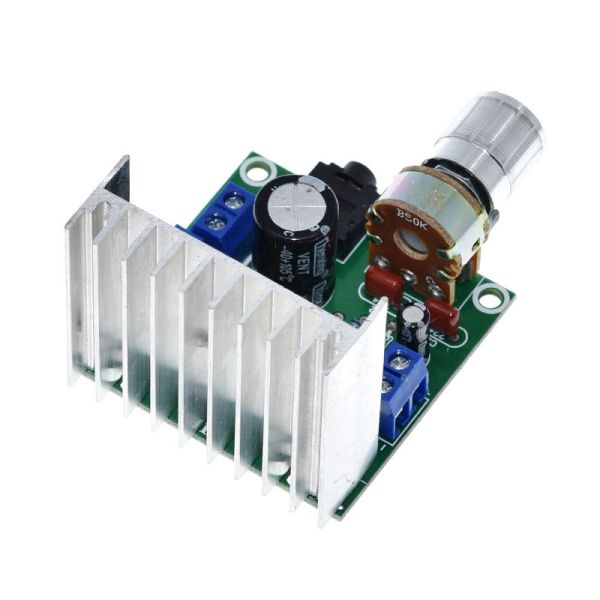

Product Images
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
Contact Information
Wechat: alvacheng88
Mobile: +86-13689587416
Skype: alvacheng1
Email: leo@creatall.com
Company Profile
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
Certificates & Production Processes
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
Packing & Delivery
  • Normal packaging
  • Export carton
  • Custom packing available
  • All orders shipped within 3-25 days after payment confirmation
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
Payment & Shipping
PAYMENT: Standard terms: 30% deposit, 70% balance before shipment. Accept T/T, PayPal, Western Union, online trade assurance.
SHIPPING: 100% strict inspection before shipment. One-week replacement for defective goods. One-year warranty included.
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
Customer Reviews
Excellent feedback from customers with 5-star ratings, proving our high quality products and professional services.
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
Contact Us
TDA7297 12V Double Channel Power Amplifier Board with 15W+15W Output and Noise-Free Design
Frequently Asked Questions
Q: What is the minimum order quantity?
A: Contact us for small order requirements.
Q: How long is your delivery time?
A: Products shipped within 3 days after payment, delivery time 3-6 days.
Q: Do you test all items before delivery?
A: Yes, all items are tested and checked before shipment.
Q: What is your warranty?
A: 60 days after receiving goods. Products are 100% tested. Report defects within 3 days of delivery.
Q: How do I pay for the order?
A: We accept wire transfer, Western Union, PayPal, MoneyGram, escrow. Contact for other methods.
