8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
Specifications
MOQ :
30
Price :
$3.38-4.46
Model Number :
8S 15A 20A 25A
Brand Name :
Creatall
Place of Origin :
Guangdong, China
Base Material :
pcb
Description
Contact Us
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
Products Description

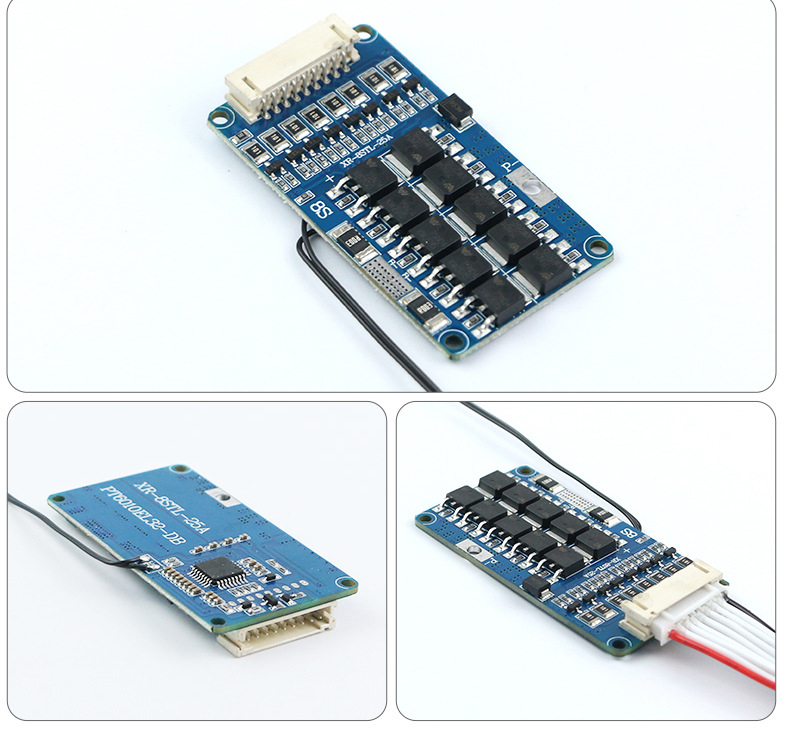

8 series lithium iron phosphate battery protection board 24V15A 20A 25A balanced power tools electric wheelchair protection board
Wiring mode: same port Over-discharge protection voltage: 2.7V ± 0.08V Over-discharge recovery voltage: 2.5V ± 0.08V Continuous operating current: 15A/20A/25A Instantaneous protection current: 15A=45A 20A=55A 25A=65A Overcurrent Recovery Condition: Charge recovery or load disconnection Short-circuit recovery condition: charging recovery or disconnecting the load Overcharge protection voltage: 3.75V ± 0.025V Overcharge recovery voltage: 3.55V ± 0.025V Continuous charging current: 15A = 15A 20A=20A 25A=25A Charging equalisation voltage: 3.75V ± 0.025V Charge equalisation current: 40ma max Charger voltage: 30V recommended The first PACK two activation methods: (a) B- and P- wire short circuit times can be (B) or charging can be activated. Charging over-temperature protection: -2°C to +80°C Discharge over-temperature protection: -30°C to +70°C Operating power consumption: ≤40uA Main circuit on-resistance: ≤15mΩ Operating temperature: -40°C to +80°C Disconnection protection: Yes Same port wiring: B-connect to negative battery terminal P-connect to negative charge/discharge terminal Wire size: 2.0MM spacing/9 wires/40CM length Product appearance size: 60*33*10MM
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
Certificates & Production Processes
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
8 Series Lithium Iron Phosphate Battery Protection Board 24V15A20A25A Balanced Power Tools Electric Wheelchair PCB Board
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
