CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
Specifications
Brand Name :
creatall
Copper Thickness :
pcb&pcba
Place of Origin :
Guangdong, China
Model Number :
BMS battery protection board
Name :
6s 12A Battery Bms
Base Material :
pcb&pcba
Board Thickness :
pcb&pcba
MOQ :
100
Price :
$0.85-1.10
Description
Contact Us
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
Products Description

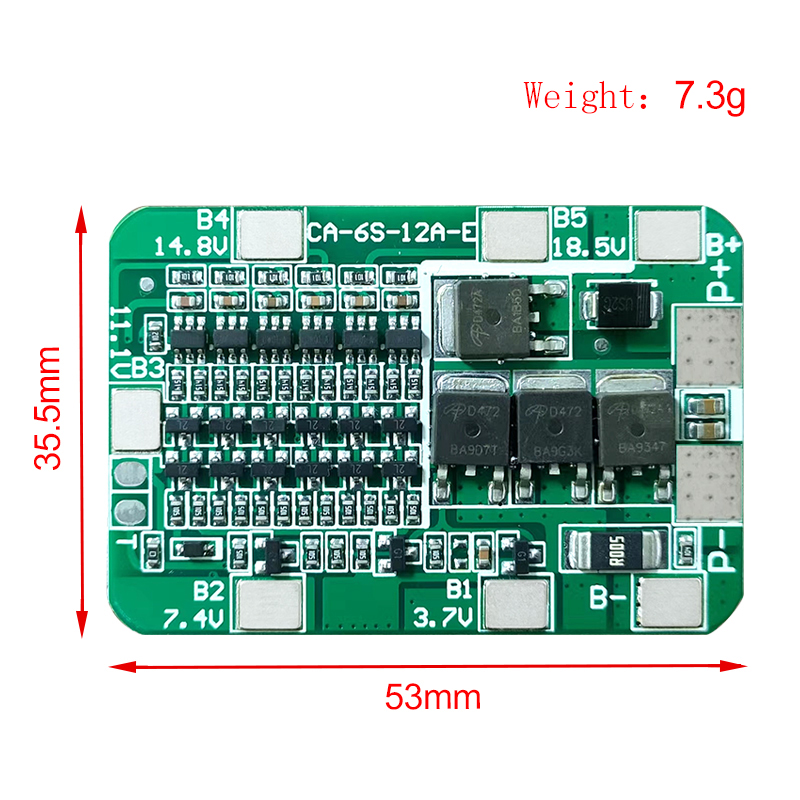

6S 12A 24V PCB BMS Protection Board For 6 Pack 18650 Li-ion Lithium Battery Cell Module Specification: Brand new Size: approx.50*30*2mm Lampshift maximum discharge current: 12A Instantaneous discharge current: 25A Charging voltage: 25.5V Charging current: 15A (MAX) Overcharge detection voltage: 4.28 ± 0.05V Overcharge protection delay: 0.1S Overcharge release voltage: 4.08 ± 0.05V Over discharge detection voltage: 2.55 ± 0.08V Overdischarge detection delay: 0.1S The overdischarge release voltage: 2.9 ± 0.1V Overcurrent detection voltage: 150mV Overcurrent detection delay: 9MS Overcurrent protection current: 30 ± 3A Overcurrent protection release condition: Disconnect the load Short circuit detection delay: 250uS Short circuit protection Release condition: disconnect negative open Main circuit conduction resistance: ≤20mΩ Working current: ≤30uA Sleep current (battery over discharge) ≤10uA Temperature range: -30 / + 80 ° Feature: Fine workmanship and durable. For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium battery (rechargeable type) so need protection. As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse. Note: Please allow 1-5mm errors due to manual measurement. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same. Package included: 1 * 6S 15A Lithium protection board
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
Certificates & Production Processes
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
CA-6S-12A-E 24V PCB BMS Protection Board Designed for 6 Pack 18650 Li-ion Lithium Battery Cell Module
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
