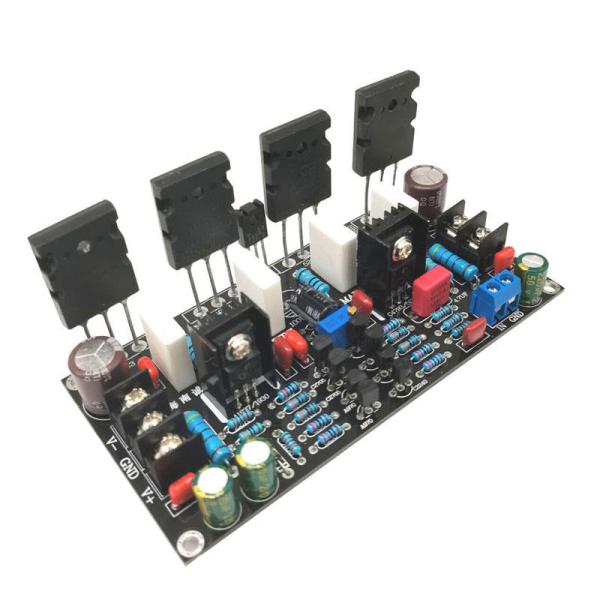

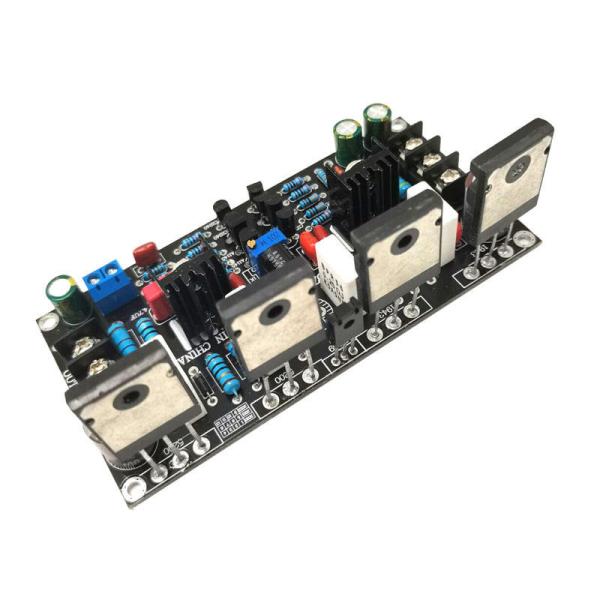

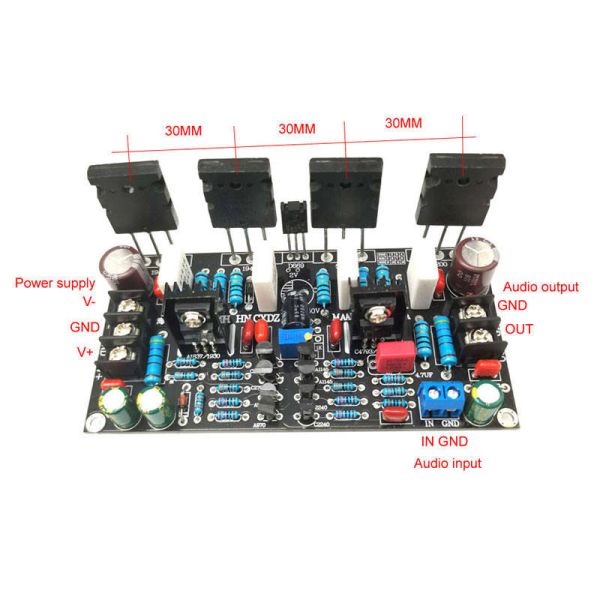

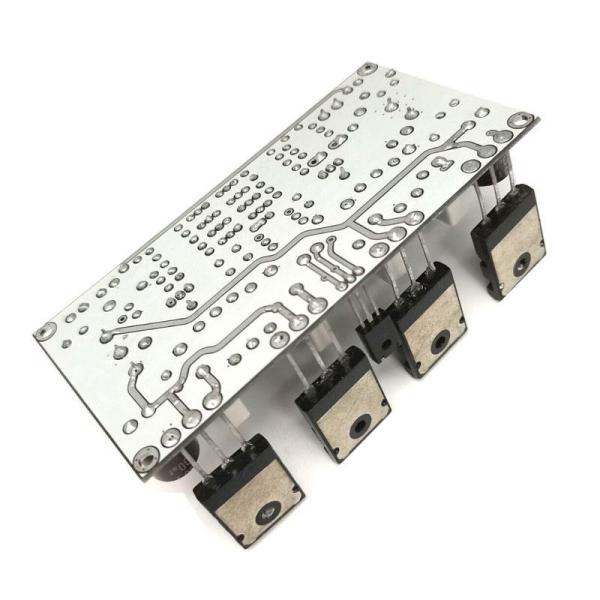

200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
200W Mono Power Amplifier Board with A1943/C5200 High Power Tube and Wide Power Supply Range
Specifications
Brand Name :
creatall
Model Number :
200W Mono Power Amplifier
Place of Origin :
China
MOQ :
10pcs
Price :
NA
Payment Terms :
T/T, AliPay, PayPal
Supply Ability :
1000 pcs/day
Delivery Time :
5-8 working days
Packaging Details :
Carton box
name :
200W Mono Power Amplifier
size :
120 x 60 x 45MM
Material :
abs
Real power :
undistorted power 200W, maximum power 300W.
Description
ABS 200W Power Mono Amplifier Board 1943 + 5200 High Power Tube Amp
Product Overview
This single-channel power amplifier board features advanced circuit design with A970/C2240 high-voltage audio pair tube dual differential circuitry and A1145/C2705 for voltage amplification. The output stage utilizes A1943/C5200 high-power Toshiba pair tubes for exceptional performance.
Key Performance: Undistorted power 200W, maximum power 300W with wide power supply range (DC ±20V-90V). Delivers excellent sound quality with strong driving capability, capable of powering 15-inch speakers effortlessly.
Technical Specifications
Product Name Amplifier Audio Module
Product Model 200W Mono Power Amplifier
Product Size 120 x 60 x 45mm
Material ABS
Color Black
Power Supply Dual voltage, DC ±20-90V (recommended below 90V)
Circuit Design Features
  • A970/C2240 high-voltage audio pair tube dual differential circuit
  • A1145/C2705 for voltage amplification
  • Mid-power pair tube A1837/C4793
  • Output stage uses A1943/C5200 high-power Toshiba pair tube
  • Optimized circuit and components in upgraded version
Packaging & Shipping
The Amplifier Audio Module is shipped in secure, durable packaging designed to protect against external damage and shock during transportation. Shipping options include ground or air transport based on customer preference, with costs calculated according to weight and distance.
