Specifications
Brand Name :
creatall
Model Number :
D100W
Place of Origin :
China
Price :
Manufacturer
Name: :
Power Amplifier Board
Material: :
Iron
bluetooth music: :
support
FM radio: :
support
Channel: :
Mono Stereo
Microphone: :
support
bluetooth version: :
5.0
Audio channel: :
1.0
Rated resistance: :
4-8Ω
Signal-to-noise ratio: :
92dB
MOQ :
10pcs
Description

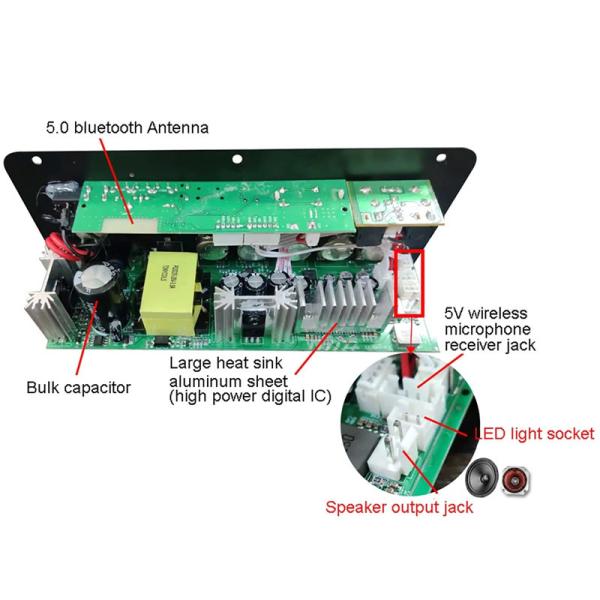

D100W Bluetooth 5.0 Power Amplifier Board
Product Overview

AC 220V DC 12-24V 5V Wireless Module suitable for 8-12 inch speakers. This versatile amplifier board supports multiple input sources including Bluetooth, AUX, USB, and TF card.

Model D10/D20/D100W
Material Iron
Bluetooth Version 5.0
Audio Channel 1.0
Rated Resistance 4-8Ω
Power Specifications D10: 30W Rated (30-120W Range)
D20: 60W Rated (60-200W Range)
D100: 100W Rated (100-300W Range)
Distortion 0.03%
Signal-to-Noise Ratio 92dB
Voltage AC110V / AC 220V, DC 12V ~ 24V
Input Options Bluetooth / 3.5mm AUX / USB / TF Card / 6.5mm MIC
Key Features
  • Supports reading and playing MP3 songs from TF card and USB drive
  • Self-adjusting treble, bass and master volume controls
  • AUX audio input for connecting to PC, phone, TV or DVD
  • Dual microphone input with adjustable reverb
  • Bluetooth music streaming and FM radio functionality
  • Compatible with wired and wireless microphone boards (sold separately)
Package Contents
  • 1 × Amplifier board
  • 1 × Remote control (battery not included)
  • 1 × Speaker wire
  • 1 × DC plug
  • 1 × Power cord

Remote Control Battery: CR2025 ×1 (not included)

Important Notes

1. Due to manual measurements and slight color variations, please allow 1-3 cm (0.4-1.18 inches) difference to suit different display settings.

2. Due to light and screen differences, the item's color may be slightly different from the pictures.
